10W 50ohm DC-6GHz RF Terminator TNC Male Termination Dummy Load

Featrues:

  • DC to 18 GHz Frequency Range;
  • VSWR 1.4:1 Max;
  •  Max Power 10 Watt (CW);
  • TNC Male Coaxial Interface.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

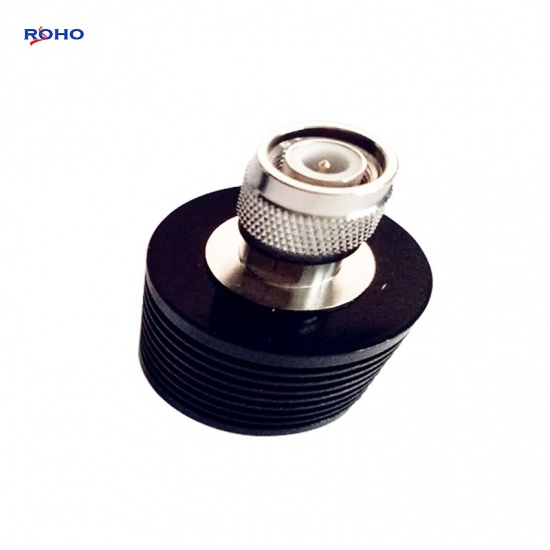

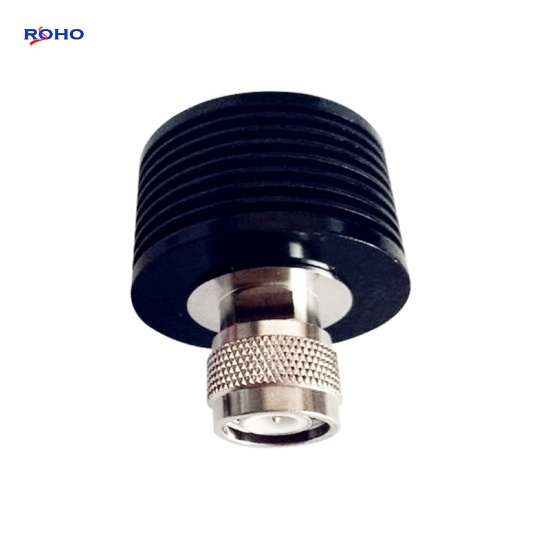

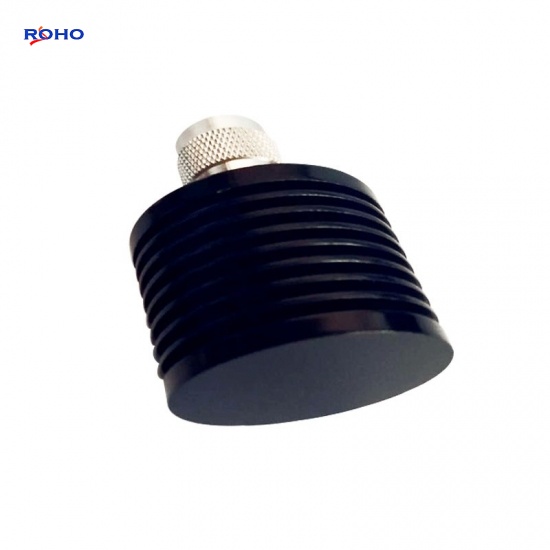

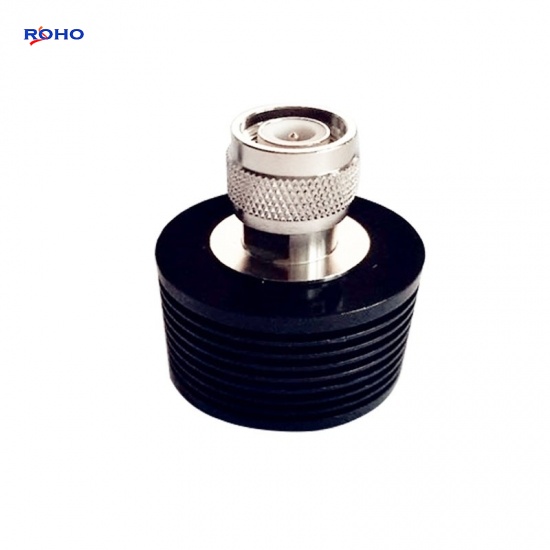

10W 50ohm DC-6GHz RF Terminator TNC Male Termination Dummy Load



The 10W TNC dummy load (also known as 10W TNC termination or 10W TNC RF load) has a TNC connector that is male. This 10W TNC male load / termination is rated for a maximum frequency of 18 GHz. ROHO's TNC male termination load is a rf load termination with a 50ohm impedance, and has an average maximum VSWR of 1.4:1.



Specifications

ELECTRICAL DATA
Frequency DC~6GHz/18GHz
Connector TNC Male
VSWR ≤1.4
Power 10W
Impedance 50Ω
Temperature Range -55℃~+125℃
MATERIAL DATA
Connector body Brass,Plating Ni
Insulator  PTFE
Inner Conductor  Phosphor Bronze ,Plating Au
Housing  Aluminum,Black



Applications

  • Measurement systems
  • Multi-port microwave device
  • Directional couplers
  • Isolators
