BNC Terminators

1W DC-3GHz RF Coaxial Termination with BNC Male Connector

Features：

Low VSWR & Low Attenuation ;
3G/4G/5G LTE Coverage;
Indoor & Outddoor applicationn;
Wide Frequency Band ;
Widely used for in-building Soloution;
All Sepcifications can be changed as you enquirements.

Brand:
ROHO
Product Origin:
China
Shipping Port:
Shenzhen
Lead Time:
7-17days

Inquiry Now

Product Detail

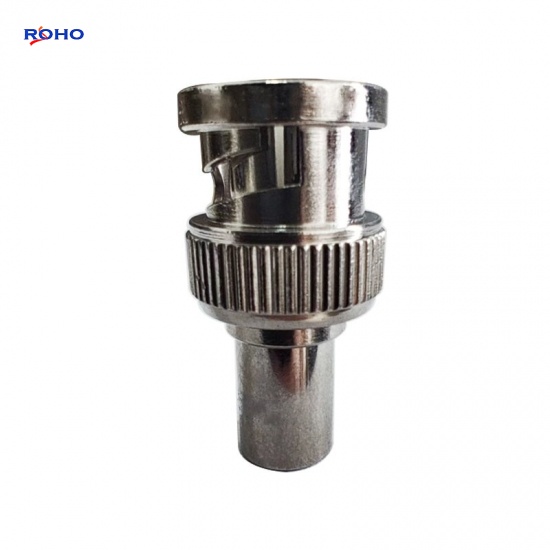

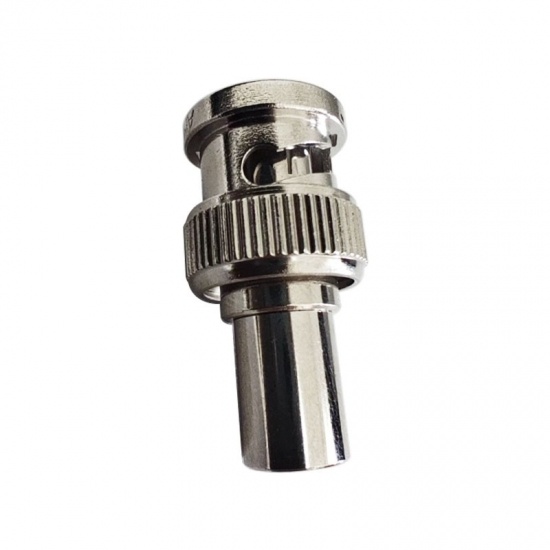

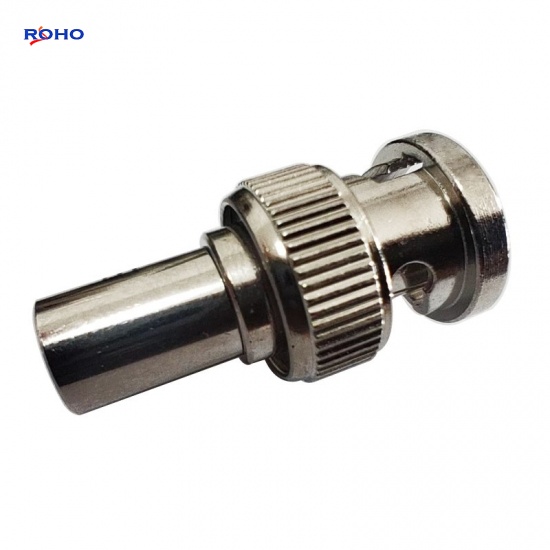

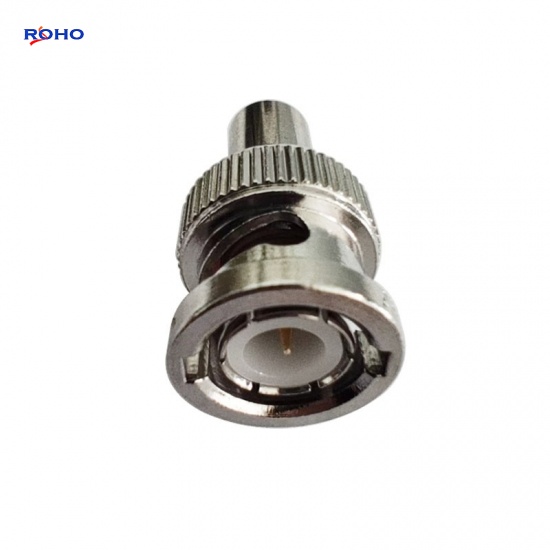

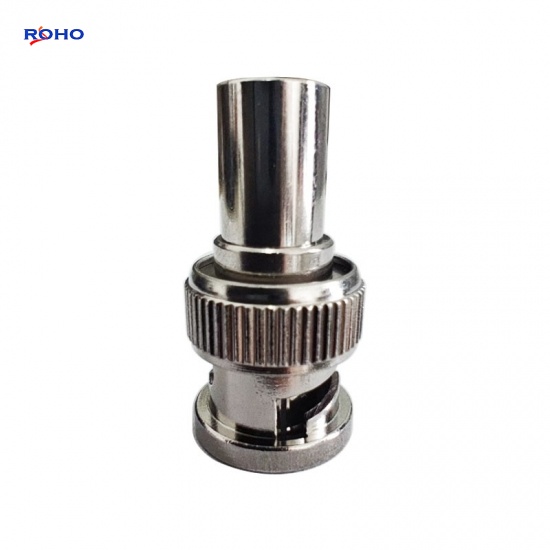

1W DC-3GHz RF Coaxial Termination with BNC Male Connector

The 1W BNC dummy load (also known as 1W BNC termination or 1W BNC RF load ) has a BNC connector that is male. This 1W BNC male load / termination is rated for a maximum frequency of 3GHz. ROHO's BNC male termination load is a rf load termination with a 50ohm impedance; The BNC male load termination is one of RF, microwave and millimeter wave components,ROHO also could do DIN-Male, SMA-Male, DIN-Female, N-Female or other Connector for this product.

Specifications

ELECTRICAL DATA
Frequency	DC~3GHz
Connector	BNC Male
VSWR	≤1.3
Power	1W
Impedance	50Ω
Temperature Range	-55℃～+125℃
MATERIAL DATA
Connector body	Brass,Plating Ni or Tri-Metal
Insulator	PTFE
Inner Conductor	Phosphor Bronze ,Plating Au

Applications

Measurement systems
Multi-port microwave device
Directional couplers
Isolators
