BNC Terminators

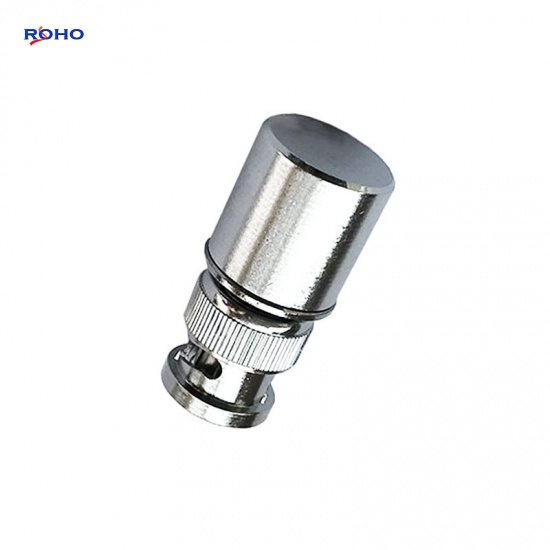

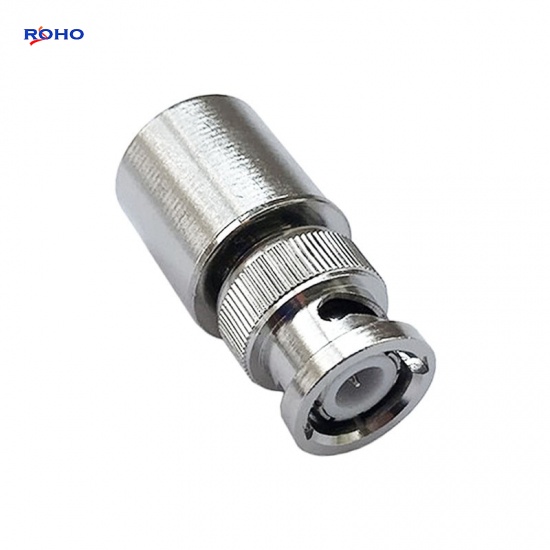

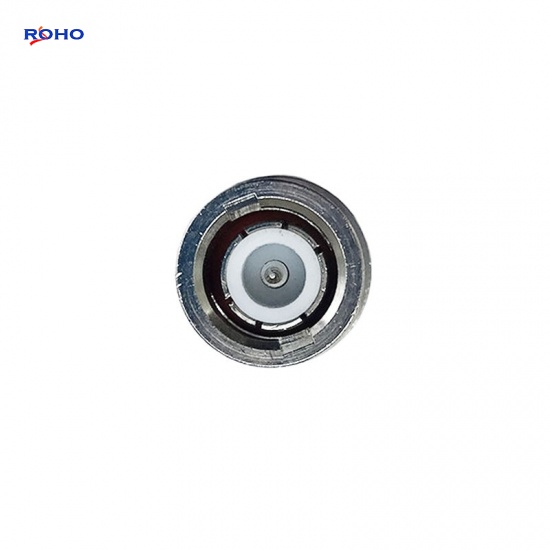

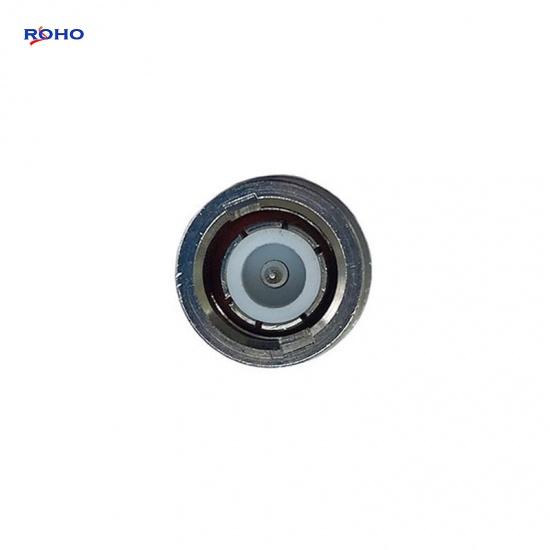

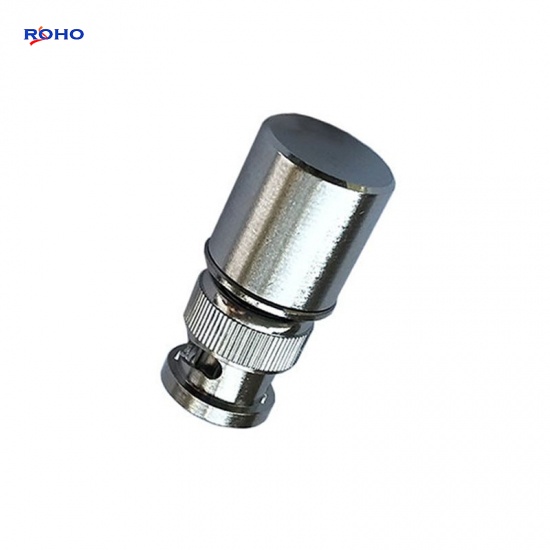

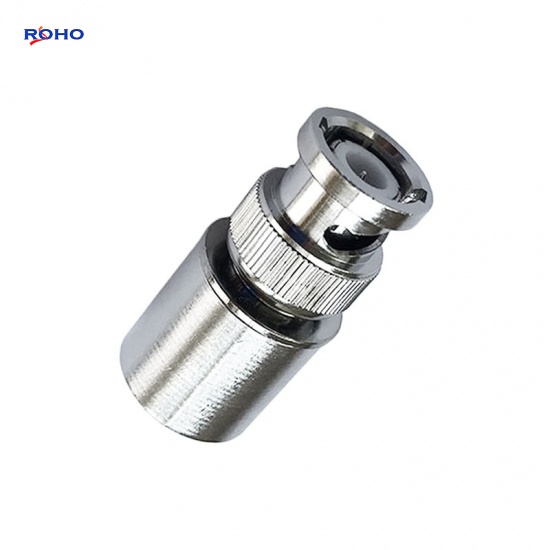

2W 50ohm DC-3GHz RF Terminator BNC Male Termination Dummy Load

 Features:

  • Low VSWR & Low Attenuation ;
  • 3G/4G/5G LTE Coverage;
  • Indoor & Outddoor applicationn;
  • Wide Frequency Band ;
  • Widely used for in-building Soloution;
  • All Sepcifications can be changed as you enquirements.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

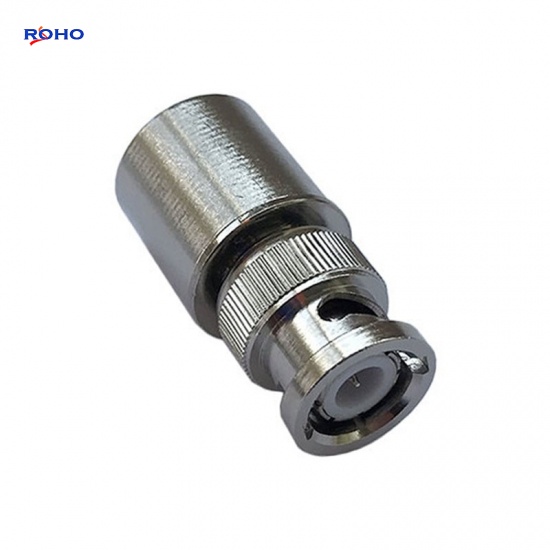

2W 50ohm DC-3GHz RF Terminator BNC Male Termination Dummy Load



The 2W BNC dummy load (also known as  2W BNC termination or 2W BNC RF load ) has a BNC connector that is male. This 2W BNC male load / termination is rated for a maximum frequency of 3GHz. ROHO's BNC male termination load is a rf load termination with a 50ohm impedance; The BNC male load termination is one of RF, microwave and millimeter wave components,ROHO also could do DIN-Male, SMA-Male, DIN-Female, N-Female or other Connector for this product.



Specifications

ELECTRICAL DATA
Frequency DC~3GHz
Connector BNC Male
VSWR ≤1.3
Power 2W
Impedance 50Ω
Temperature Range -55℃~+125℃
MATERIAL DATA
Connector body Brass,Plating Ni or Tri-Metal
Insulator  PTFE
Inner Conductor  Phosphor Bronze ,Plating Au



Applications

  • Measurement systems
  • Multi-port microwave device
  • Directional couplers
  • Isolators

Leave A Message
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Categories
Related Products
5W BNC Male Termination Dummy Load
5W BNC Male Termination Load DC-3GHz RF Coaxial Dummy Load Termination Power
 Features: Low VSWR & Low Attenuation ; 3G/4G/5G LTE Coverage; Indoor & Outddoor applicationn; Wide Frequency Band ; Widely used for in-building Soloution; All Sepcifications can be changed as you enquirements.

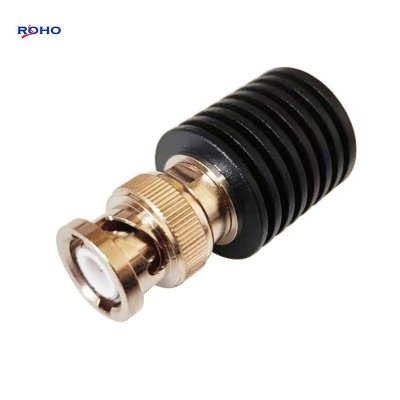

10W BNC Male Termination Dummy Load
