BNC Terminators

10W BNC Male Connector RF Termination Loads DC-3GHz RF Dummy Load

 Features:

  • Low VSWR & Low Attenuation ;
  • 3G/4G/5G LTE Coverage;
  • Indoor & Outddoor applicationn;
  • Wide Frequency Band ;
  • Widely used for in-building Soloution;
  • All Sepcifications can be changed as you enquirements.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

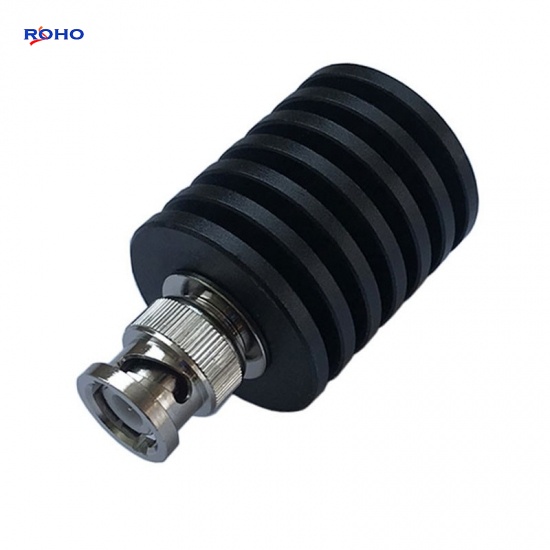

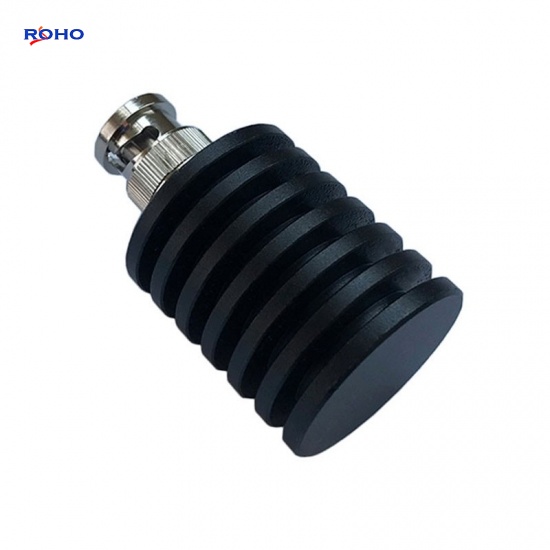

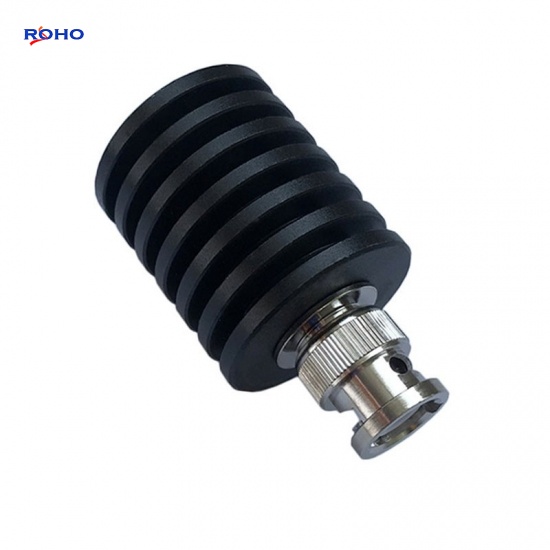

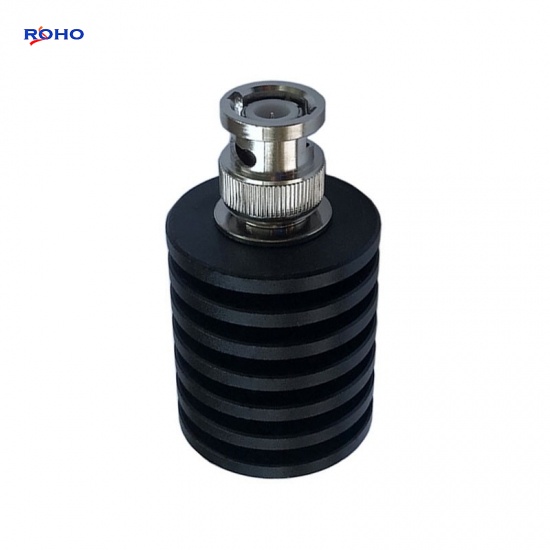

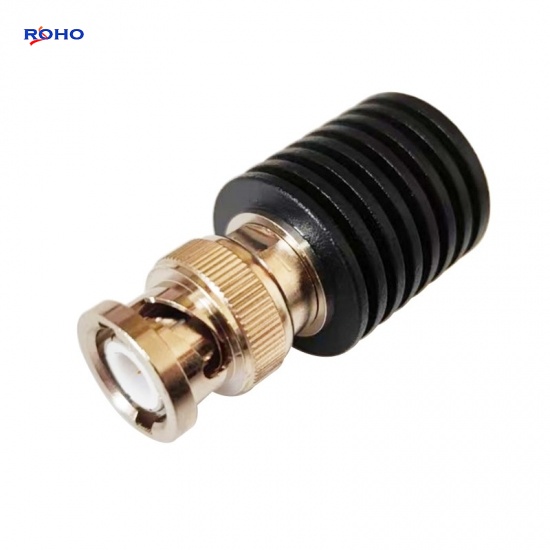

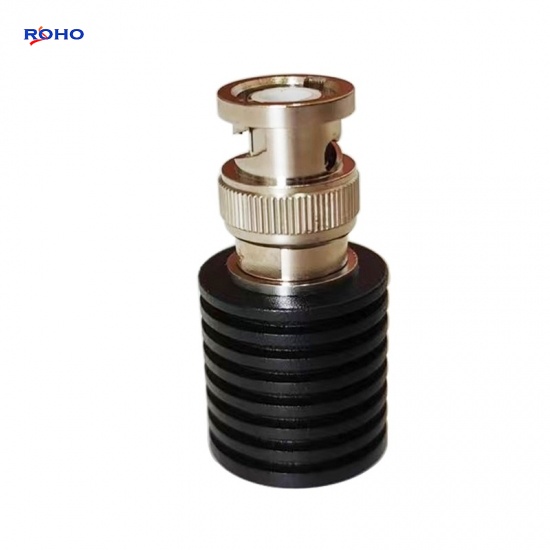

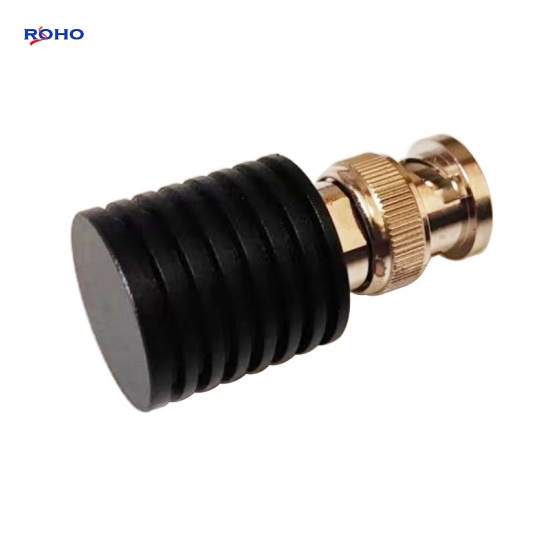

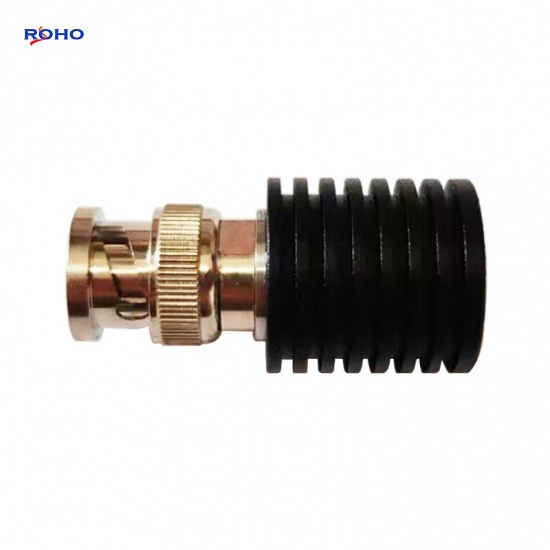

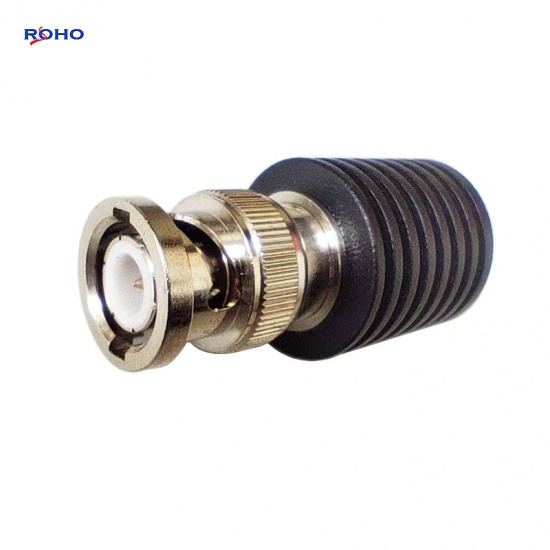

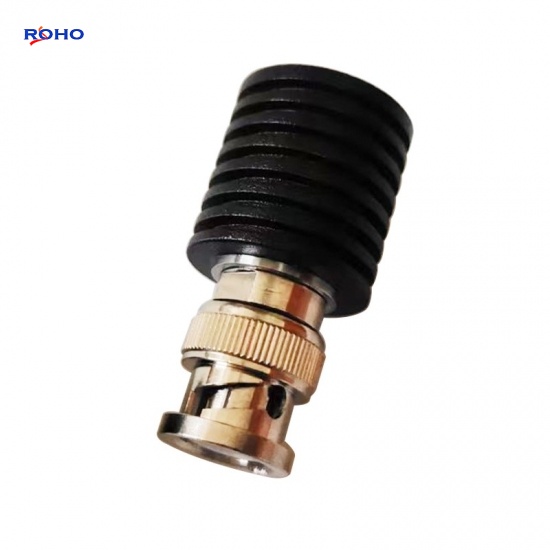

10W BNC Male Connector RF Termination Loads DC-3GHz RF Dummy Load



The 10W BNC dummy load (also known as  10W BNC termination or 5W BNC RF load ) has a BNC connector that is male. This 10W BNC male load / termination is rated for a maximum frequency of 3GHz. ROHO's BNC male termination load is a rf load termination with a 50ohm impedance; The BNC male load termination is one of RF, microwave and millimeter wave components,ROHO also could do DIN-Male, SMA-Male, DIN-Female, N-Female or other Connector for this product.



Specifications

ELECTRICAL DATA
Frequency DC~3GHz
Connector BNC Male
VSWR ≤1.2
Power 10W
Impedance 50Ω
Temperature Range -55℃~+125℃
MATERIAL DATA
Connector body Brass,Plating Ni
Insulator  PTFE
Inner Conductor  Phosphor Bronze ,Plating Au
Housing  Aluminum,Black



Applications

  • Measurement systems
  • Multi-port microwave device
  • Directional couplers
  • Isolators
