4.3-10 Female to 4.3-10 Female Bulkhead RF Adapter

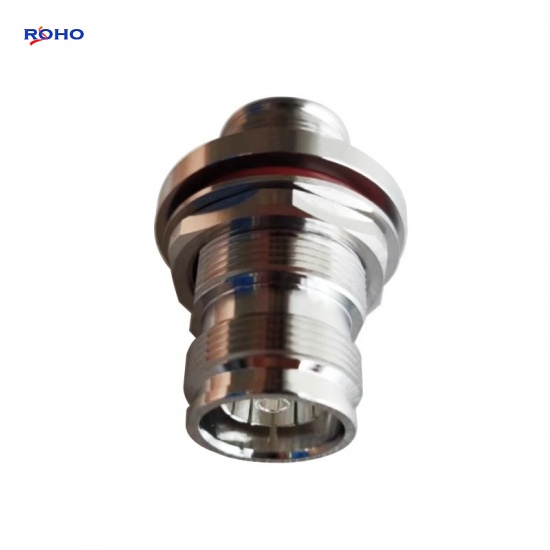

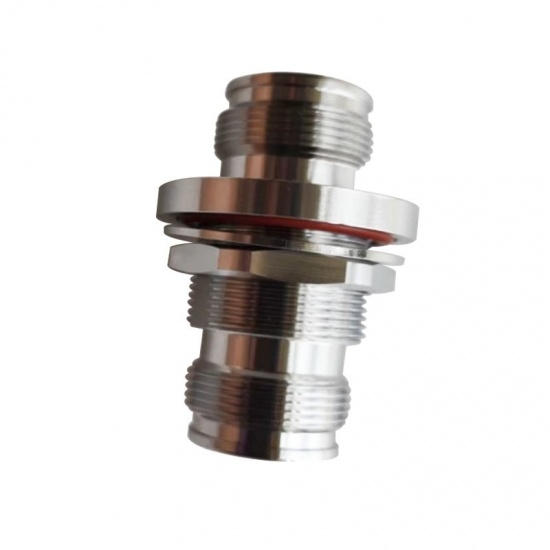

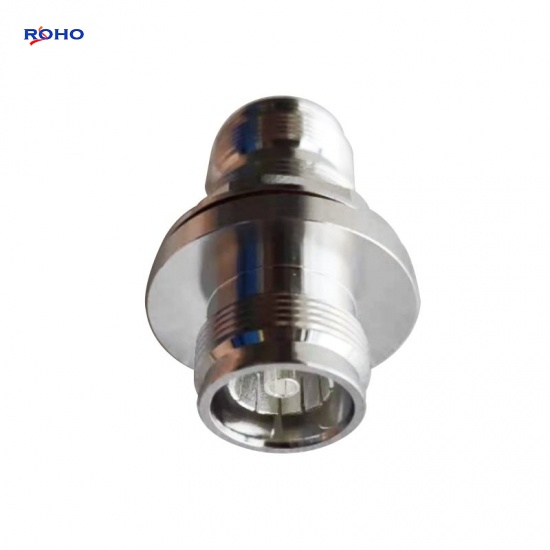

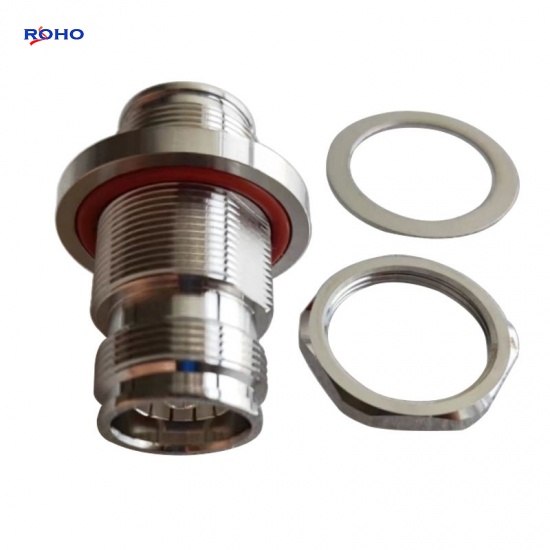

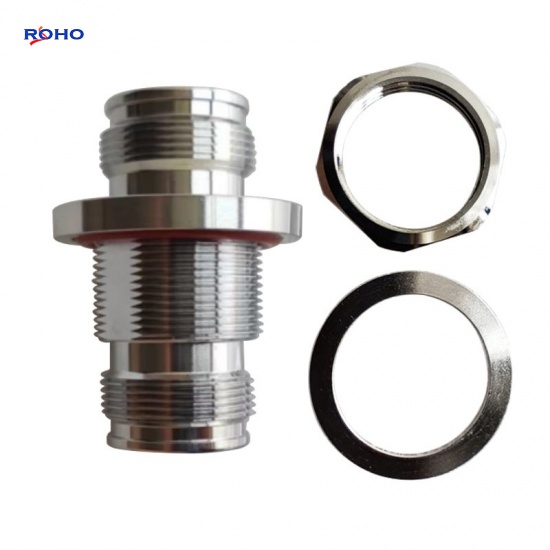

4.3-10 Female to 4.3-10 Female Straight Bulkhead Mount RF Connector Adapter

4.3-10 adapters Features：

Allow to interface 4.3-10 connectors with N, 7/16 DIN, 4.3-10 or SMA connectors;
Same design as 7/16 connectors , smaller up to 40% lighter;
Designs IP67, and provide excellent VSWR performance up to 6GHz;
Very stable PIM performance, allowing for easier installation;
Silver plated contacts and White Bronze plated bodies offer a high-degree of conductivity, corrosion resistance, and durability;
Applications low passive intermodulation or PIM.

Brand:
ROHO
Product Origin:
China
Shipping Port:
Shenzhen
Lead Time:
7-17days

Inquiry Now

Product Detail

4.3-10 Female to 4.3-10 Female Straight Bulkhead Mount RF Connector Adapter

The 4.3-10 Adapter has different 4.3-10 to 4.3-10 adapter gender.The 4.3-10 to 4.3-10 adapters has female to female, male to female or male to male gender. it has straight or right angle body. ROHO offers 4.3-10 to 4.3-10 adapters in standard or low PIM designs. This 4.3-10 female to 4.3-10 female adapter has a maximum frequency of 6GHz, and is a straight body adapter.

Specifications

ELECTRICAL DATA
Adapter Side 1 Series	4.3-10
Adapter Side 1 Style	Female
Adapter Side 2 Series	4.3-10
Adapter Side 2 Style	Female
Frequency (Max GHz)	6
Impedance (Ohms)	50
Low PIM	Yes
Orientation	Straight
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
MATERIAL DATA
Body Material	Brass
Body Finish	Nickel/Ternary alloy
Contact Material	Phosphor Bronze/Beryllium Copper
Contact Finish	Gold/Silver
Insulator Material	PTFE

Applications

Telecommunication installations
Mobile radio
Communication engineering
Radar applications
