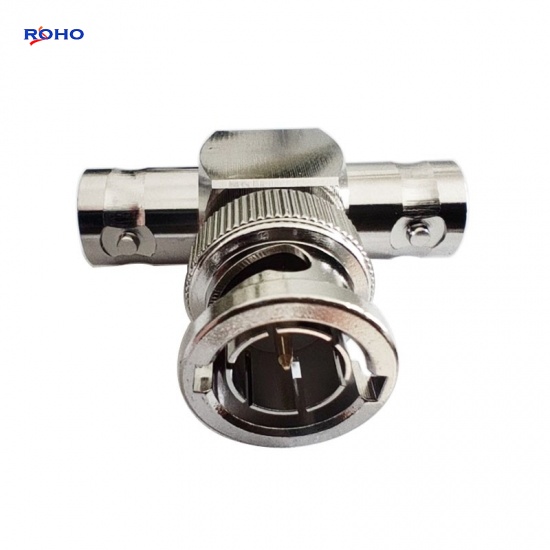

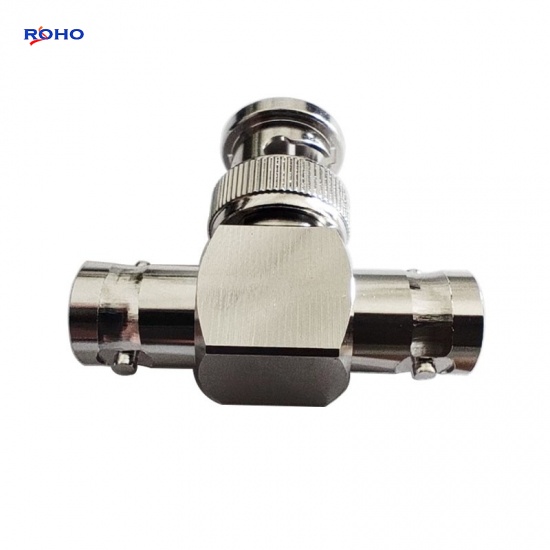

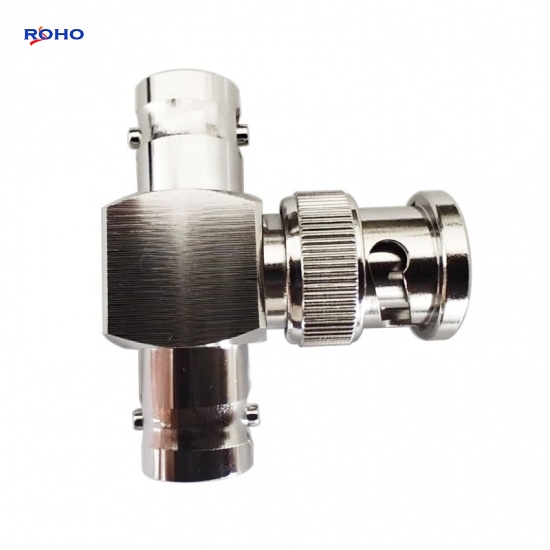

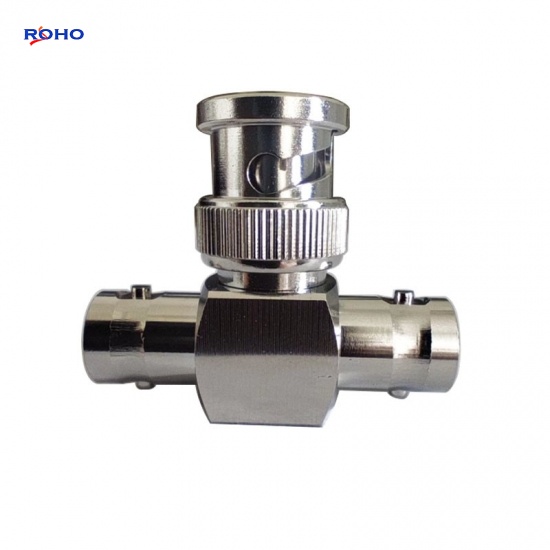

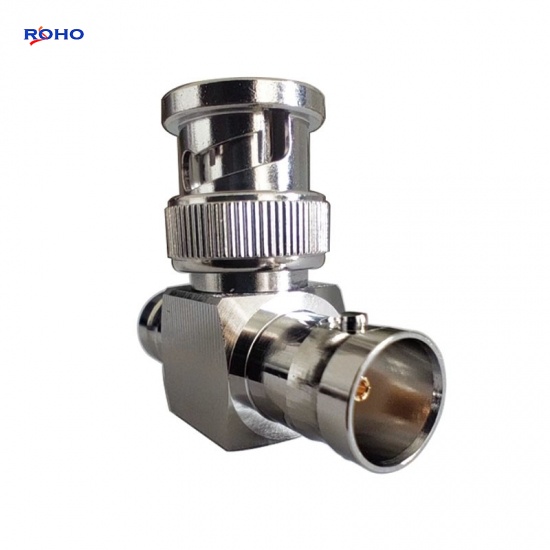

75ohm BNC Tee Adapter Female to Male to Female RF Coaxial Connector
The BNC Adapter has different BNC to BNC adapter gender, is a in-series coaxial adapter. The BNC to BNC adapters has female to female, female to male, male to female or male to male gender designs. it has straight, tee or right angle body. ROHO's BNC to BNC adapters offers standard or high performance designs. This 75ohm BNC tee adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 100MHz, and is a tee body.
Specifications
| ELECTRICAL DATA | |
| Adapter Side 1 Series | BNC |
| Adapter Side 1 Style | Male |
| Adapter Side 2 Series | BNC |
| Adapter Side 2 Style | Female |
| Adapter Side 3 Series | BNC |
| Adapter Side 3 Style | Female |
| Frequency (Max MHz) | 100 |
| Impedance (Ohms) | 75 |
| Low PIM | No |
| Orientation | Straight |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| ELECTRICAL DATA | |
| Body Material |
Brass/Zinc Alloy |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Suitable for Antennas
- Broadcast, Radios
- Wi-Fi, Telecom,LMR
- Wireless LAN Devices, CCTV
- Microwave Applications and Digital Communication System
