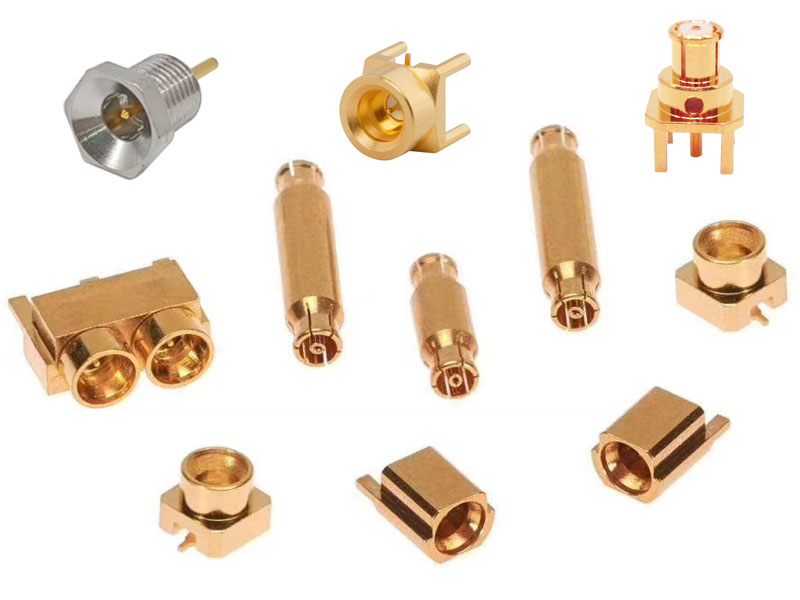

The board to board RF connector is a very common connector product. Among all the connector product types, the board to board RF connector has the strongest transmission capability, mainly used in communication networks, power systems, and industrial applications. Automation, medical equipment, office equipment, smart appliances, military manufacturing and other industries. The following  explain the 5-point test analysis of the board to board RF connector.

    1. Because the board to board RF connector works, the current generates heat at the contact point, causing the temperature rise. Therefore, it is generally considered that the operating temperature should be equal to the sum of the ambient temperature and the junction temperature rise, requiring the board to board RF connector to be rated at the operating current. The highest temperature allowed.

    2. When the salt spray resistant connector works in an environment with moisture and salt, the metal structural parts and the surface treatment layer of the contact parts will have galvanic corrosion, which will affect the physical use and electrical of the board to board RF connector. performance.

    3. Intrusion of moisture-resistant moisture will affect the insulation performance of the connection h and corrode metal parts. Constant damp heat test conditions are relative humidity of 90% to 95%, temperature +40 ± 20 ° C, test time according to product regulations, alternating heat and humidity test is more demanding.

    4. board to board RF coaxial connector failure handling When the board to board RF connector is broken, it may be caused by broken wires during use, poor connector contact, and loose connector terminals. Because the failure of the wires to break in the middle is rare, most of them are disconnected at the connector. Therefore, the inspection should focus on carefully checking the wires of the sensor and the connecting wires, whether there is looseness and poor contact.

    5. The board to board RF connector open-circuit failure caused by poor contact is often caused by corrosion of the connector end, external dirt entering the terminal or connecting to the socket, thus causing a decrease in contact pressure. At this point, just remove the board to board RF connector and re-install it to change its connection and return it to normal contact.
