October 2025 - In the rapidly evolving landscape of radio frequency (RF) and microwave engineering, the demand for components that offer a blend of proven reliability and adaptable performance remains high. Among these, the BNC Attenuator continues to be a cornerstone in test labs, communication systems, and broadcast facilities worldwide. Recent industry trends highlight a sustained preference for these devices due to their robust form factor, wide range of available specifications, and consistent performance across diverse applications.

    BNC attenuators are primarily classified by their functionality, power handling, and frequency capabilities, allowing engineers to select the perfect component for their specific needs.

• Fixed Attenuators: This is the most common category, providing a single, precise value of signal loss. Models are available in a vast array of attenuation values, from as low as 1 dB  to 30 dB or higher . These are ideal for permanently setting signal levels in a circuit. A notable example is the ROHO's 50F-003, a fixed attenuator offering 3 dB of attenuation for signals up to 2.2GHz .

• Attenuator Sets: For research and development environments that require flexibility, pre-packaged kits are widely available. The ROHO's TA050 set, for instance, includes four coaxial attenuators with values of 3, 6, 10, and 20 dB, designed for signals up to 1 GHz . This provides a compact toolkit for a variety of bench-testing scenarios.

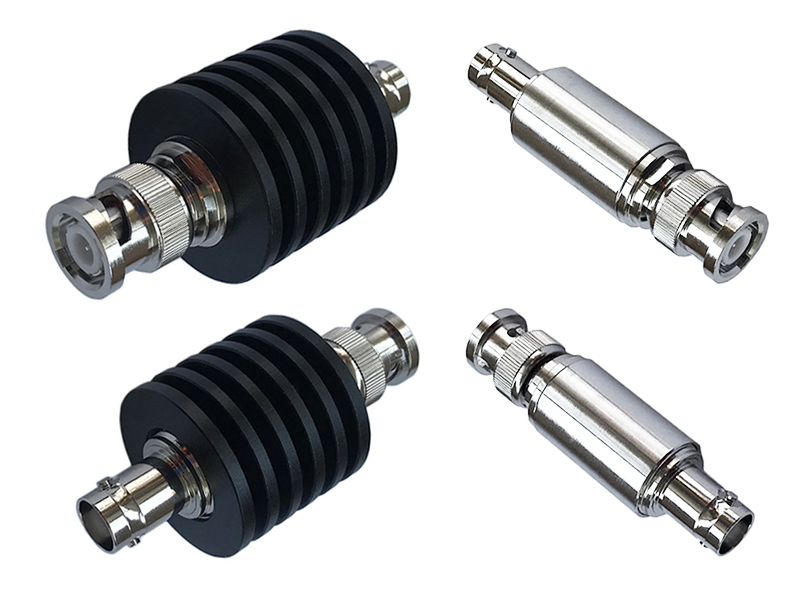

• Power-Scaled Designs: BNC attenuators are engineered for different power tiers. Standard models, like those in the TA050 set, are rated for 1 Watt , while more robust designs from manufacturers like ROHO Corporation can handle 2 Watts . For high-power transmission systems, specialized units from companies like ROHO Technologies (e.g., the 2BNC50W series) can handle an impressive 50 Watts of average power .

    The enduring relevance of BNC attenuators is rooted in a set of key performance parameters that ensure signal integrity and system protection.

• Broad Frequency Range: BNC attenuators cover a wide spectrum of applications. While many standard models operate effectively from DC to 1 GHz  or 2.5 GHz , advanced designs push this boundary to 3 GHz  and even 4 GHz , catering to modern high-frequency needs.

• Precise Attenuation and Low VSWR: The primary function of any attenuator is to reduce signal power accurately and with minimal reflection. High-quality BNC attenuators maintain a low Voltage Standing Wave Ratio (VSWR), typically 1.25:1  or better, which is crucial for preserving signal quality and ensuring accurate measurements.

• Standardized Impedance and Connector Design: The vast majority of BNC attenuators are designed for 50-Ohm systems, the standard impedance for most communication equipment . The BNC (Bayonet Neill–Concelman) connector itself is a key feature, providing a secure, quick-connect/disconnect interface that is resistant to vibration.

• Rugged Construction: Designed for durability, many BNC attenuators feature metal casings  and are built to withstand the rigors of both benchtop and field use. Their robust build ensures stable performance over a long operational life.

    "The BNC connector interface has stood the test of time, and the attenuators built around it continue to be a default choice for many engineers," commented an industry analyst. "The availability of everything from low-power, precision sets to high-wattage units ensures that this classic component remains vital in both legacy systems and new designs."

    With a clear classification system and well-defined performance characteristics, BNC attenuators are poised to remain an essential and reliable solution in the RF engineer's toolbox, enabling innovation and ensuring signal integrity across countless applications.
