BNC Attenuators

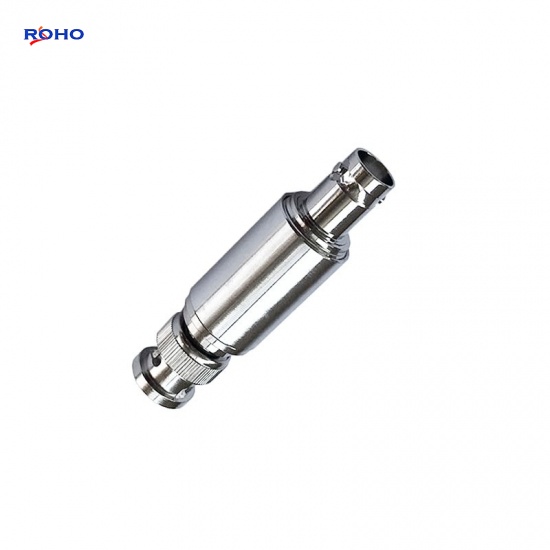

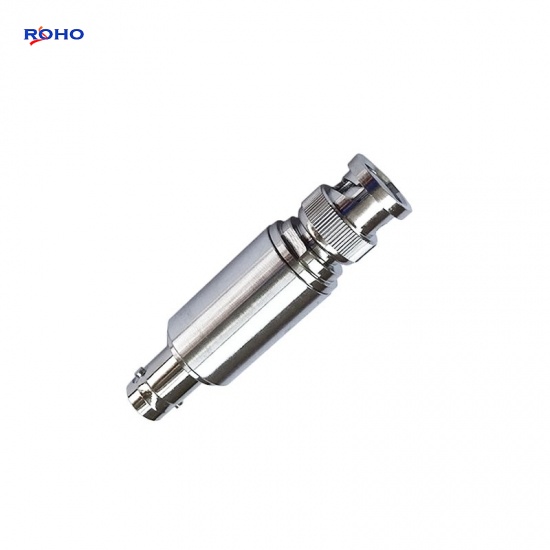

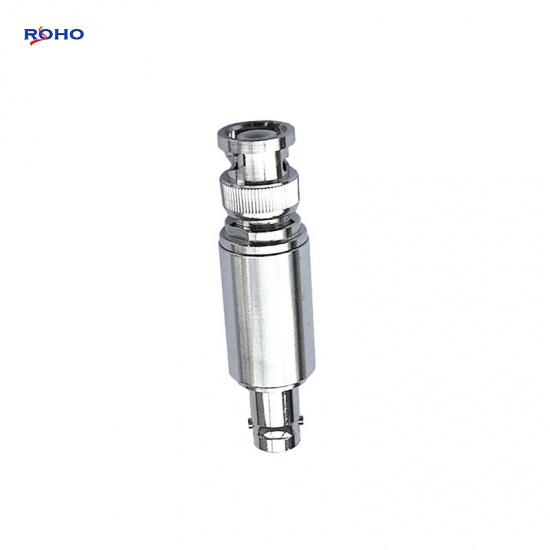

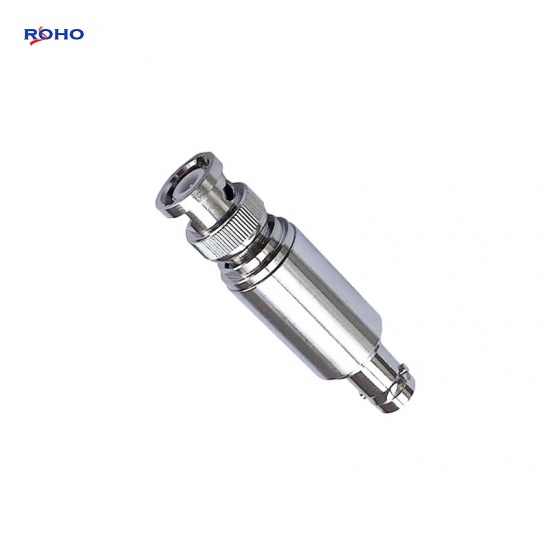

2W 5W BNC Male to Female RF Fixed Attenuator 1-20dB DC-3GHz/4GHz 50ohm

BNC Attenuator Features:

  • BNC connector input, out connector is BNC;
  • Maximum frequency of 4GHz;
  • A female gender in and a female gender out;
  • Attenuation values range from 1dB to 40dB.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

2W 5W BNC Male to Female RF Fixed Attenuator 1-20dB DC-3GHz/4GHz 50ohm



The RF Attenuator are manufactured to precise industry specifications and the bodies are constructed of an aluminum finned heatsink, stainless steel or nickel plated brass. ROHO's BNC Attenautor is a High Power Coaxial Attenuator from 1 to 100W, and we offer 50ohm loads terminations male and female type. This 2W 5W BNC to BNC Attenuator has a BNC male gender on side 1 and a BNC female connector on side 2. attenuation Max value is 40dB, frequency Max is 4GHz.



Specifications

ELECTRICAL DATA
Frequency DC~3GHz/4GHz
Connector BNC Male to Female
VSWR ≤1.25
Power 2W or 5W
Impedance 50Ω
Attenuation value 1-20dB
Attenuation 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20dB is available
1-10dB.±0.5dB,15-20dB±1dB
Temperature Range -55℃~+125℃
MATERIAL DATA
Connector body Stainless Steel,Passivate or Brass,Plating Ni
Insulator  PTFE
Inner Conductor  Phosphor Bronze ,Plating Au



Applications

  • In-door distribution system
  • Shortwave communication
  • Hopping radio
  • Radar
  • Electronic navigation
  • Electronic confrontation
