BNC Attenuators

10W RF Coaxial Fixed Attenuator with BNC Male to Female DC-3GHz/4GHz 1-30dB Avaliable

BNC Attenuator Features:

  • BNC connector input, out connector is BNC;
  • Maximum frequency of 4GHz;
  • A female gender in and a female gender out;
  • Attenuation values range from 1dB to 40dB.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

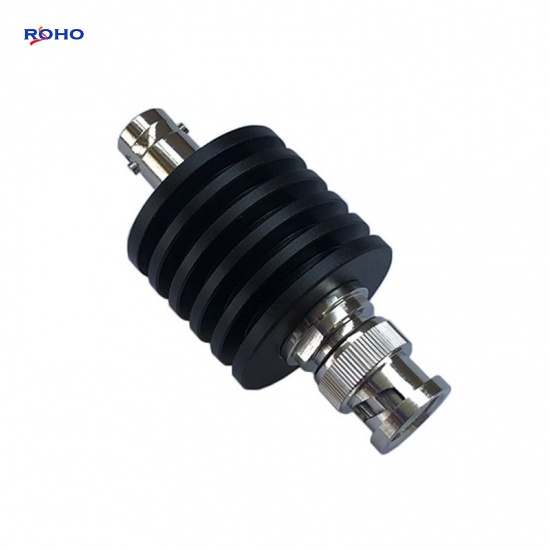

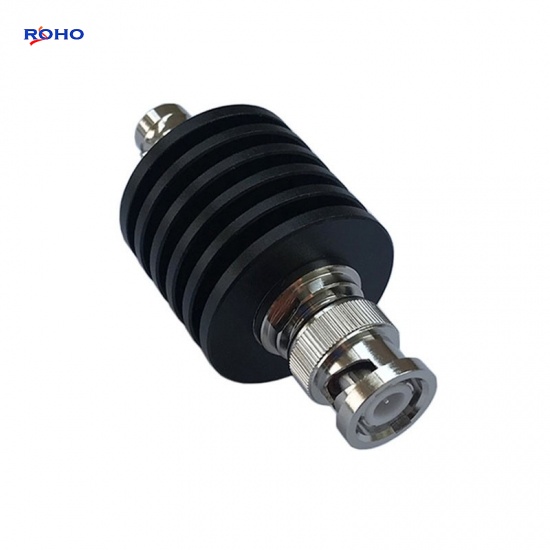

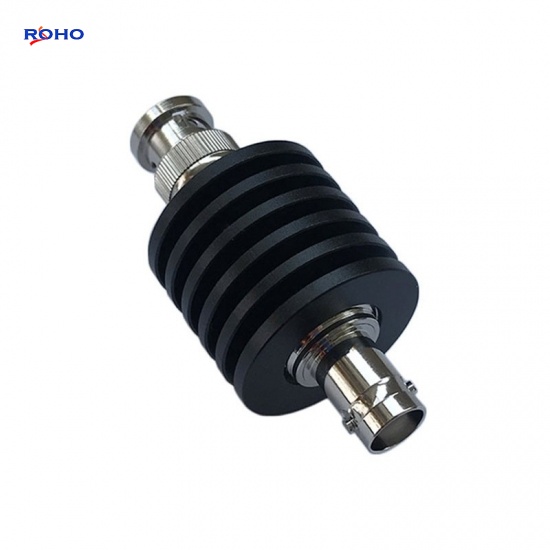

10W RF Coaxial Fixed Attenuator with BNC Male to Female DC-3GHz/4GHz 1-30dB Avaliable



The RF Attenuator are manufactured to precise industry specifications and the bodies are constructed of an aluminum finned heatsink, stainless steel or nickel plated brass. ROHO's BNC Attenautor is a High Power Coaxial Attenuator from 1 to 100W, and we offer 50ohm loads terminations male and female type. This 10W BNC to BNC Attenuator has a BNC male gender on side 1 and a BNC female connector on side 2. attenuation Max value is 40dB, frequency Max is 4GHz.



Specifications

ELECTRICAL DATA
Frequency DC~3GHz/4GHz
Connector BNC Male to Female
VSWR ≤1.25
Power 10W
Impedance 50Ω
Attenuation value 1-40dB
Attenuation 1, 3, 5, 6, 10, 15, 20, 40dB is available
1-10dB.±0.5dB,15-30dB±1dB, 40dB±1.5dB
Temperature Range -55℃~+125℃
MATERIAL DATA
Connector body Stainless Steel,Passivate or Brass,Plating Ni
Insulator  PTFE
Inner Conductor  Phosphor Bronze ,Plating Au



Applications

  • In-door distribution system
  • Shortwave communication
  • Hopping radio
  • Radar
  • Electronic navigation
  • Electronic confrontation



Leave A Message
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Categories
Related Products
2W 5W BNC Male to Female attenuator
2W 5W BNC Male to Female RF Fixed Attenuator 1-20dB DC-3GHz/4GHz 50ohm
BNC Attenuator Features: BNC connector input, out connector is BNC; Maximum frequency of 4GHz; A female gender in and a female gender out; Attenuation values range from 1dB to 40dB.
RP SMA Female RF Coaxial Connector
RP SMA Female Straight Connector Solder Attachment Thru Hole for PCB
SMA Connector Features: Can terminate to coax, PCB (printed circuit board) or terminal; Can be male or female gender in standard polarity (RPSMA / RP-SMA) or reverse polarity threads, with 50ohm impedance; Body can be straight, radius right angle or right angle; Mount Method can be press in, bulkhead, 2 hole panel, 4 hole panel or mount-less; Attachment methods include clamp/solder, compression, crimp/solder, crimp/solder (captive contact), field replaceable, solder, solder (without contact), solder/solder or solder/solder (captive contact); Body is brass or stainless steel.
N Type Female Panel Socket Connector
N Female Socket Connector 4 Screw Thread Hole Panel with Solder Spill
N type features: Can terminate to coax, PCB (printed circuit board) or terminal; Can be male or female gender in standard polarity or reverse polarity threads, with 50ohm impedance; Body can be straight or right angle; Mount Method can be press in, bulkhead, 2 hole panel, 4 hole panel or mount-less; Attachment methods include clamp/solder, clamp/solder (captive contact), crimp/solder, field replaceable, solder or solder/solder; Body is brass or stainless steel.
TNC Male Right Angle Clamp RF Coaxial Connector
TNC Male Right Angle Connector Clamp Solder Attachment for RG213 RG8 Cable
TNC Connector Features: Can terminate to coax, PCB (printed circuit board) or terminal; Can be male or female gender in standard polarity or reverse polarity threads, with 50ohm impedance; Body can be straight or right angle; Mount Method can be press in, bulkhead, 4 hole panel or mount-less; Attachment methods include clamp/solder, crimp/solder, solder or solder/solder; Body is brass or stainless steel.
F Female to PAL Plug Right Angle Connector Adapter
F Female to PAL Plug Male Right Angle 75ohm TV Antenna Coaxial Adapter
F Type adapters Features: Allow to interface F connectors with BNC, F, N, RCA, SMA or UHF connectors; Has female to female, female to jack, female to male, female to plug, male to female, male to jack, male to male or male to plug gender combinations; Has bulkhead or mountless configurations; Has standard or Push-On interfaces; Has straight or right angle versions; Standard or high performance designs.

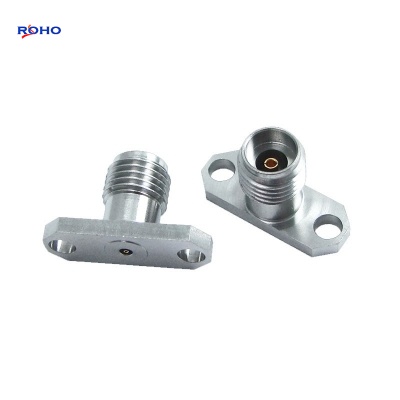

2.92mm Female Connector
