MMCX Adaptors

MMCX Plug Male to MMCX Plug Male RF Coaxial Connector Adapter

MMCX adapters Features:

  • Allow to interface MMCX connectors with BNC, MCX, MMCX or SMA connectors;
  • Has jack to female, jack to jack, jack to male, jack to plug, plug to female, plug to jack, plug to male or plug to plug gender designs;
  • Has bulkhead or mountless configurations;
  • Micro-miniature version of the MCX;
  • 50ohm impedance interface, broadband capability of DC to 6GHz;
  • Secure, fast and easy snap-on/snap-off coupling;
  • MMCX adaptors have a smaller footprint than the MCX series.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

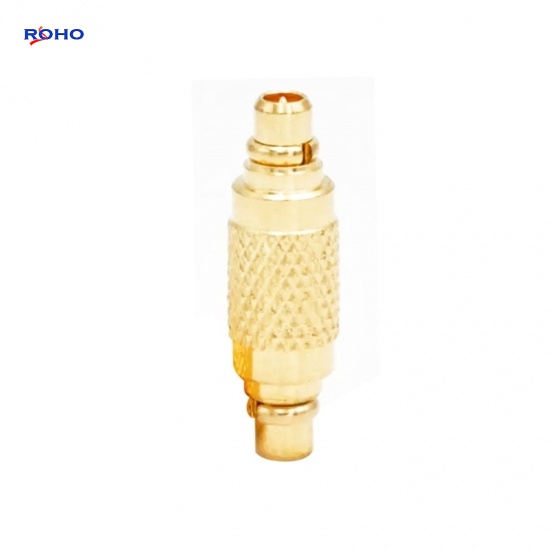

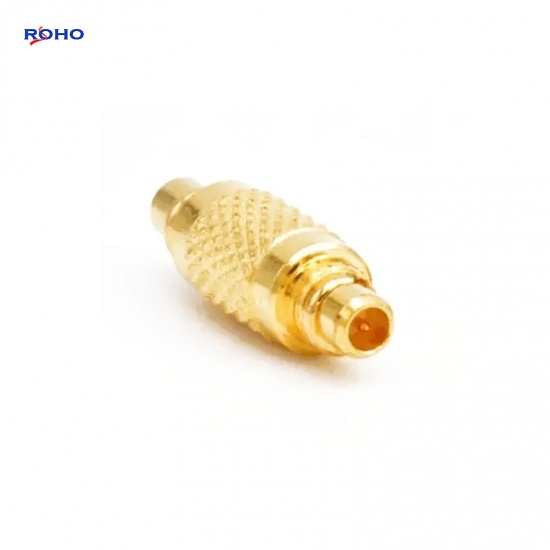

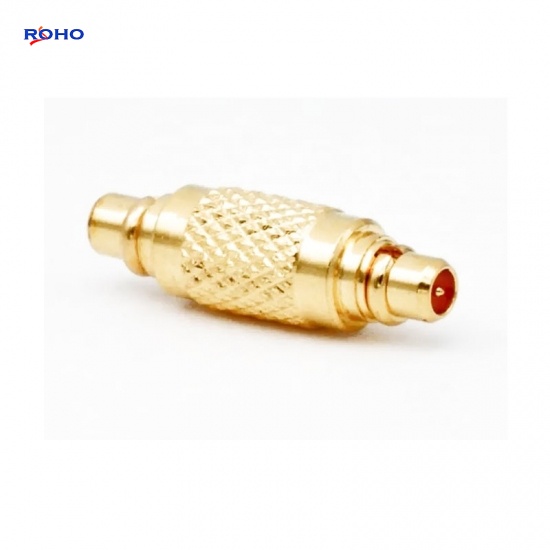

MMCX Plug Male to MMCX Plug Male RF Coaxial Connector Adapter



The MMCX Adapter has different MMCX to MMCX adapter gender, that is a series coaxial adapter, The MMCX to MMCX adapters has jack to jack, jack to plug or plug to plug gender varieties. This MMCX plug to MMCX plug adapter has a maximum frequency of 6GHz, and is a straight body adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series MMCX
Adapter Side 1 Style Plug
Adapter Side 2 Series MMCX
Adapter Side 2 Style Plug
Frequency (Max GHz) 6
Impedance (Ohms) 50
Low PIM No
Orientation Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Antenna Installations
  • Laboratory Use
  • Land Mobile Radio & Other Communication Systems
  • General Purpose
  • Cellular & Wi-Fi Systems
