MMCX Adaptors

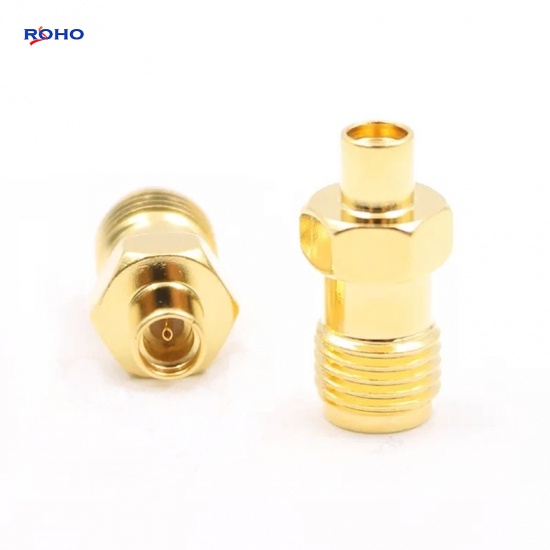

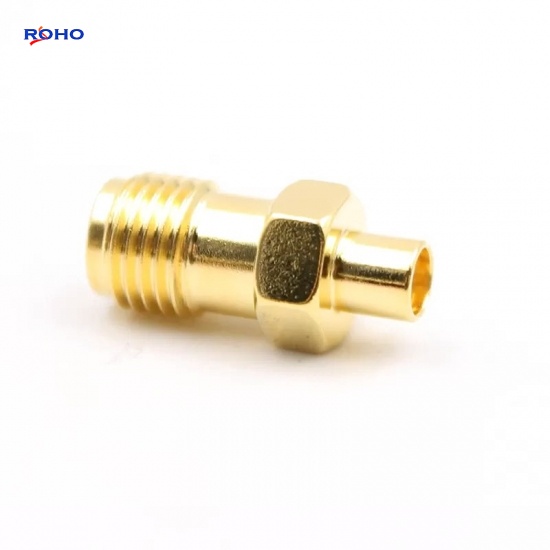

MMCX Jack Female to SMA Female RF Coaxial Connector Adapter

MMCX adapters Features:

  • Allow to interface MMCX connectors with BNC, MCX, MMCX or SMA connectors;
  • Has jack to female, jack to jack, jack to male, jack to plug, plug to female, plug to jack, plug to male or plug to plug gender designs;
  • Has bulkhead or mountless configurations;
  • Micro-miniature version of the MCX;
  • 50ohm impedance interface, broadband capability of DC to 6GHz;
  • Secure, fast and easy snap-on/snap-off coupling;
  • MMCX adaptors have a smaller footprint than the MCX series.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

MMCX Jack Female to SMA Female RF Coaxial Connector Adapter



The MMCX Adapter has different MMCX to SMA adapter gender, that is a between series coaxial adapter, The MMCX to SMA adapters has jack to female, jack to male, plug to female or plug to male gender varieties. ROHO's MMCX to SMA adapters has straight or right angle body, This MMCX jack to SMA female adapter has a maximum frequency of 6GHz, and is a straight body adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series MMCX
Adapter Side 1 Style Jack
Adapter Side 2 Series SMA
Adapter Side 2 Style Female
Frequency (Max GHz) 6
Impedance (Ohms) 50
Low PIM No
Orientation Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Antenna Installations
  • Laboratory Use
  • Land Mobile Radio & Other Communication Systems
  • General Purpose
  • Cellular & Wi-Fi Systems
