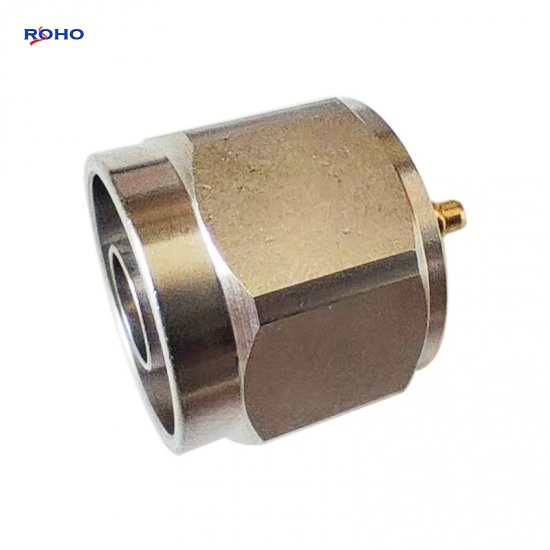

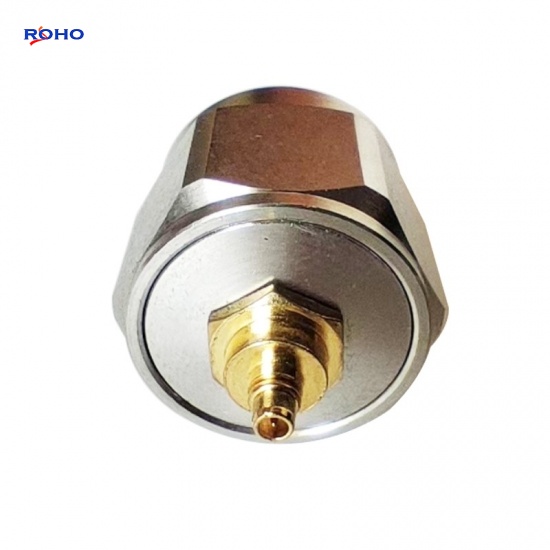

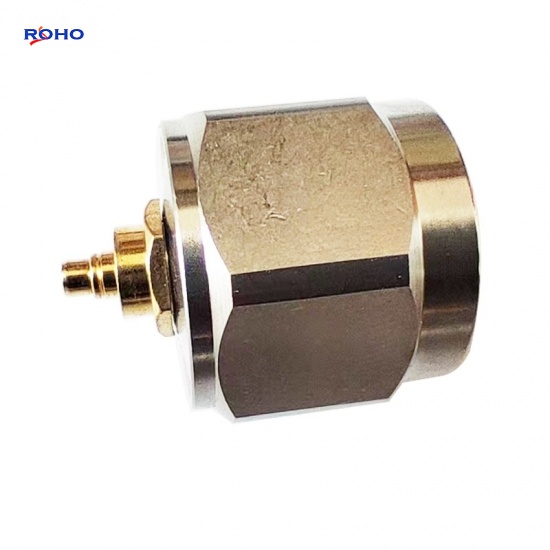

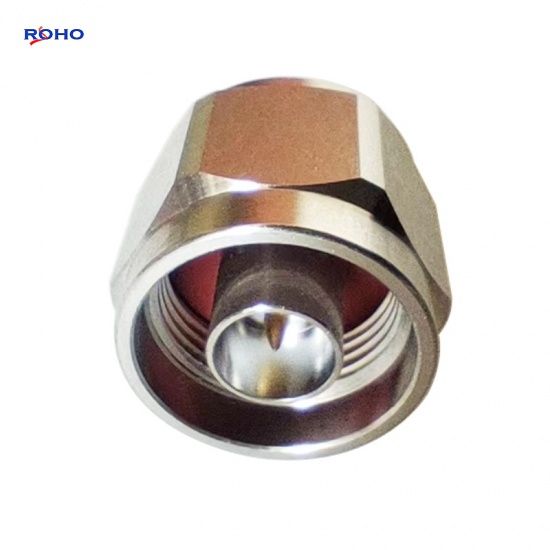

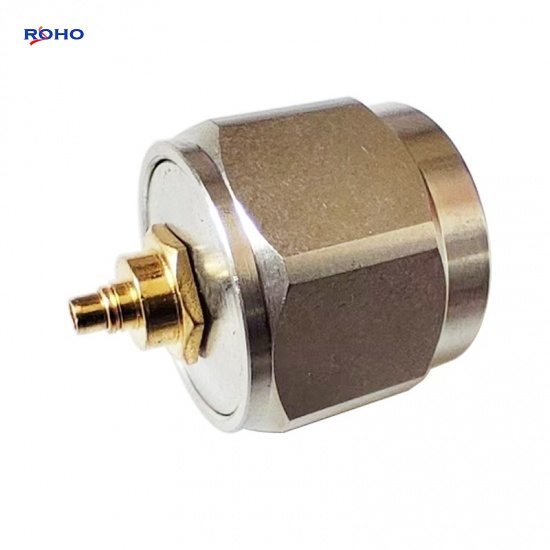

MMCX Plug Male to N Type Male Coaxial Connector Adapter
The MMCX Adapter has different MMCX to N adapter gender, that is a between series coaxial adapter, The MMCX to N adapters has jack to female, jack to male, plug to female or plug to male gender varieties. ROHO's MMCX to N Type adapters has straight or right angle body, This MMCX plug to N male adapter has a maximum frequency of 6GHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA | |
| Adapter Side 1 Series | MMCX |
| Adapter Side 1 Style | Plug |
| Adapter Side 2 Series | N Tyoe |
| Adapter Side 2 Style | Male |
| Frequency (Max GHz) | 6 |
| Impedance (Ohms) | 50 |
| Low PIM | No |
| Orientation | Straight |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| MATERIAL DATA | |
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Antenna Installations
- Laboratory Use
- Land Mobile Radio & Other Communication Systems
- General Purpose
- Cellular & Wi-Fi Systems
