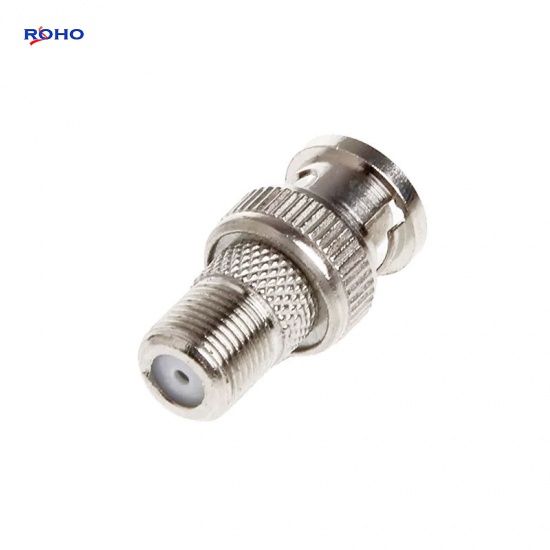

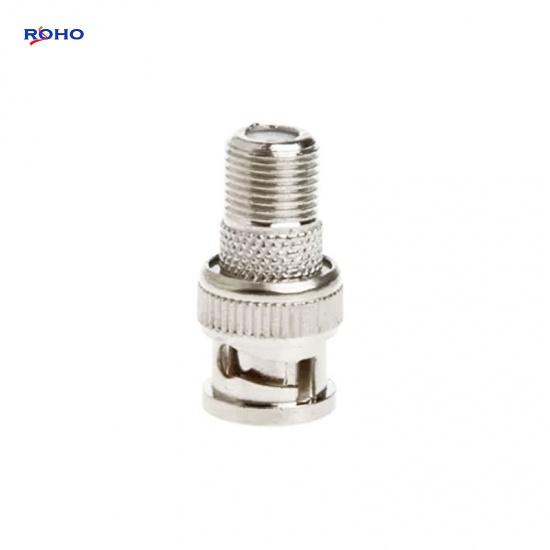

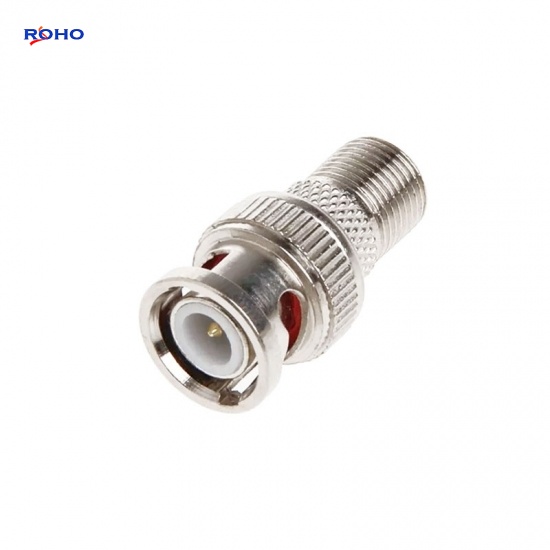

F Female to BNC Male 50ohm RF Coaxial Connector Adapter
The F Type Adapter has different F to BNC adapter gender, that is a between series coaxial adapter, The F to BNC adapters has female to female, female to male or male to female gender combinations. This F Type female to BNC male adapter has a maximum frequency of 3GHz, and is a straight body adapter.
Specifications
ELECTRICAL DATA | |
Adapter Side 1 Series | F |
Adapter Side 1 Style | Female |
Adapter Side 2 Series | BNC |
Adapter Side 2 Style | Male |
Frequency (Max GHz) | 3GHz |
Impedance (Ohms) | 50 |
Low PIM | No |
Orientation | Straight |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
MATERIAL DATA | |
Body Material |
Brass/Zinc Alloy |
Body Finish |
Nickel/Ternary alloy |
Contact Material |
Phosphor Bronze/Beryllium Copper |
Contact Finish |
Gold/Silver |
Insulator Material |
PTFE |
Applications
- Antennas DAB Aerial Adapter
- Coaxial Cables
- Radio Scanners
- Ham Radio Transceivers
- CB Radio Handheld&Amateur Radio Transceivers
- CB Radio Handheld&Amateur Radio
