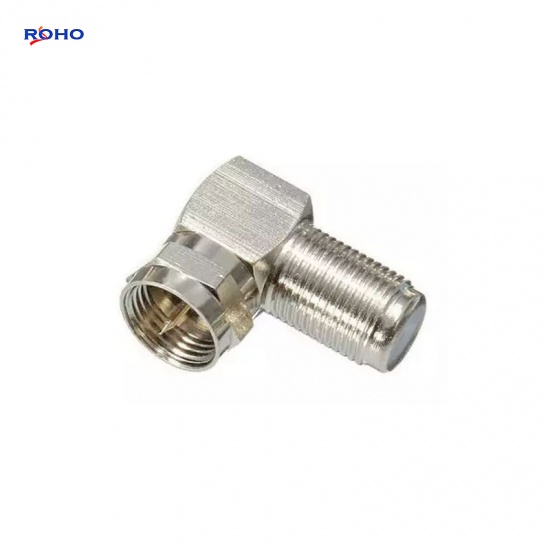

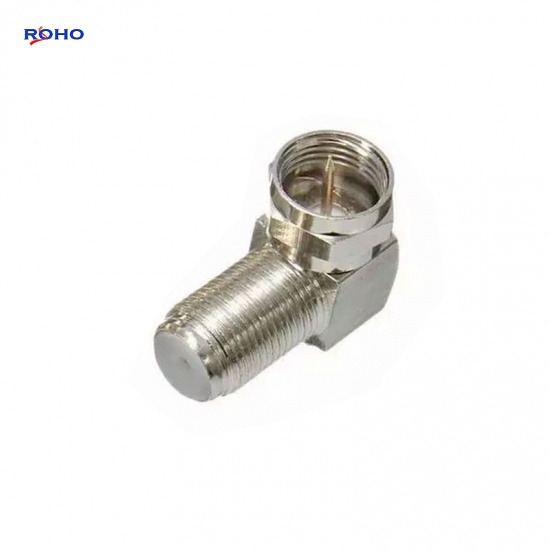

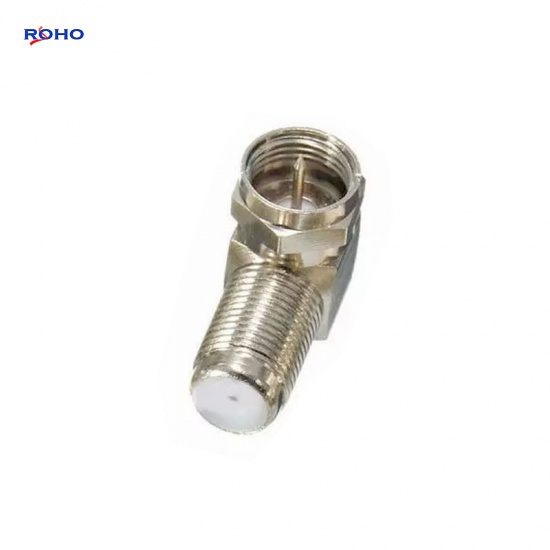

F Male to F Female Right Angle RF Coaxial Connector Adapter
The F Type Adapter has different F to F adapter gender, that is a series coaxial adapter, The F to F adapters has female to female, female to male or male to male gender combinations. This F Type male to F female adapter has a maximum frequency of 3GHz, and is a right angle body adapter.
Specifications
| ELECTRICAL DATA | |
| Adapter Side 1 Series | F |
| Adapter Side 1 Style | Male |
| Adapter Side 2 Series | F |
| Adapter Side 2 Style | Female |
| Frequency (Max GHz) | 3GHz |
| Impedance (Ohms) | 75 |
| Low PIM | No |
| Orientation | Right Angle |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| MATERIAL DATA | |
| Body Material |
Brass/Zinc Alloy |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Antennas DAB Aerial Adapter
- Coaxial Cables
- Radio Scanners
- Ham Radio Transceivers
- CB Radio Handheld&Amateur Radio Transceivers
- CB Radio Handheld&Amateur Radio
