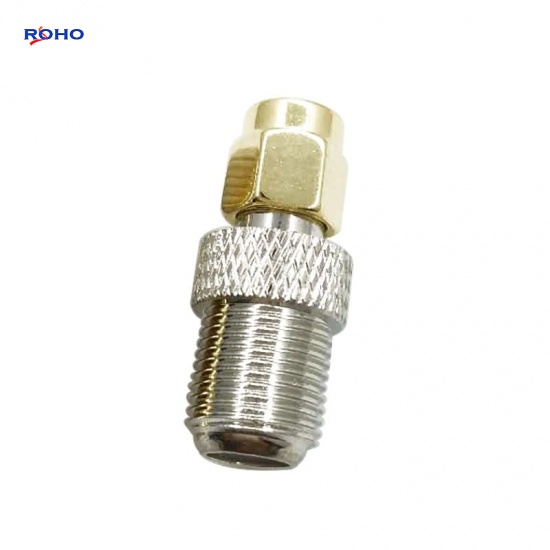

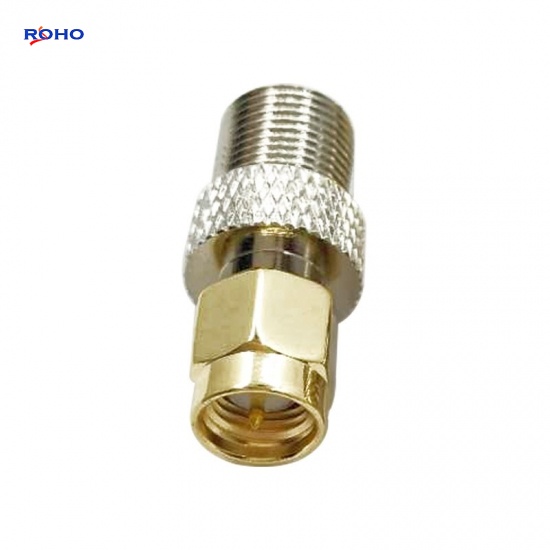

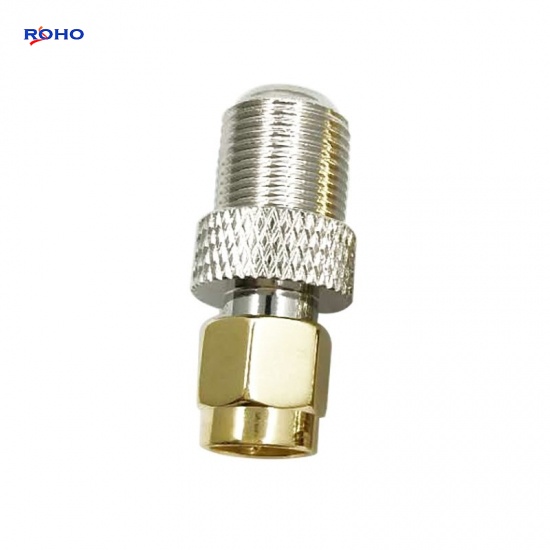

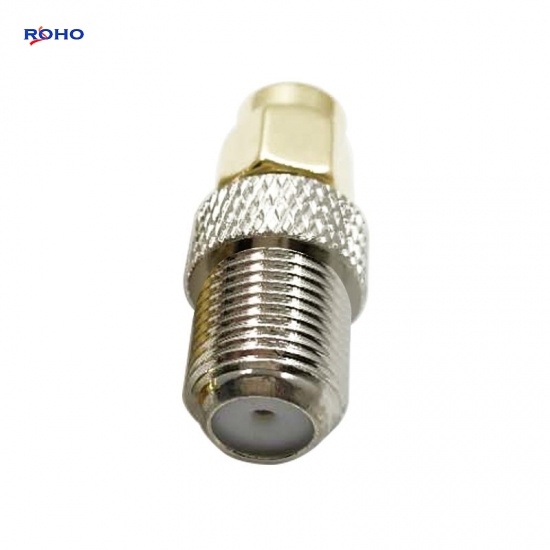

Hot Sell F Type Female to SMA Male RF Coaxial Connector Adapter
The F Type Adapter has different F to SMA adapter gender, that is a between series coaxial adapter, The F to SMA adapters has female to female, female to male or male to female gender combinations. This F Type female to SMA male adapter has a maximum frequency of 3GHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA | |
| Adapter Side 1 Series | F |
| Adapter Side 1 Style | Female |
| Adapter Side 2 Series | SMA |
| Adapter Side 2 Style | Male |
| Frequency (Max GHz) | 3GHz |
| Impedance (Ohms) | 50 |
| Low PIM | No |
| Orientation | Straight |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| MATERIAL DATA | |
| Body Material |
Brass/Zinc Alloy |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Antennas DAB Aerial Adapter
- Coaxial Cables
- Radio Scanners
- Ham Radio Transceivers
- CB Radio Handheld&Amateur Radio Transceivers
- CB Radio Handheld&Amateur Radio
