TNC Cable Assemblies

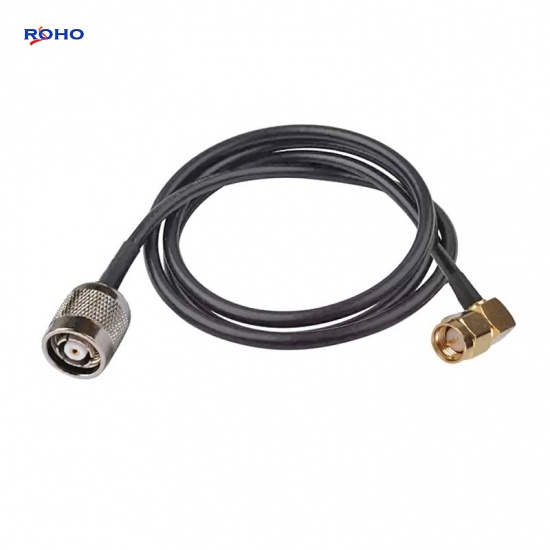

GPS Antenna RP TNC Male to SMA Male Right Angle with RG58 Coax Cable for GSM CDMA 3G 4G LTE Signal Booster

TNC Cable assembly Features:

  • Can be combined with BNC, FAKRA, MCX, MMCX, N, SMA, SMB or TNC connector;
  • Body Can be right angle or straight connectors;
  • Max Frequency 18 GHz;
  • Cable Can use flexible, formable or semirigid cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

GPS Antenna RP TNC Male to SMA Male Right Angle with RG58 Coax Cable for GSM CDMA 3G 4G LTE Signal Booster

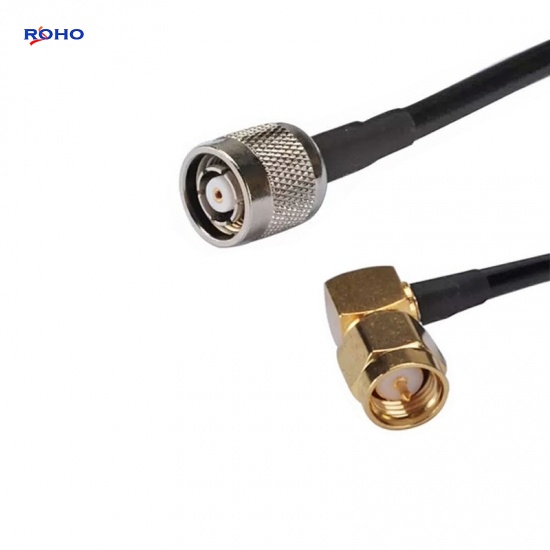

The TNC cable assembly can use flexible, formable or semirigid coaxial cable such as LMR195、LMR240、LMR400、RG142、RG174、RG178、RG188、RG213、RG214、RG223、RG316、RG393、RG400、RG401、RG402、RG58、RG8; the body of TNC to SMA cable assembly is right angle or straight connectors which is female to female, female to male, male to female or male to male gender. This RP TNC male to SMA male cable assembly uses a 50ohm straight RP TNC for connector 1 and a 50ohm right angle SMA for connector 2, Cable is a 50ohm flexible RG58.



Specifications

ELECTRICAL DATA
Connector 1 Series RP TNC
Connector 1 Style Str Male
Cable Type RG58
Connector 2 Series SMA
Connector 2 Style RA Male
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM Yes
Max Frequency 3GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Automated Test Systems
  • Airborne Systems
  • Phased Arrays
  • EW and Countermeasures
