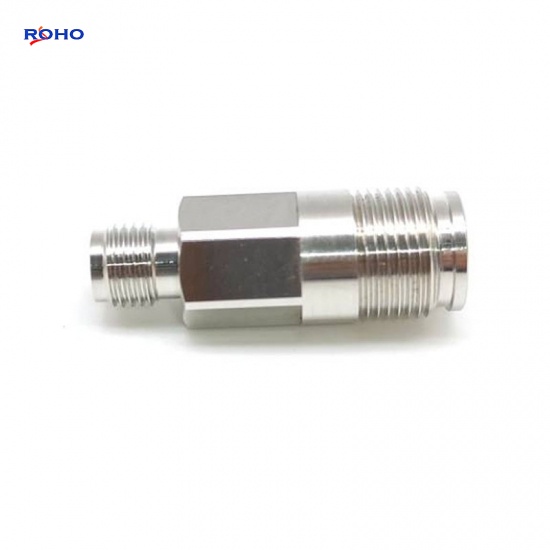

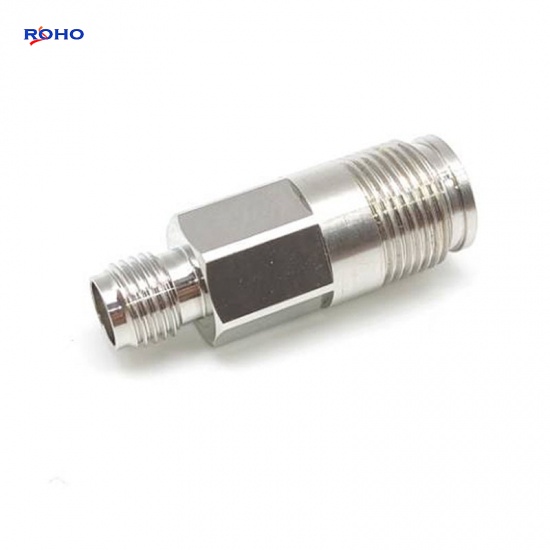

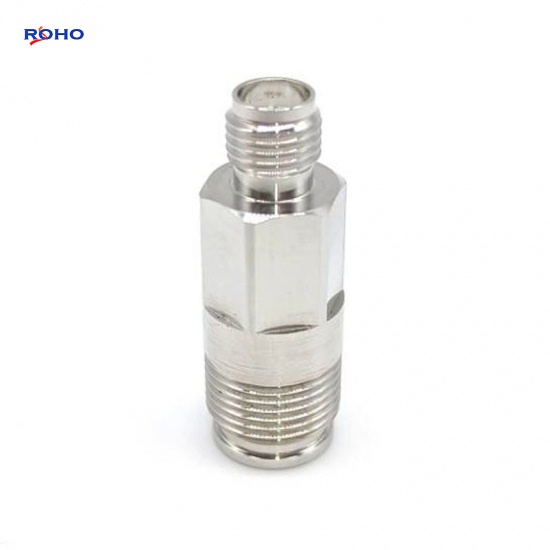

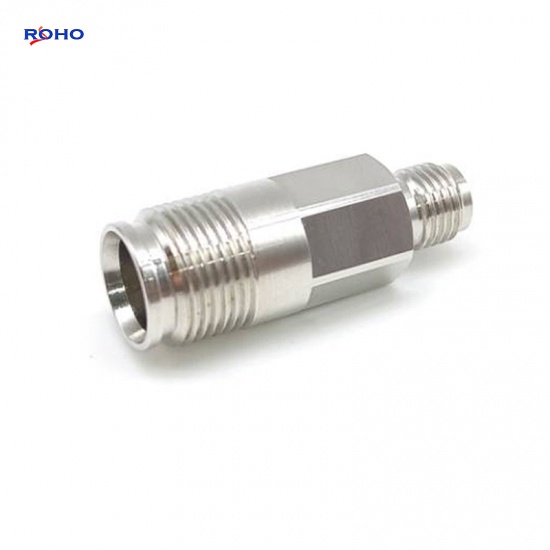

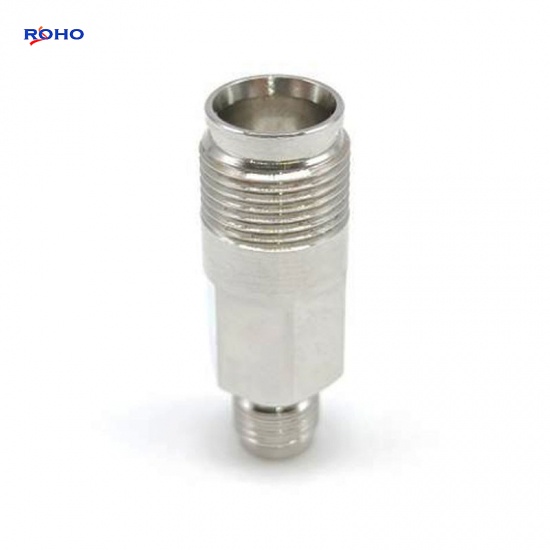

Low Pim NEX10 Female to SMA Female Straight RF Connector Adapter

Features:

  • Screw-type and a push-pull locking mechanism are available;
  • Maximum passive intermodulation (IM3) of -165 dBc;
  • Low VSWR;
  • Applies silver-plating on all inner and outer conductor parts;
  • Suited for transmitting medium or high power indoors and outdoors.



  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

Low Pim NEX10 Female to SMA Female Straight RF Connector Adapter



NEX10 female to SMA female Adapter enables you to reliably transmit radio-frequency signals in the frequency range from DC to 6 GHz.This adapter guarantees outstanding IM characteristics with maximum passive intermodulation (IM3) of -165 dBc and low VSWR; The adaptor offers a transition from interface NEX10 female to SMA female Adapter. The connector has a straight direction,The NEX10 female to SMA female Adapter guarantees excellent, lossless mobile communication quality for use in in-building distributed antenna systems (DAS) or on mobile communication base stations outdoors.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series NEX10
Adapter Side 1 Style Female
Adapter Side 2 Series SMA
Adapter Side 2 Style Female
Frequency (Max GHz) 18
Impedance (Ohms) 50
Low PIM Yes
Orientation Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • In multi-operator/multiband DAS
  • Low-power base stations
  • Designed to meet the demands of upcoming 5G networks
  • Small cell applications
  • Blind mate for panel as well as test & measurement
