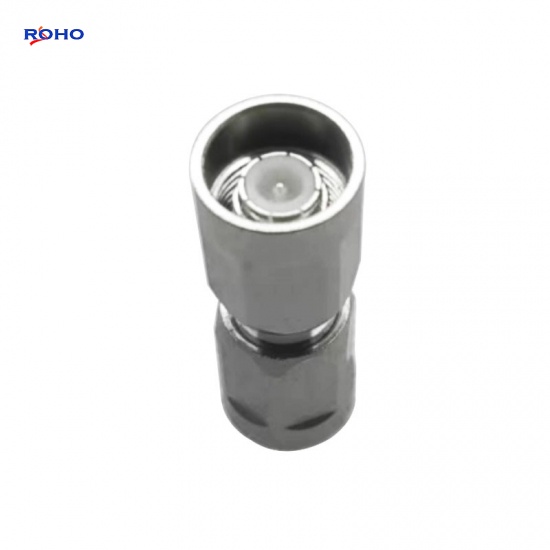

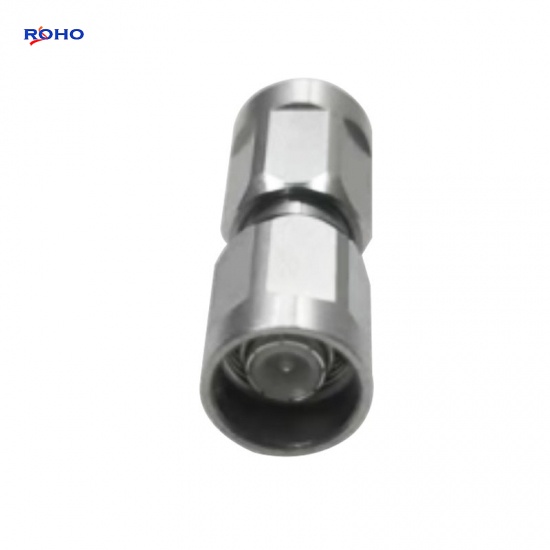

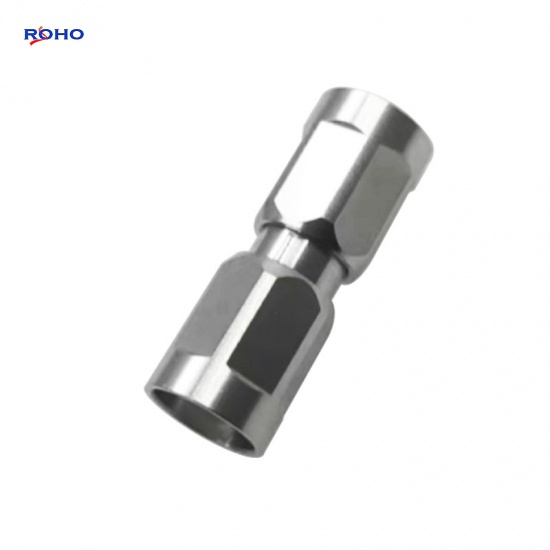

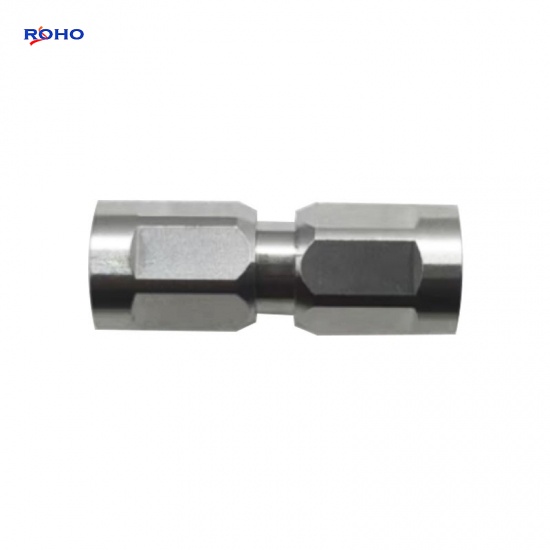

NEX10 Male to NEX10 Male Straight RF Connector Adapter
NEX10 male to NEX10 male adapter is one of RF, microwave and millimeter wave components. The RF adapter has a 50ohm impedance. This RF adapter has a male to male gender configuration which provides easier connections in tighter spaces. Our NEX10 to NEX10 adapter is an in-series coaxial adapter design. This 50ohm NEX10 adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 8GHz.
Specifications
| ELECTRICAL DATA | |
| Adapter Side 1 Series | NEX10 |
| Adapter Side 1 Style | Male |
| Adapter Side 2 Series | NEX10 |
| Adapter Side 2 Style | Male |
| Frequency (Max GHz) | 8 |
| Impedance (Ohms) | 50 |
| Low PIM | Yes |
| Orientation | Straight |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| MATERIAL DATA | |
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- In multi-operator/multiband DAS
- Low-power base stations
- Designed to meet the demands of upcoming 5G networks
- Small cell applications
- Blind mate for panel as well as test & measurement
