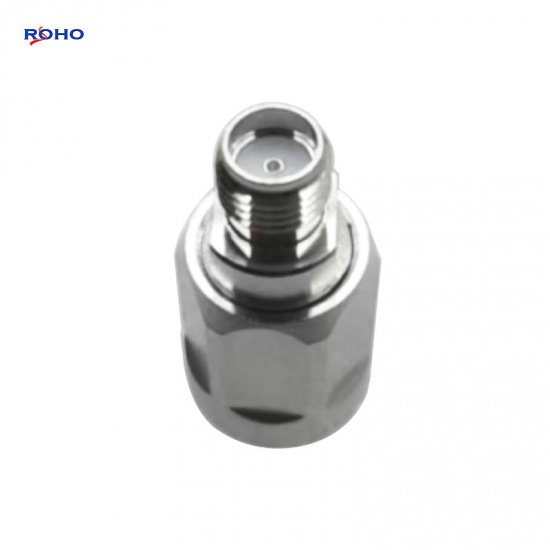

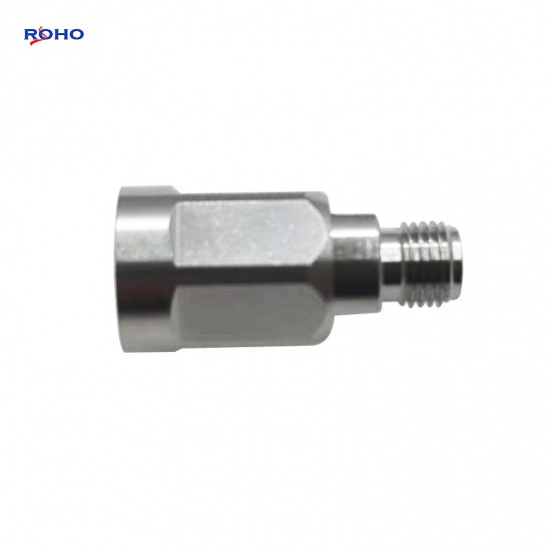

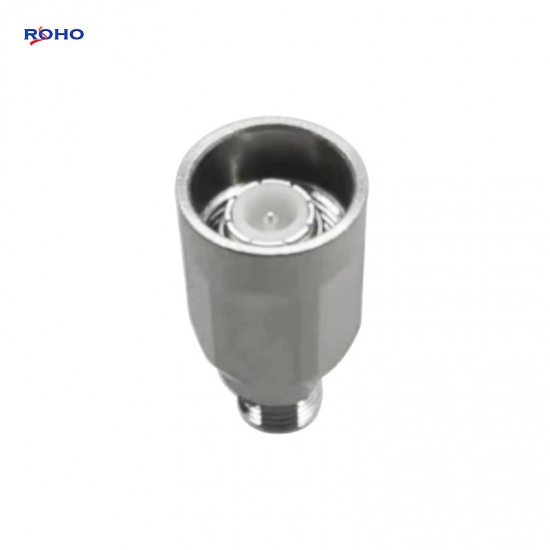

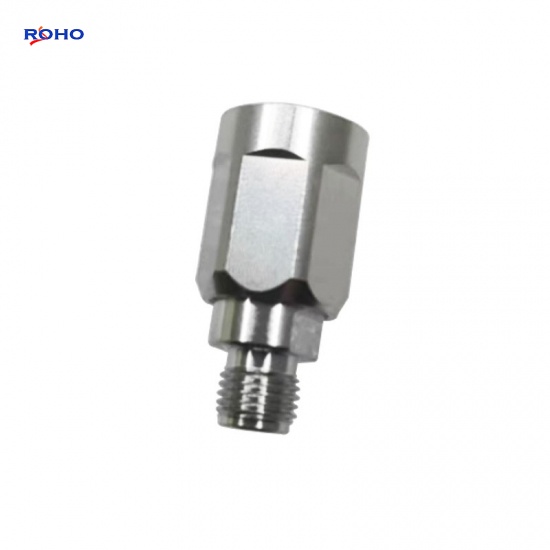

NEX10 Male to SMA Female Straight RF Connector Adapter
NEX10 female to SMA female Adapter enables you to reliably transmit radio-frequency signals in the frequency range from DC to 6 GHz.This adapter guarantees outstanding IM characteristics with maximum passive intermodulation (IM3) of -165 dBc and low VSWR; The adaptor offers a transition from interface NEX10 male to SMA female Adapter. The connector has a straight direction,The NEX10 Male to SMA female Adapter guarantees excellent, lossless mobile communication quality for use in in-building distributed antenna systems (DAS) or on mobile communication base stations outdoors.
Specifications
| ELECTRICAL DATA | |
| Adapter Side 1 Series | NEX10 |
| Adapter Side 1 Style | Male |
| Adapter Side 2 Series | SMA |
| Adapter Side 2 Style | Female |
| Frequency (Max GHz) | 6 |
| Impedance (Ohms) | 50 |
| Low PIM | Yes |
| Orientation | Straight |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| MATERIAL DATA | |
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- In multi-operator/multiband DAS
- Low-power base stations
- Designed to meet the demands of upcoming 5G networks
- Small cell applications
- Blind mate for panel as well as test & measurement
