F Type Connectors

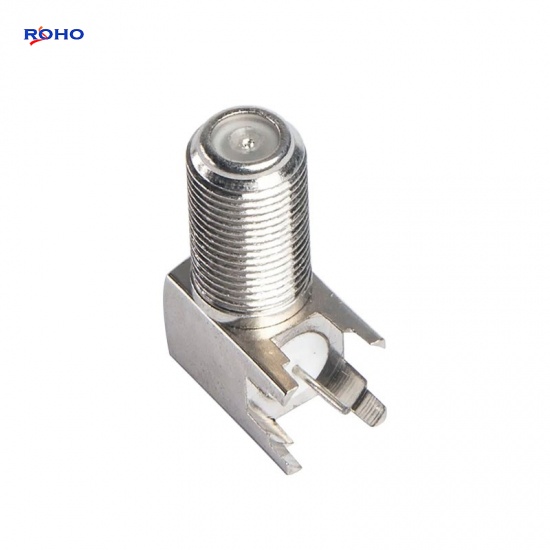

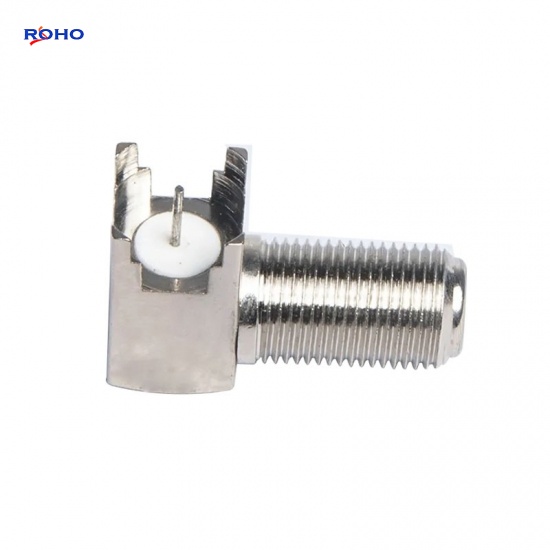

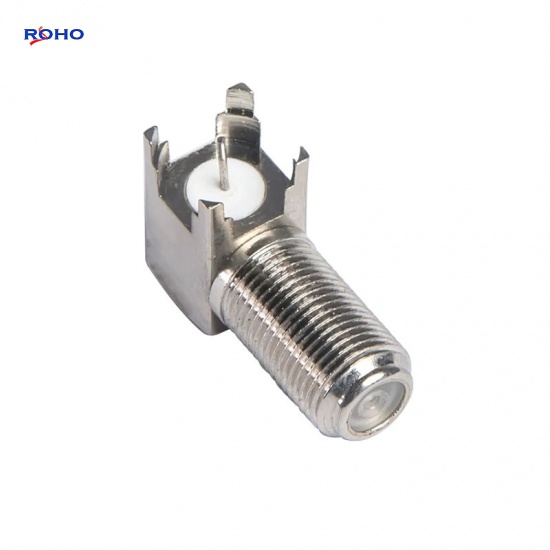

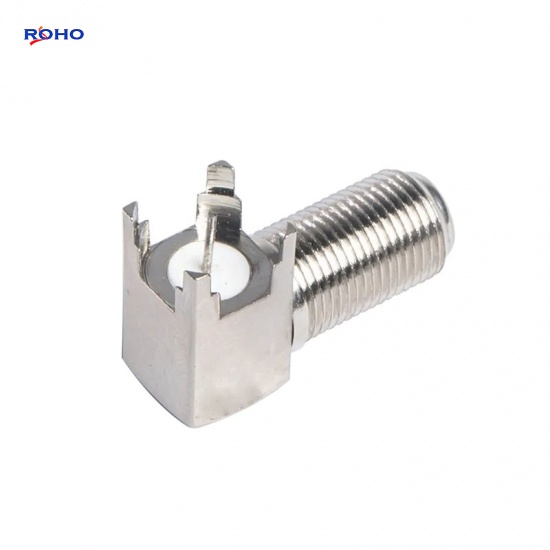

Manufacturer F Female Right Angle Connector Solder Attachment Thru Hole for PCB

F type features

  • Can terminate to coax, PCB (printed circuit board) or terminal;
  • Can be male or female gender, with 50 or 75 Ohm impedance;
  • Body can be straight or right angle;
  • Mount method can be bulkhead, 4 hole panel or or mount-less;
  • Attachment methods include compression, crimp/solder, solder or twist;
  • Body is brass, zinc alloy or stainless steel.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

Manufacturer F Female Right Angle Connector Solder Attachment Thru Hole  for PCB



The F type connector is 50 ohm- 75 ohm product designed for a wide range of coaxial cable. F-Type connector is a threaded alternative to the slide-on G-Type connector;The F Type connector series is a durable, high performance threaded interface. Primary applications of the F-Type connectors are for cable television (CATV), set top boxes and cable modems. frequency max up to 2GHz; this F type female right angle pcb connector has an interface type of thru hole and a 75ohm impedance, attachment method uses shield/contact solder, its straight body is brass or zinc alloy with nickel plating.



Specifications

ELECTRICAL DATA
Impedance                                                        75Ω
Frequency Range 1GHz
Working Voltage 170V max
Withstand Voltage 500V rms
Contact Resistance Inner conductor: 10mΩ
Outer conductor: 5mΩ
Insulation Resistance 1000mΩ
VSWR straight 1.2
right angle 1.3
MECHANICAL DATA
Durability     500 cycles
Vibration 100m/s2(10-500Hz)
ENVIRONMENTAL DATA
Temperature Range -40°C  to +60°C
MATERIAL DATA
Shell Brass or Zinc Alloy--Ni plated
Pin contactor Brass--Au / Ag plated
Elastic contact Beryllium / Tin brass--Au / Ag plated
Crimping suite Copper alloy--Ni / Au plated
O-ring sealing Silastic
Insulator PTFE



Applications

  • Set Top Boxes
  • Head End Equipment
  • CATV
  • High Speed Cable Modems
  • Hybrid Fiber Coax Networks
  • CIMs
