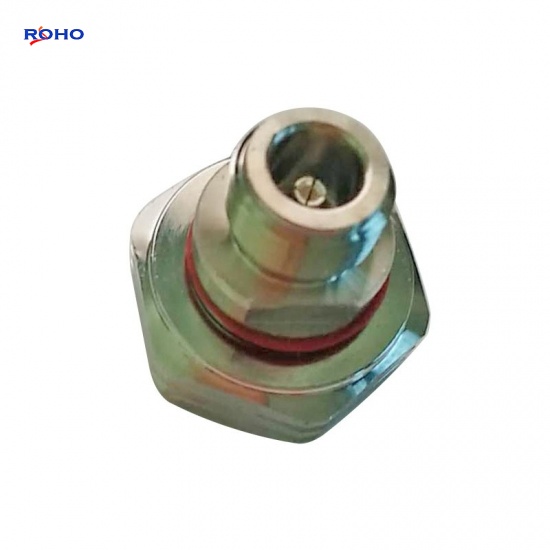

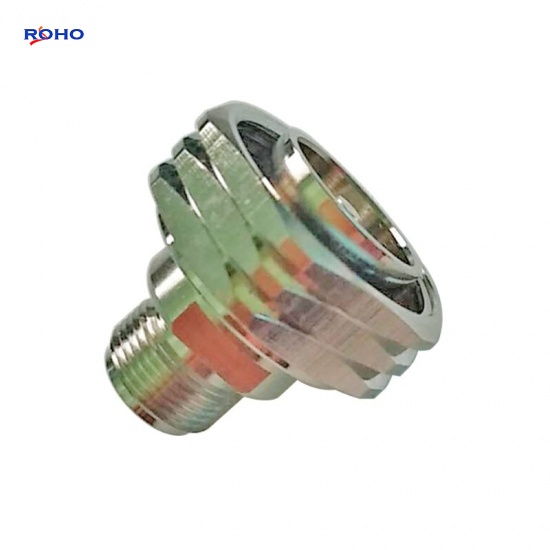

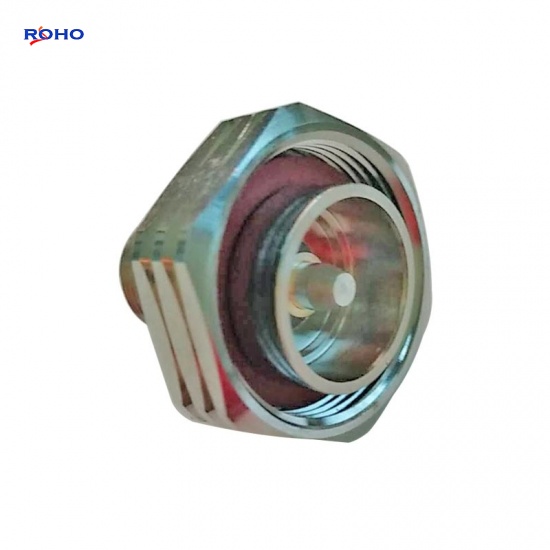

New 7/16 DIN Male to N Female Straight RF Connector Adapter
The 7/16 DIN Adapter has different 7/16 DIN to N adapter gender, that is between a series coaxial adapter.The 7/16 DIN to N adapters has female to female, female to male, male to female or male to male gende. ROHO offers 7/16 DIN to N adapters in standard or low PIM designs. This 7/16 DIN male to N female adapter has a maximum frequency of 8GHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA | |
| Adapter Side 1 Series | 7/16 DIN |
| Adapter Side 1 Style | Male |
| Adapter Side 2 Series | N |
| Adapter Side 2 Style | Female |
| Frequency (Max GHz) | 8 |
| Impedance (Ohms) | 50 |
| Low PIM | Yes |
| Orientation | Straight |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| MATERIAL DATA | |
| Body Material | Nickel/Ternary alloy |
| Body Finish | Brass |
| Contact Material | Phosphor Bronze/Beryllium Copper |
| Contact Finish | Gold/Silver |
| Insulator Material | PTFE |
Applications
- Wireless LAN
- Broadcast systems
- Outdoor antennas
- Radar equipment
- Microwave Radio
- Base stations
- Satellite systems
