F Type adapters Features： Allow to interface F connectors with BNC, F, N, RCA, SMA or UHF connectors; Has female to female, female to jack, female to male, female to plug, male to female, male to jack, male to male or male to plug gender combinations; Has bulkhead or mountless configurations; Has standard or Push-On interfaces; Has straight or right angle versions; Standard or high performance designs.
F type features： Can terminate to coax, PCB (printed circuit board) or terminal; Can be male or female gender, with 50 or 75 Ohm impedance; Body can be straight or right angle; Mount method can be bulkhead, 4 hole panel or or mount-less; Attachment methods include compression, crimp/solder, solder or twist; Body is brass, zinc alloy or stainless steel.
MCX Cable assembly Features： Can be combined with BNC, FAKRA, MCX, N, SMA, TNC or U.FL connector; Body Can be bulkhead or standard mount connectors; Body Can be right angle or straight connectors; Cable Can use flexible or formable cable.
Features： Zinc die-cast housing, tin-plated Light weight and compact size Easy installation with two edge hole sites Low insertion loss, high isolation, perfect performance index Designed for SATV/CATV Power passing-24V 0.8A(MAX.) All ports F-(f)connector,75Ohm
4.3-10 features： Can terminate to coax or terminal; Can be male or female gender in standard polarity, with 50ohm impedance; Body can be straight or right angle; Mount Method can be bulkhead, 4 hole panel or mount-less; Attachment methods include clamp/solder, crimp/solder, field replaceable or solder.
2.2-5 features： Can terminate to coaxial; Can be male or female gender in standard polarity, with 50ohm impedance; Body can be straight or right angle; Mount Method can be bulkhead or mount-less; Attachment methods include clamp/solder or solder/solder.
SMB Connector Features： Can terminate to coax, PCB (printed circuit board) or terminal; Can be jack or plug gender with 50 Ohm impedance; Body can be straight or right angle; Mount Method can be bulkhead, 2 hole panel, 4 hole panel or mount-less; Attachment methods include clamp/solder, crimp/solder or solder; Body is brass.
N type adapters Features： Allow to interface N connectors with N, QMA, QN, SMA, 1.85mm, 2.4mm, 2.92mm, 3.5mm, 7-16 DIN, 4.3-10, BNC, MCX, UHF, SMB, TNC or UHF connectors; Satisfy for a durable, weatherproof, medium-size RF adapter with consistent performance; High frequency range up to 8GHz; Threaded coupling mechanism, used in all systems where excellent RF and mechanical performance.
NEX10 features： Can terminate to coaxial; Can be male or female gender in standard polarity, with 50ohm impedance; Body can be straight or right angle; Mount Method can be bulkhead or mount-less; Attachment methods include clamp/solder, crimp/solder or solder/solder.
MMCX adapters Features： Allow to interface MMCX connectors with BNC, MCX, MMCX or SMA connectors; Has jack to female, jack to jack, jack to male, jack to plug, plug to female, plug to jack, plug to male or plug to plug gender designs; Has bulkhead or mountless configurations; Micro-miniature version of the MCX; 50ohm impedance interface, broadband capability of DC to 6GHz; Secure, fast and easy snap-on/snap-off coupling; MMCX adaptors have a smaller footprint than the MCX series.
N Type Cable assembly Features： Can be combined with 2.2-5, 4.3-10, 7-16 DIN, BNC, F, MCX, MMCX, N, NEX10, QMA, QN, SMA, SMB, SMP, TNC or UHF connector; Body Can be 4 hole panel, bulkhead or standard mount connectors; Body Can be right angle or straight connectors; Cable Can use corrugated, flexible, formable or semirigid cable.
SMP Connector Features： Can terminate to coax, PCB (printed circuit board), shroud or terminal; Can be male or female gender with 50ohm impedance; Body can be straight or right angle; Mount Method can be bulkhead, 2 hole panel or mount-less; Attachment methods include solder, crimp/solder, or solder/solder; Body is brass or stainless steel.
FAKRA Cable assembly Features： Can be combined with BNC, FAKRA, MCX, SMA or TNC connector; Body Can be right angle or straight connectors; Cable Can use flexible cable.
Features： Radiation Pattern of Antenna; Polarization of Antenna; Intensity of Radiation; Effective Aperture; Gain & Directivity; Bandwidth; Power Gain & Radiation Efficiency; Effective Length; Input Impedance.
Fakra features： Can terminate to coax or PCB (printed circuit board); Can be jack or plug gender in standard polarity or reverse polarity threads, with 50ohm impedance; Body can be straight or right angle; Mount Method can be crimp/solder or solder; Attachment methods include crimp/solder or solder; Body is plastic.

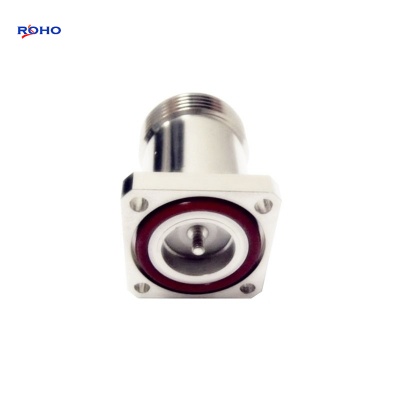

7-16 DIN features： Can terminate to coax or terminal; Can be male or female gender in standard polarity, with 50ohm impedance; Body can be straight or right angle; Mount Method can be press in, bulkhead, 4 hole panel or mount-less; Attachment methods include clamp/solder, crimp/solder, field replaceable or solder.
Features： Nominal mated height of 1.9 or 2.4mm (Max. 2.0 or 2.5mm ) ; Accepts high frequency transmission; Small mounting area The receptacle occupies an area of 7.7mm; Light weight; Plugs are terminated with ultra-fine coaxial (fluorinated resin insulated )cable; Automatic board placement; Simple connector mating / unmating; Verification of the fully mated condition.
BNC adapters Features： Allow to interface BNC connectors with BNC, F, MCX, MMCX, N, RCA, SMA, SMB, TNC or UHF connectors; Has female to female, female to jack, female to male, female to plug, female to sexless, male to female, male to jack, male to male, male to plug or male to sexless gender combinations; Has straight or right angle versions; Has bulkhead, 4 hole panel or mountless configurations; Has 50ohm or 75ohm impedance; BNC adaptors are miniature, lightweight and reliable; Has standard or high performance designs.
