SMA adapters Features： Allow to interface SMA connectors with 1.0-2.3, 1.85mm, 2.4mm, 3.5mm, 7-16 DIN, BNC, F, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, TNC, UHF or U.FL connectors; Has female to female, female to jack, female to male, female to plug, female to receptacle, female to sexless, male to female, male to jack, male to male, male to plug, male to receptacle or male to sexless gender designs; Has standard polarity or reverse polarity SMA (RP-SMA) options; Has bulkhead, 4 hole panel or mountless configurations; Has quick disconnect (QD) or standard interfaces.
Features： Radiation Pattern of Antenna; Polarization of Antenna; Intensity of Radiation; Effective Aperture; Gain & Directivity; Bandwidth; Power Gain & Radiation Efficiency; Effective Length; Input Impedance.
N Type Cable assembly Features： Can be combined with 2.2-5, 4.3-10, 7-16 DIN, BNC, F, MCX, MMCX, N, NEX10, QMA, QN, SMA, SMB, SMP, TNC or UHF connector; Body Can be 4 hole panel, bulkhead or standard mount connectors; Body Can be right angle or straight connectors; Cable Can use corrugated, flexible, formable or semirigid cable.
Features： Radiation Pattern of Antenna; Polarization of Antenna; Intensity of Radiation; Effective Aperture; Gain & Directivity; Bandwidth; Power Gain & Radiation Efficiency; Effective Length; Input Impedance.
4.3-10 Attenuator Features： 4.3-10 connector input, out connector can be 4.3-10 or N; Maximum frequency of 18GHz; A male gender in and a female gender out; Attenuation values range from 1dB to 40dB.
SMA attenuator Features： SMA connector input, out connector can be N or SMA; Maximum frequency of 26GHz; A female gender in and a female or male gender out; Attenuation values range from 1dB to 60dB.
BNC Cable assembly Features： Can be combined with 1.0-2.3, 7-16 DIN, BMA, BNC, F, FAKRA, MCX, N, SMA, SMB, Straight Cut Lead, TNC, or UHF connector; Body Can be bulkhead or standard mount connectors; Body Can be right angle or straight connectors; Cable Can use flexible, formable or semirigid cable.
N type adapters Features： Allow to interface N connectors with N, 7-16 DIN, 4.3-10, 3.5mm, or 2.2-5 connectors; Require low PIM in order to avoid interference in network quality during high speed data transmission; Flexibility in installation with the ability to blind mate； Lightweight and can accommodate various cable types; Both indoor and outdoor applications.
Features： Wide Frequency Band; 2G/3G/4G/5G LTE Coverage; Low VSWR; Widely used for In-building Solutions; High Quality; Durable&Long Service Life; A variety of products can be chosen; All the specifications can be changed as customer's requirment.
Features： Radiation Pattern of Antenna; Polarization of Antenna; Intensity of Radiation; Effective Aperture; Gain & Directivity; Bandwidth; Power Gain & Radiation Efficiency; Effective Length; Input Impedance.
SMP adapters Features： Allow to interface SMP connectors with SMA, 2.4mm, 2.92mm, MMCX, TNC or SMP connectors; Has female to female, female to male, male to female or male to male gender combinations; Subminiature interface in the same scale as MMCX connectors; Frequency range of DC to 40 GHz; Miniaturized high frequency coaxial modules, offered in both push-on and snap-on mating styles; Cable-to-board mated pair, the plug side can be provided in either right angle or straight with termination capability to either 0.047” or 0.086”, semi-rigid or conformable coax; Receptacles for surface, through hole, or end launch mounting.
7-16 DIN Attenuator Features： 7-16 DIN connector input, out connector can be N or 7-16 DIN; Maximum frequency of 18GHz; A female gender in and a female or male gender out; Attenuation values range from 1dB to 60dB.
2.4mm Cable assembly Features： Can be combined with 1.85mm, 2.4mm, 2.92mm,3.5mm, SMP, N or SMA connector; Body is all straight connectors; Cable Can use flexible, formable or semirigid cable.

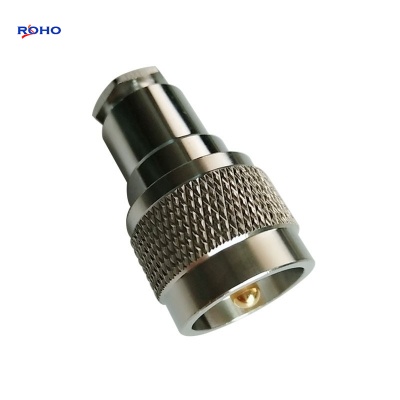

UHF Connector Features： Can terminate to coax or terminal; Can be male, female or sexless gender with 50ohm impedance; Body can be straight or right angle; Mount Method can be 4 hole flange, bulkhead, 4 hole panel or mountless options; Attachment methods include clamp/solder, crimp/solder, field replaceable or solder; Body is brass or zinc.
TNC Cable assembly Features： Can be combined with BNC, FAKRA, MCX, MMCX, N, SMA, SMB or TNC connector; Body Can be right angle or straight connectors; Max Frequency 18 GHz; Cable Can use flexible, formable or semirigid cable.
7-16 DIN Cable assembly Features： Can be combined with 4.3-10, 7-16 DIN, BNC, N, NEX10, QMA or SMA connector; Body Can be 4 hole panel, bulkhead or standard mount connectors; Body Can be right angle or straight connectors; Cable Can use corrugated, flexible, formable or semirigid cable.
4.3-10 adapters Features： Allow to interface 4.3-10 connectors with N, 7-16 DIN, 4.3-10 or SMA connectors; Same design as 7-16 connectors , smaller up to 40% lighter; Designs IP67, and provide excellent VSWR performance up to 6GHz; Very stable PIM performance, allowing for easier installation; Silver plated contacts and White Bronze plated bodies offer a high-degree of conductivity, corrosion resistance, and durability; Applications low passive intermodulation or PIM.
