MCX Cable Assemblies

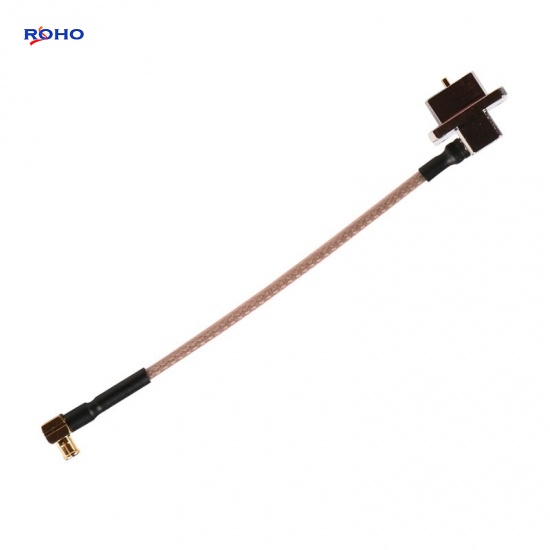

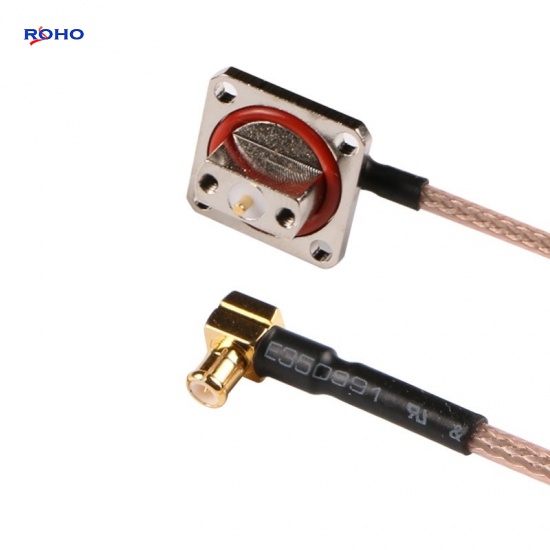

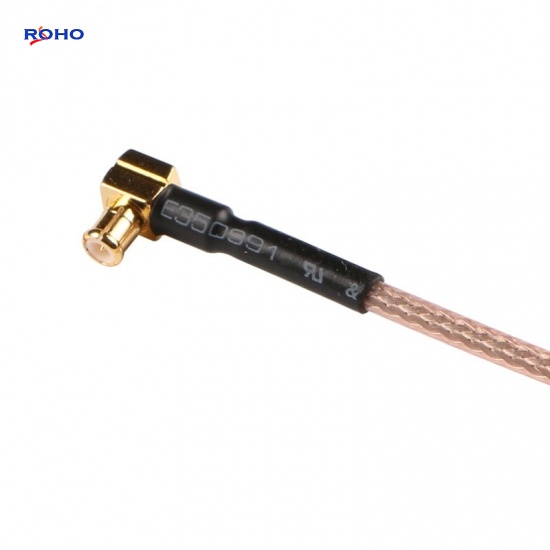

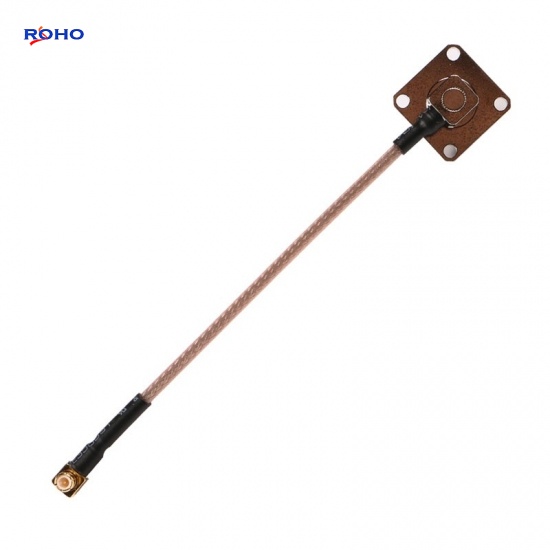

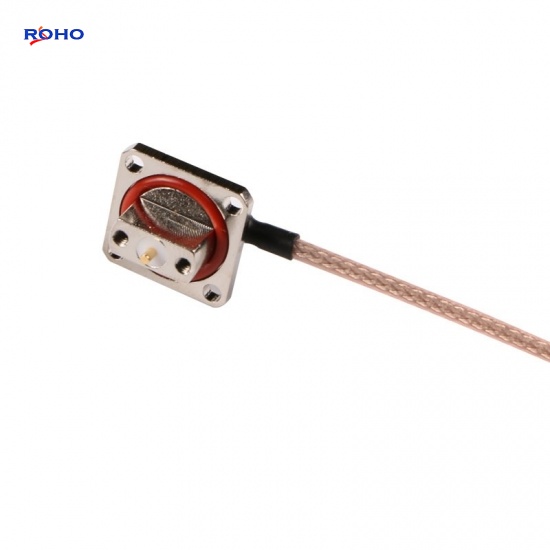

RF RA MCX Male to Bushing with RG316 Cable Assembly

MCX Cable assembly Features:

  • Can be combined with BNC, FAKRA, MCX, N, SMA, TNC or U.FL connector;
  • Body Can be bulkhead or standard mount connectors;
  • Body Can be right angle or straight connectors;
  • Cable Can use flexible or formable cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

RF RA MCX Male to Bushing with RG316 Cable Assembly



The MCX cable assembly can use corrugated, flexible, formable or semirigid coaxial cable such as RG174, RG178, RG188, RG196, RG316 or RG400 cable; the body of  MCX to Bushing cable assembly is right angle or straight connectors which is plug to plug gender. This MCX male to Bushing cable assembly uses a 50ohm right angle MCX for connector 1 and a 50ohm 4 hole panel bushing for connector 2, Cable is 50ohm flexible cable type RG316.



Specifications

ELECTRICAL DATA
Connector 1 Series MCX
Connector 1 Style Right Angle Male
Cable Type RG316
Connector 2 Series Bushing
Connector 2 Style /
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM NO
Max Frequency 3 GHz
Working Temperature -65°C  to +165°C
ELECTRICAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Aerospace,Defense
  • Telecom,Broadcast
  • Industrial,Medical
  • Instrumentation
