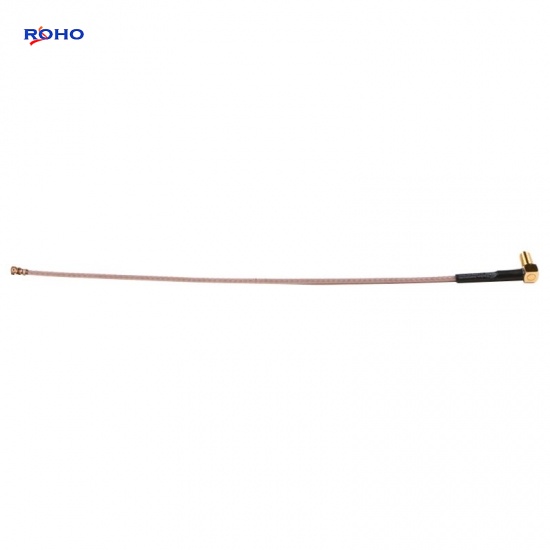

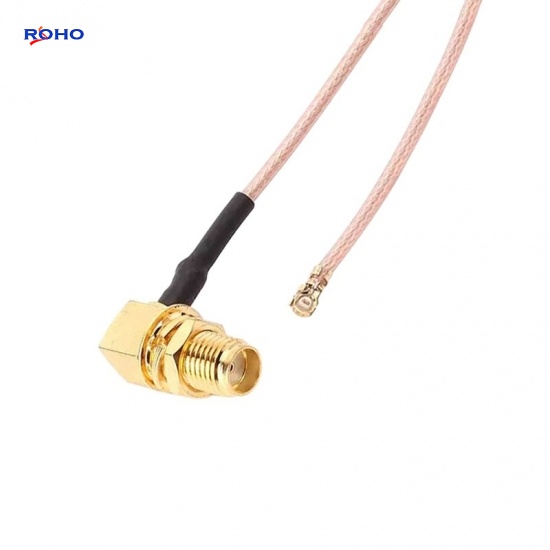

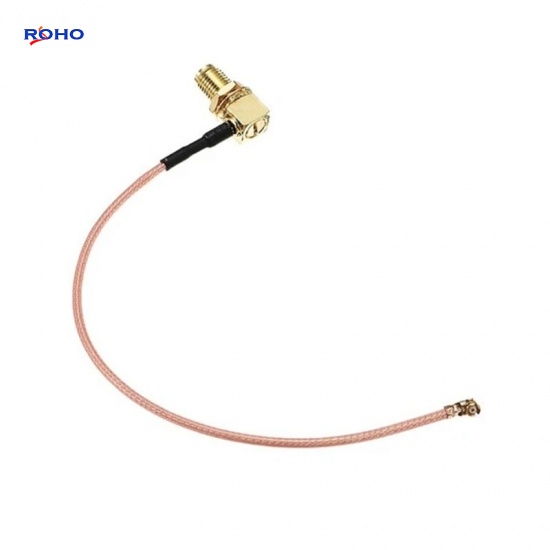

Right Angle SMA Female to UFL IPEX RF Coaxial Connector Assembly with RG178 Cable for Antenna
The SMA cable assembly can use corrugated, flexible, formable or semirigid coaxial cablesuch as 0.81mm, 1.13mm, 1.37mm, 1/4" Superflexible, LMR100, LMR-195, LMR200, LMR-240, LMR400, RG141, RG142, RG174, RG178, RG179, RG180, RG187, RG188, RG196, RG213, RG214, RG223, RG303, RG316, RG393, RG400, RG401, RG402, RG405, RG55, RG58, RG59, RG62, RG8, TFT-402 or Tinned 047 cable; the body of SMA to UFL cable assembly is right angle or straight connectors which is female to jack, female to plug, male to jack or male to plug gender. This SMA female to UFL plug cable assembly uses a 50ohm right angle SMA for connector 1 and a 50ohm straight UFL for connector 2, Cable is 50ohm RG178.
Specifications
ELECTRICAL DATA | |
Connector 1 Series | SMA |
Connector 1 Style | RA Female |
Cable Type | RG178 |
Connector 2 Series | UFL / IPEX |
Connector 2 Style | Str Plug |
Contact Termination | Solder |
Shield Termination | Crimp |
Impedance (Ohms) | 50 |
Low PIM | No |
Max Frequency | 6GHz |
Working Temperature | -65°C to +165°C |
MATERIAL DATA | |
Body Material |
Brass |
Body Finish |
Nickel/Ternary alloy |
Contact Material |
Phosphor Bronze/Beryllium Copper |
Contact Finish |
Gold/Silver |
Insulator Material | PTFE |
Applications
- Used as an RF Test Probe to 6 GHz
- RF PCB board measurements
- Signal injection
