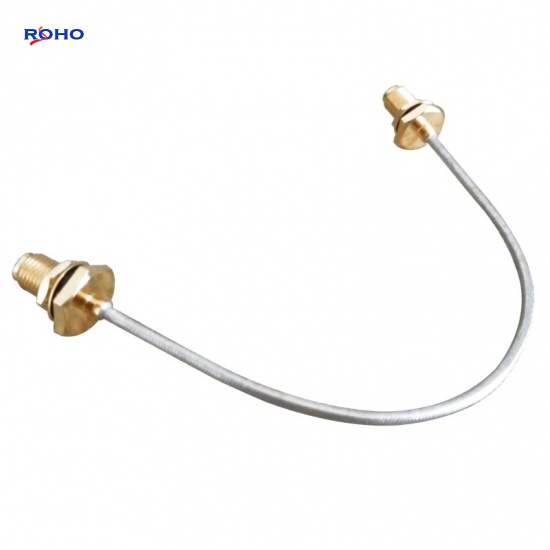

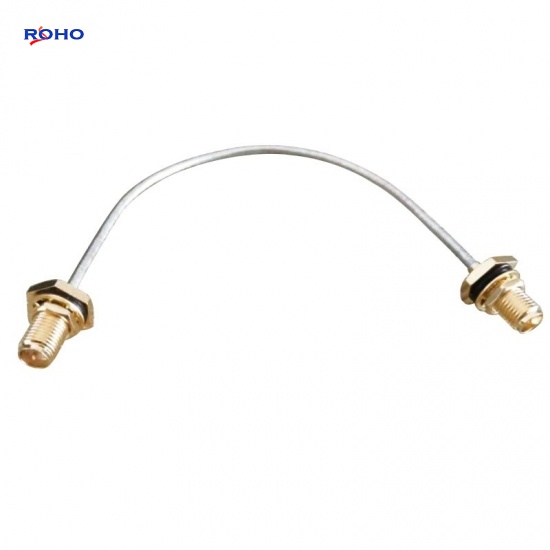

RP SMA Bulkhead Female Waterproof to RP SMA Bulkhead Female Waterproof Connector Cable Assembly with 086 Cable
The RP SMA cable assembly can use corrugated, flexible, formable or semirigid coaxial cablesuch as 0.81mm, 1.13mm, 1.37mm, 1/4" Superflexible, LMR100, LMR-195, LMR200, LMR-240, LMR400, RG141, RG142, RG174, RG178, RG179, RG180, RG187, RG188, RG196, RG213, RG214, RG223, RG303, RG316, RG393, RG400, RG401, RG402, RG405, RG55, RG58, RG59, RG62, RG8, TFT-402 or Tinned 047 cable; the body of RP SMA to RP SMA cable assembly is right angle or straight connectors which is female to female, female to to male or male to male gender. This RP SMA female to RP SMA female cable assembly uses a 50ohm straight SMA for connector 1 and a 50ohm straight SMA for connector 2, Cable is 50ohm 086.
Specifications
| ELECTRICAL DATA | |
| Connector 1 Series | RP SMA |
| Connector 1 Style | Str Female |
| Cable Type | 086 |
| Connector 2 Series | RP SMA |
| Connector 2 Style | Str Female |
| Contact Termination | Solder |
| Shield Termination | / |
| Impedance (Ohms) | 50 |
| Low PIM | No |
| Max Frequency | 6GHz |
| Working Temperature | -65°C to +165°C |
| MATERIAL DATA | |
| Body Material |
Brass |
| Body Finish |
Nickel/Gold |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material | PTFE |
Applications
- Used as an RF Test Probe to 6 GHz
- RF PCB board measurements
- Signal injection
