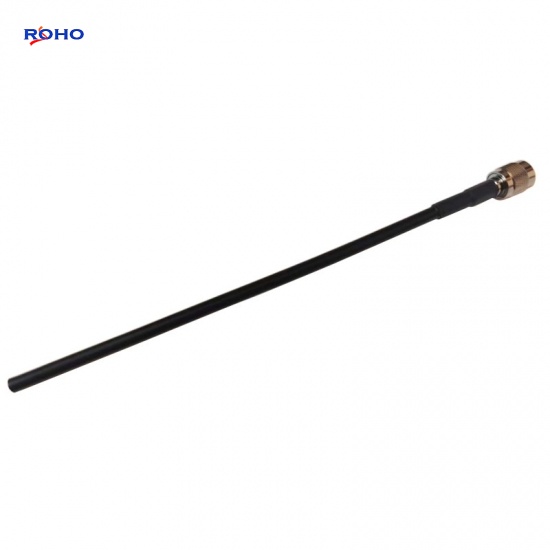

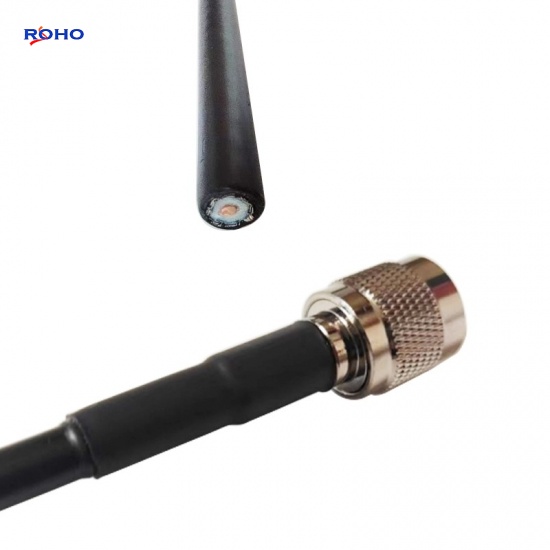

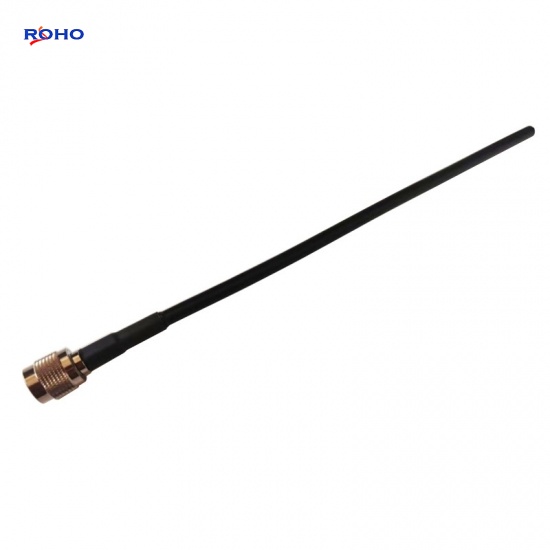

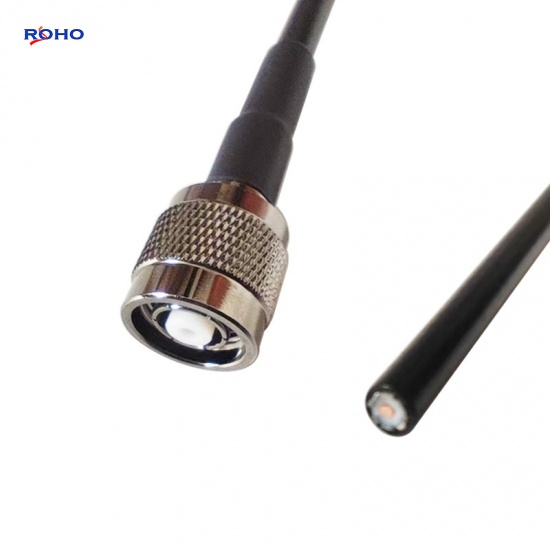

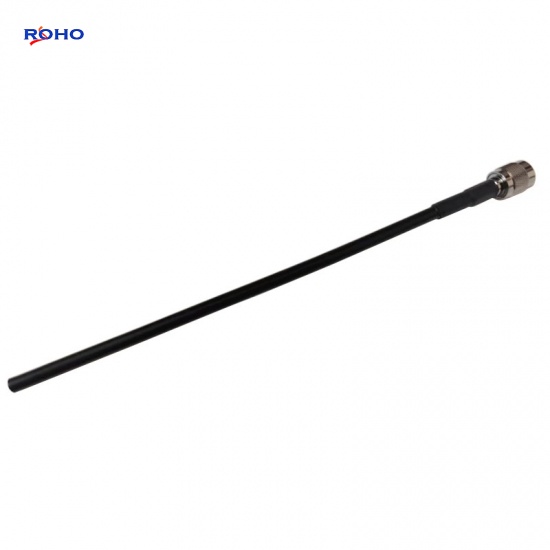

RP TNC Male Black Plated RF Coaxial Connector Cable Assembly with LMR240 Cable
The TNC cable assembly can use flexible, formable or semirigid coaxial cable such as LMR195、LMR240、LMR400、RG142、RG174、RG178、RG188、RG213、RG214、RG223、RG316、RG393、RG400、RG401、RG402、RG58、RG8; the body of TNC with cable assembly is right angle or straight connectors which is female with cable or male with cable. This RP TNC male with cable assembly uses a 50ohm straight RP TNC for connector 1 and cable is a 50ohm flexible LMR240.
Specifications
| ELECTRICAL DATA | |
| Connector 1 Series | RP TNC |
| Connector 1 Style | Str Male |
| Cable Type | LMR240 |
| Connector 2 Series | - |
| Connector 2 Style | - |
| Contact Termination | Solder |
| Shield Termination | Crimp |
| Impedance (Ohms) | 50 |
| Low PIM | Yes |
| Max Frequency | 3GHz |
| Working Temperature | -65°C to +165°C |
| MATERIAL DATA | |
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Automated Test Systems
- Airborne Systems
- Phased Arrays
- EW and Countermeasures
