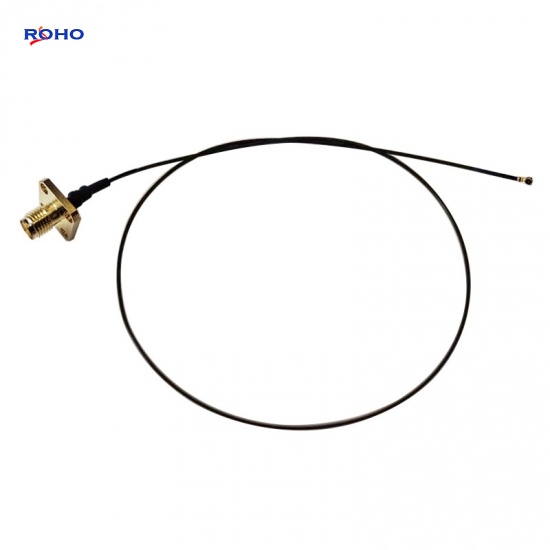

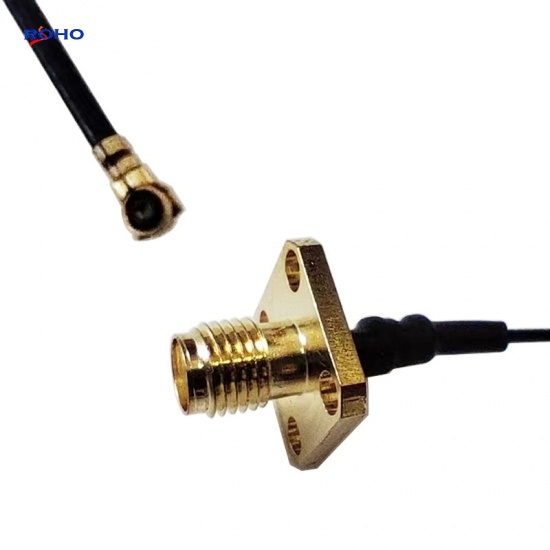

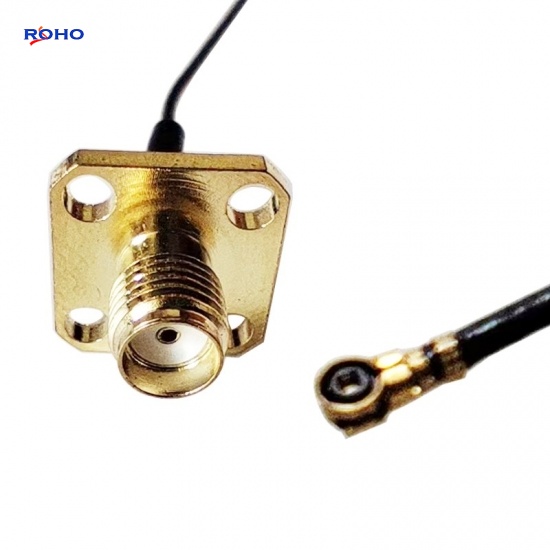

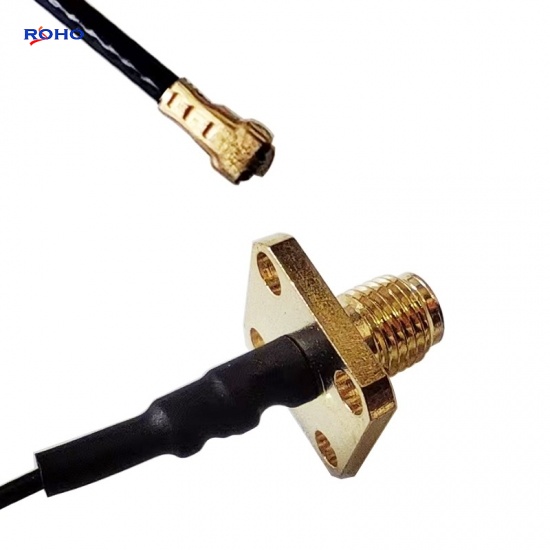

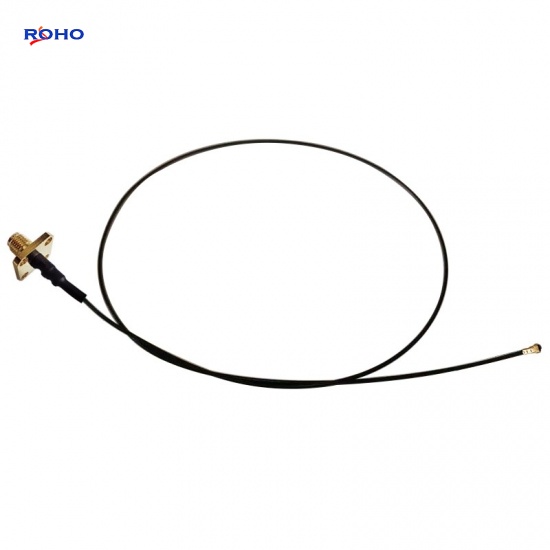

SMA Female SQ 12.7mm 4 Hole Flange to UFL4 IPEX4 MHF4 Connector Cable Assembly with 1.13mm Cable
The SMA cable assembly can use corrugated, flexible, formable or semirigid coaxial cablesuch as 0.81mm, 1.13mm, 1.37mm, 1/4" Superflexible, LMR100, LMR-195, LMR200, LMR-240, LMR400, RG141, RG142, RG174, RG178, RG179, RG180, RG187, RG188, RG196, RG213, RG214, RG223, RG303, RG316, RG393, RG400, RG401, RG402, RG405, RG55, RG58, RG59, RG62, RG8, TFT-402 or Tinned 047 cable; the body of SMA to MHF4 cable assembly is right angle or straight connectors which is female to jack, female to plug, male to jack or male to plug gender. This SMA female to MHF4 plug cable assembly uses a 50ohm 4 hole flange SMA for connector 1 and a 50ohm straight MHF4 for connector 2, Cable is 50ohm 1.13mm.
Specifications
| ELECTRICAL DATA | |
| Connector 1 Series | SMA |
| Connector 1 Style | Female |
| Cable Type | 1.13mm Cable |
| Connector 2 Series | UFL4 / IPEX4 / MHF4 |
| Connector 2 Style | Str Plug |
| Contact Termination | Solder |
| Shield Termination | Crimp |
| Impedance (Ohms) | 50 |
| Low PIM | No |
| Max Frequency | 6GHz |
| Working Temperature | -65°C to +165°C |
| MATERIAL DATA | |
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material | PTFE |
Applications
- Used as an RF Test Probe to 6 GHz
- RF PCB board measurements
- Signal injection
