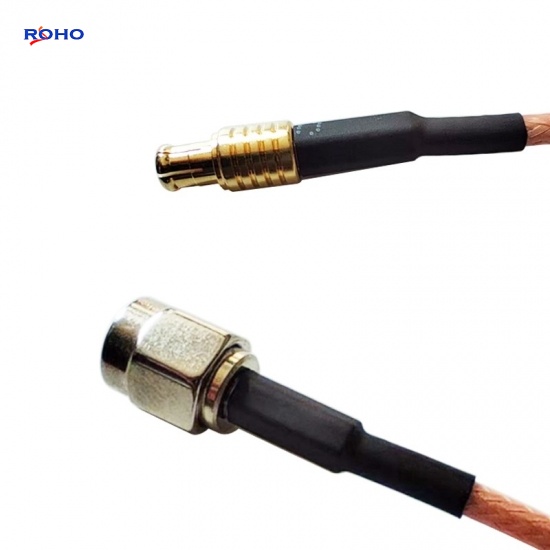

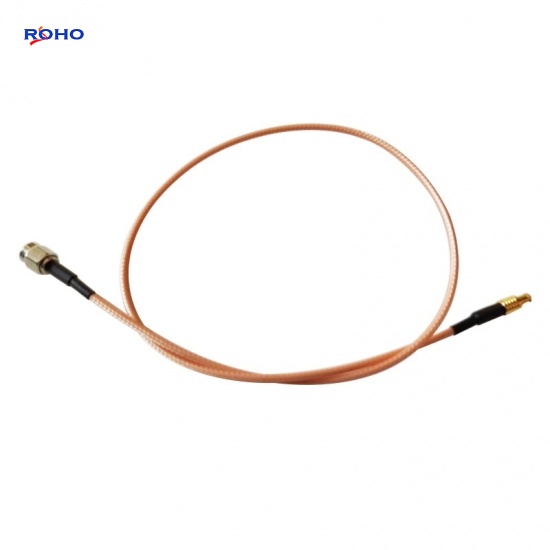

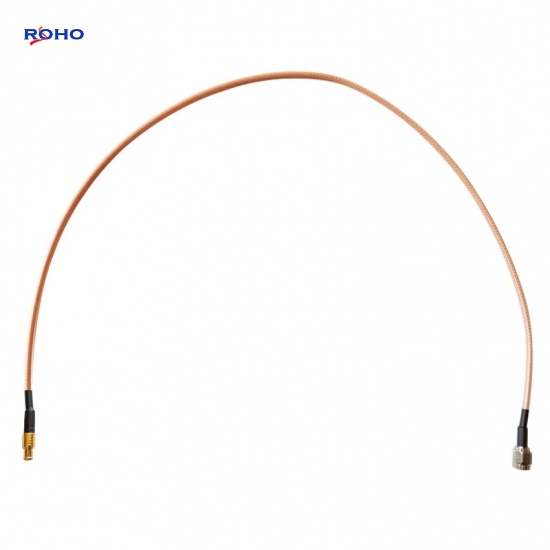

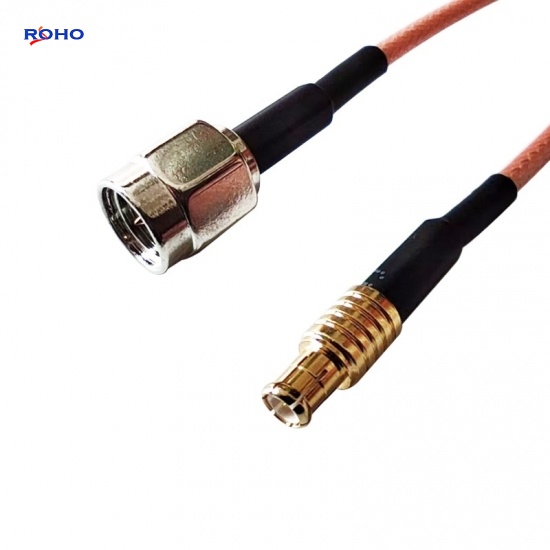

SMA Male to MCX Male Plug Connector Cable Assembly with RG316 Cable
The SMA cable assembly can use corrugated, flexible, formable or semirigid coaxial cablesuch as 0.81mm, 1.13mm, 1.37mm, 1/4" Superflexible, LMR100, LMR-195, LMR200, LMR-240, LMR400, RG141, RG142, RG174, RG178, RG179, RG180, RG187, RG188, RG196, RG213, RG214, RG223, RG303, RG316, RG393, RG400, RG401, RG402, RG405, RG55, RG58, RG59, RG62, RG8, TFT-402 or Tinned 047 cable; the body of SMA to MCX cable assembly is right angle or straight connectors which is female to jack, male to to jack, female to to plug or male to plug gender. This SMA male to MCX plug cable assembly uses a 50ohm straight SMA for connector 1 and a 50ohm straight N type for connector 2, Cable is 50ohm RG316.
Specifications
| ELECTRICAL DATA | |
| Connector 1 Series | SMA |
| Connector 1 Style | Str Male |
| Cable Type | RG316 |
| Connector 2 Series | MCX |
| Connector 2 Style | Str Plug |
| Contact Termination | Solder |
| Shield Termination | Solder |
| Impedance (Ohms) | 50 |
| Low PIM | No |
| Max Frequency | 6GHz |
| Working Temperature | -65°C to +165°C |
| MATERIAL DATA | |
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material | PTFE |
Applications
- Used as an RF Test Probe to 6 GHz
- RF PCB board measurements
- Signal injection
