SMA Cable Assemblies

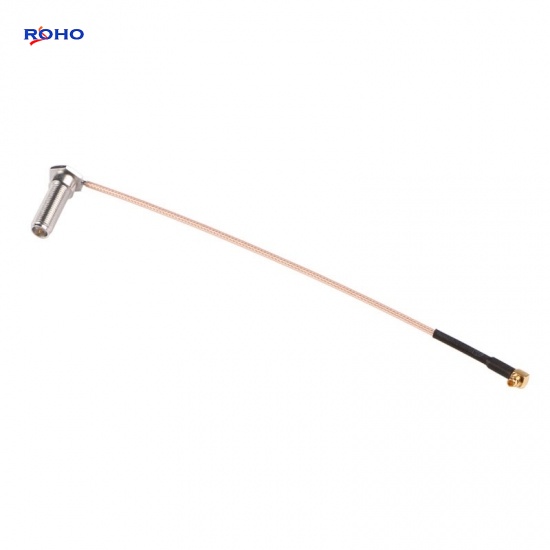

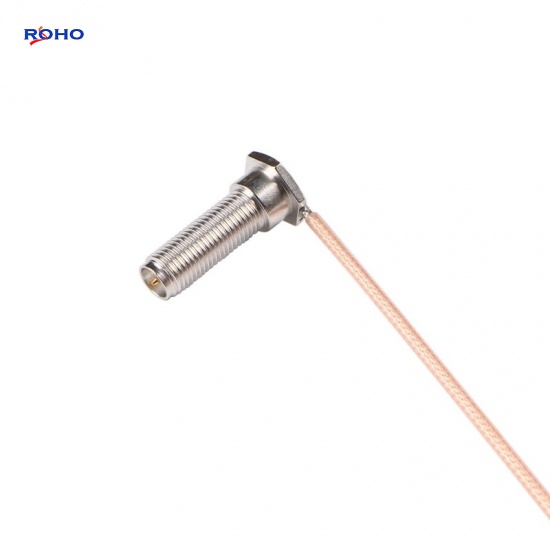

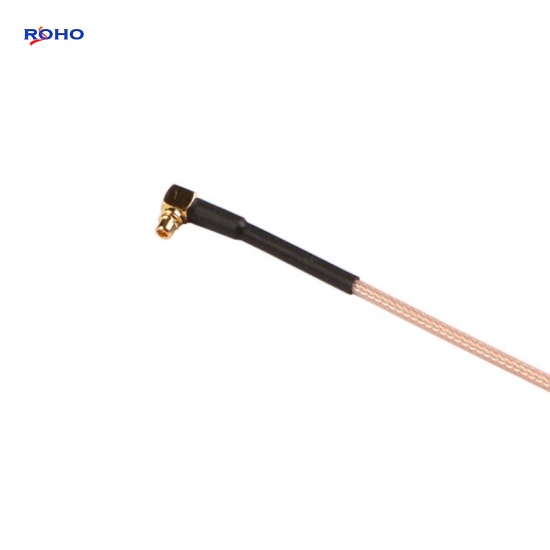

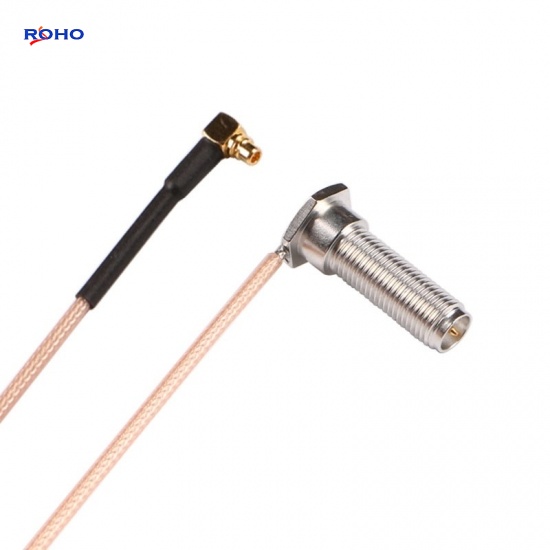

SMA Right Angle Male to MMCX Right Angle Plug RF Coaxial Connector Cable Assembly with RG316 Cable

SMA Cable assembly Features:

  • Can be combined with 1.85mm, 2.4mm, 2.92mm, 3.5mm, 4.3-10, 7-16 DIN, BNC, FAKRA, MCX, MMCX, N, NEX10, QMA, QN, SMA, SMB, SMP, TNC, Trimmed Lead or U.FL connectors;
  • Body Can be 2 hole panel, 4 hole panel, bulkhead or standard mount connectors;
  • Body Can be right angle or straight connectors;
  • Cable Can use corrugated, flexible, formable or semirigid cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

SMA Right Angle Male to MMCX Right Angle Plug RF Coaxial Connector Cable Assembly with RG316 Cable



The SMA cable assembly can use corrugated, flexible, formable or semirigid coaxial cablesuch as 0.81mm, 1.13mm, 1.37mm, 1/4" Superflexible, LMR100, LMR-195, LMR200, LMR-240, LMR400, RG141, RG142, RG174, RG178, RG179, RG180, RG187, RG188, RG196, RG213, RG214, RG223, RG303, RG316, RG393, RG400, RG401, RG402, RG405, RG55, RG58, RG59, RG62, RG8, TFT-402 or Tinned 047 cable; the body of SMA to MMCX cable assembly is right angle or straight connectors which is female to jack, female to plug, male to jack or male to plug gender. This SMA male to MMCX plug cable assembly uses a 50ohm right angle SMA for connector 1 and a 50ohm right angle MMCX for connector 2, Cable is 50ohm RG316.



Specifications

ELECTRICAL DATA
Connector 1 Series SMA
Connector 1 Style RA Male
Cable Type RG316
Connector 2 Series MMCX
Connector 2 Style RA Plug
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM No
Max Frequency 3GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material PTFE



Applications

  • Used as an RF Test Probe to 6 GHz
  • RF PCB board measurements
  • Signal injection
