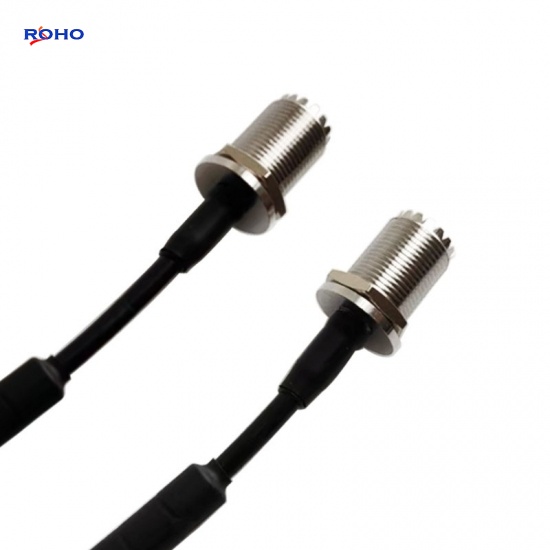

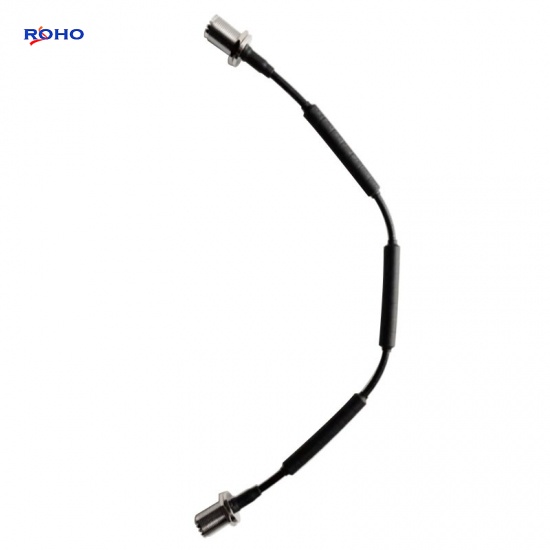

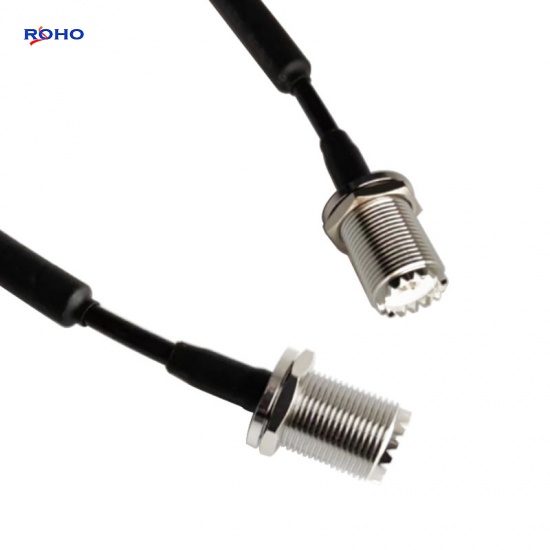

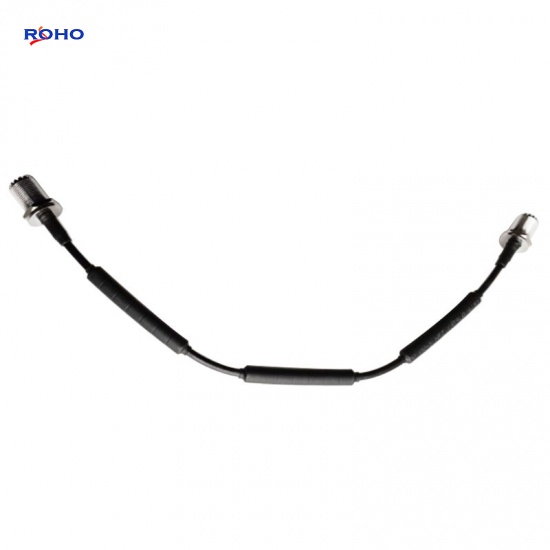

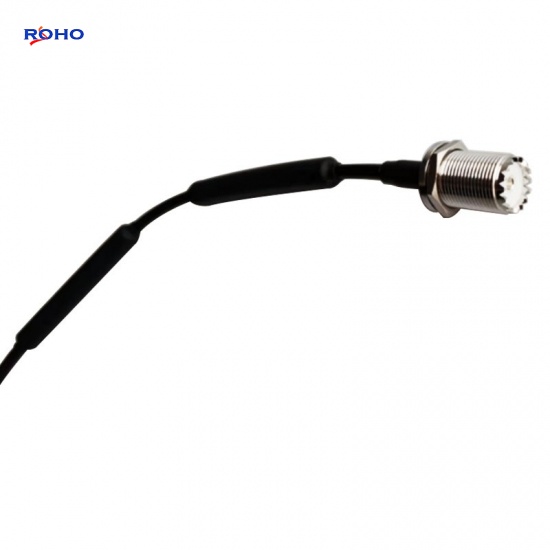

SO239 UHF Female Bulkhead to UHF Female Bulkhead Cable Assembly with LMR195 Cable with Ferrite Beads
The UHF cable assembly can use flexible, formable or semirigid coaxial cable such as RG142, RG213, RG214, RG223, RG393, RG400, RG58, RG59, RG8 LMR195; the body of UHF to UHF cable assembly is straight connectors which is female to female, female to male, male to female or male to male gender. This UHF female to UHF male cable assembly uses a 50ohm straight UHF for connector 1 and a 50ohm straight UHF for connector 2, Cable is a 50ohm LMR195 cable with ferrite beads.
Specifications
| ELECTRICAL DATA | |
| Connector 1 Series | UHF |
| Connector 1 Style | Str Female |
| Cable Type | LMR195 |
| Connector 2 Series | UHF |
| Connector 2 Style | Str Female |
| Contact Termination | Solder |
| Shield Termination | Crimp |
| Impedance (Ohms) | 50 |
| Low PIM | Yes |
| Max Frequency | 300 MHz |
| Working Temperature | -65°C to +165°C |
| MATERIAL DATA | |
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Antenna analyzer
- Radio scanner
- Ham radio transceiver
- SWR meter
- CB radio handheld
- Antenna tuner
