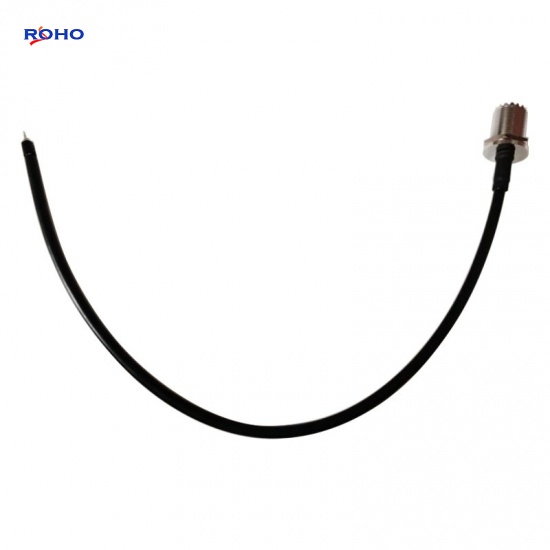

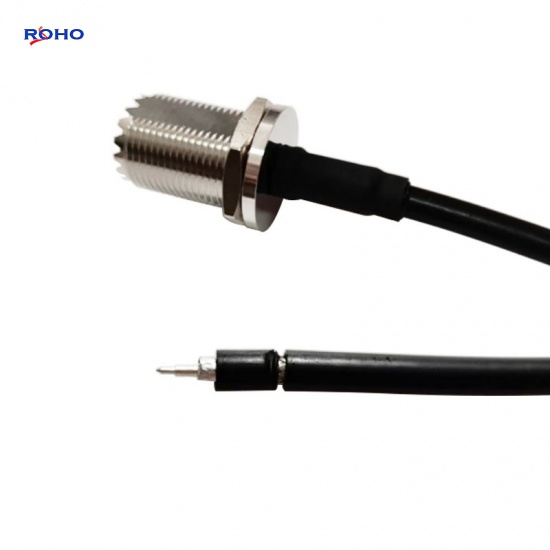

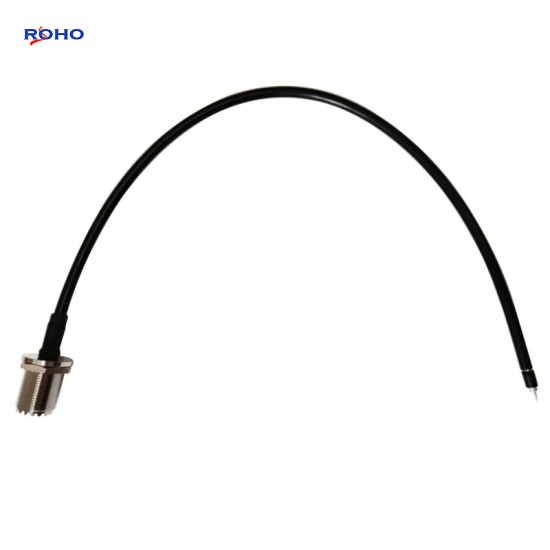

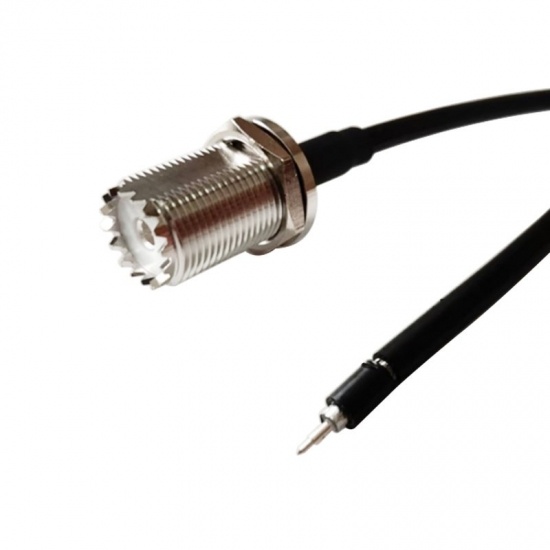

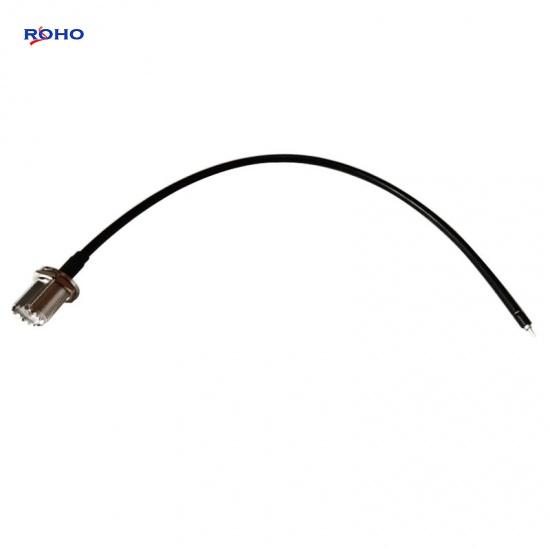

UHF Female Bulkhead Connector Cable Assembly with LMR195 Coaxial Cable
The UHF cable assembly can use flexible, formable or semirigid coaxial cable such as RG142, RG213, RG214, RG223, RG393, RG400, RG58, RG59, RG8 LMR195; the body of UHF with cable assembly can be right angle or straight connectors which is female with cable or male with cable. This UHF female with cable assembly uses a 50ohm straight UHF for connector, and cable is a 50ohm LMR195 cable.
Specifications
| ELECTRICAL DATA | |
| Connector 1 Series | UHF |
| Connector 1 Style | Str Female |
| Cable Type | LMR195 |
| Connector 2 Series | - |
| Connector 2 Style | - |
| Contact Termination | Solder |
| Shield Termination | Crimp |
| Impedance (Ohms) | 50 |
| Low PIM | Yes |
| Max Frequency | 300 MHz |
| Working Temperature | -65°C to +165°C |
| MATERIAL DATA | |
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Antenna analyzer
- Radio scanner
- Ham radio transceiver
- SWR meter
- CB radio handheld
- Antenna tuner
