UHF Cable Assemblies

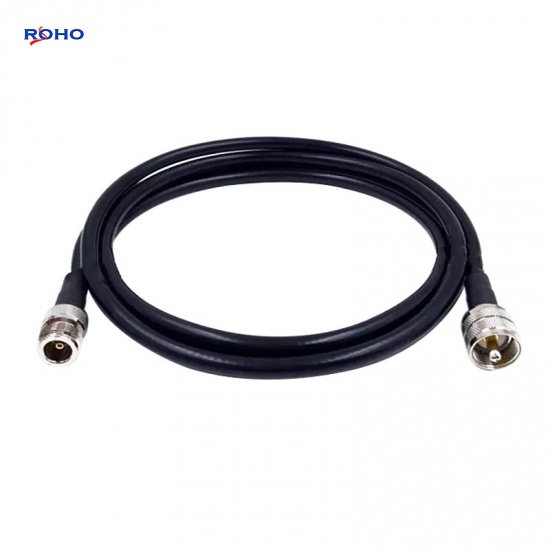

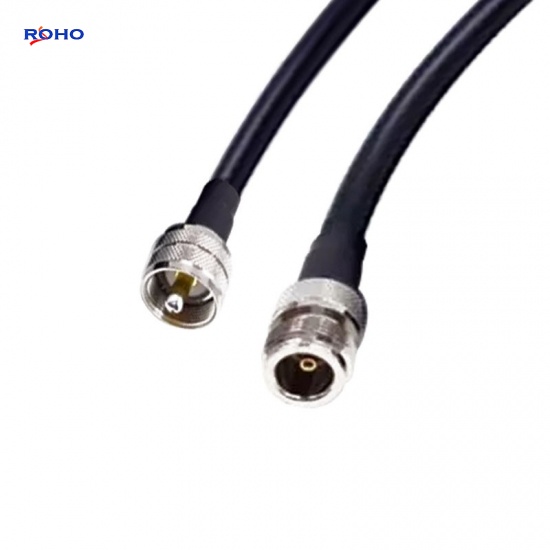

UHF PL259 Male to N Female Coaxial Connector Cable Assembly with LMR300 Cable

UHF Cable assembly Features:

  • Can be combined with BNC, N or UHF connector;
  • Cable use flexible cable;
  • Body is straight with male genders.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

UHF PL259 Male to N Female Coaxial Connector Cable Assembly with LMR400 Cable



The UHF cable assembly can use flexible, formable or semirigid coaxial cable such as RG142, RG213, RG214, RG223, RG393, RG400, RG58, RG59, RG8; the body of UHF to N cable assembly  is straight connectors which is female to female, female to male, male to female or male to male gender. This UHF male to N female cable assembly uses a 50ohm Straight UHF for connector 1 and a 50ohm Straight UHF for connector 2, Cable is a 50ohm LMR400.



Specifications

ELECTRICAL DATA
Connector 1 Series UHF
Connector 1 Style Str Male
Cable Type LMR400
Connector 2 Series N
Connector 2 Style Str Female
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM Yes
Max Frequency 300 MHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Antenna analyzer
  • Radio scanner
  • Ham radio transceiver
  • SWR meter
  • CB radio handheld
  • Antenna tuner
