UHF Cable Assemblies

UHF PL259 Male to BNC Male RF Connector Cable Assembly with RG58 Cable

UHF Cable assembly Features:

  • Can be combined with BNC, N or UHF connector;
  • Cable use flexible cable;
  • Body is straight with male genders.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

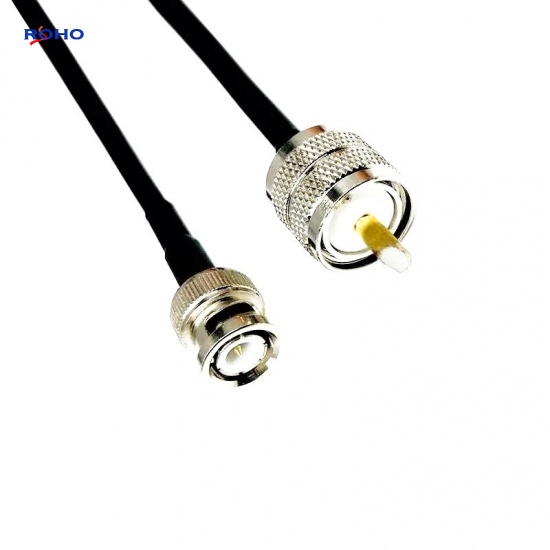

UHF PL259 Male to BNC Male RF Connector Cable Assembly with RG58 Cable



The UHF cable assembly can use flexible, formable or semirigid coaxial cable such as RG142, RG213, RG214, RG223, RG393, RG400, RG58, RG59, RG8; the body of UHF to BNC cable assembly  is straight connectors which is female to female, female to male, male to female or male to male gender. This UHF male to BNC male cable assembly uses a 50ohm Straight UHF for connector 1 and a 50ohm Straight BNC for connector 2, Cable is a 50ohm RG58.



Specifications

ELECTRICAL DATA
Connector 1 Series UHF
Connector 1 Style Str Male
Cable Type RG58
Connector 2 Series BNC
Connector 2 Style Str Male
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM Yes
Max Frequency 300 MHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Antenna analyzer
  • Radio scanner
  • Ham radio transceiver
  • SWR meter
  • CB radio handheld
  • Antenna tuner
