UHF Adaptors

UHF Female SO239 to N Female Straight RF Connector Adapter

TNC adapters Features:

  • Allow to interface UHF connectors with BNC, F, N, SMA, TNC or UHF connectors;
  • Has female to female, female to male, male to female, male to male or male to plug gender combinations;
  • Has straight or right angle sharp;
  • Has bulkhead or mountless configurations;
  • Threaded coupling;
  • Ease of assembly;
  • Use in low frequency systems from 0.6 - 300 MHz.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

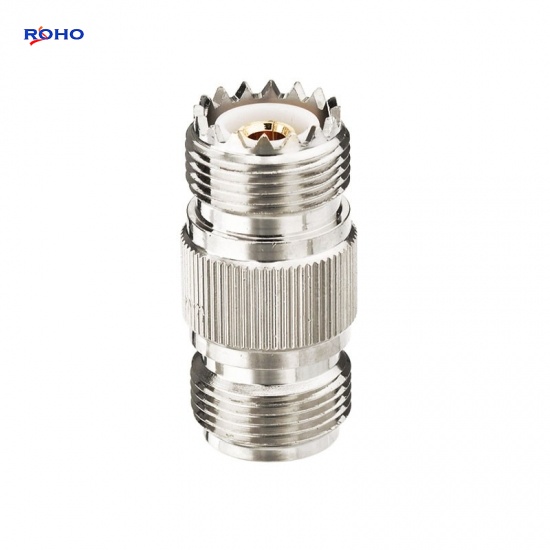

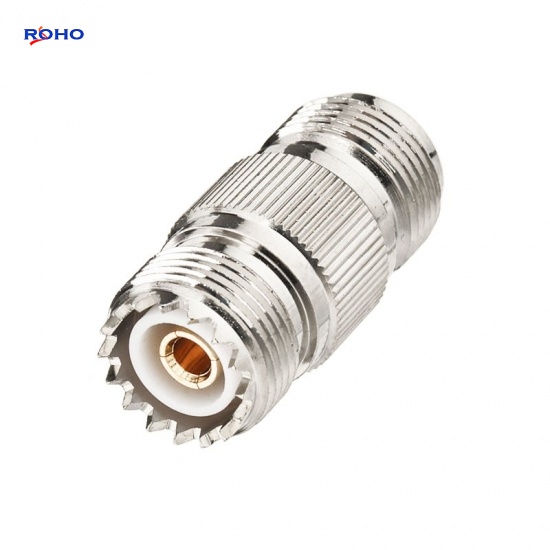

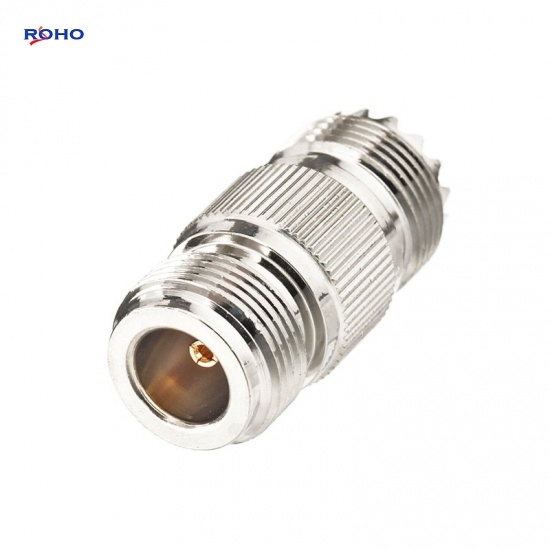

UHF Female SO239 to N Female Straight RF Connector Adapter



The UHF Adapter has different UHF to N adapter gender, that is between a series coaxial adapter, The UHF to N adapters has female to female, female to male, male to female or male to male gender. This UHF female to N female adapter has a maximum frequency of 300MHz, and is a straight body adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series UHF
Adapter Side 1 Style Female
Adapter Side 2 Series N
Adapter Side 2 Style Female
Frequency (Max GHz) 300MHz
Impedance (Ohms) 50
Low PIM No
Orientation Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material PTFE



Applications

  • Civil wave band communication system
  • Closed-circuit television
  • Car radio device products
  • General Purpose Test
