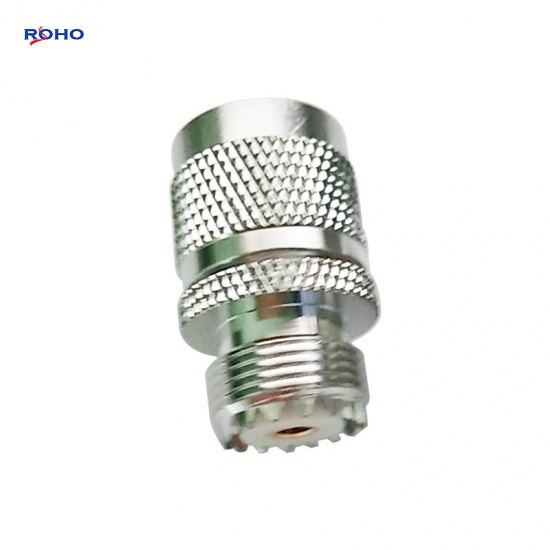

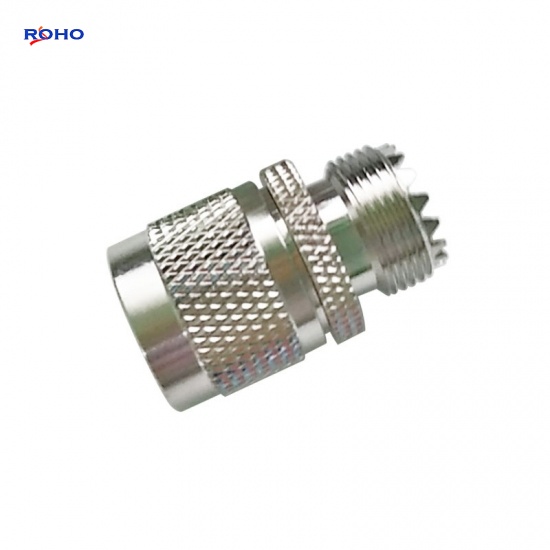

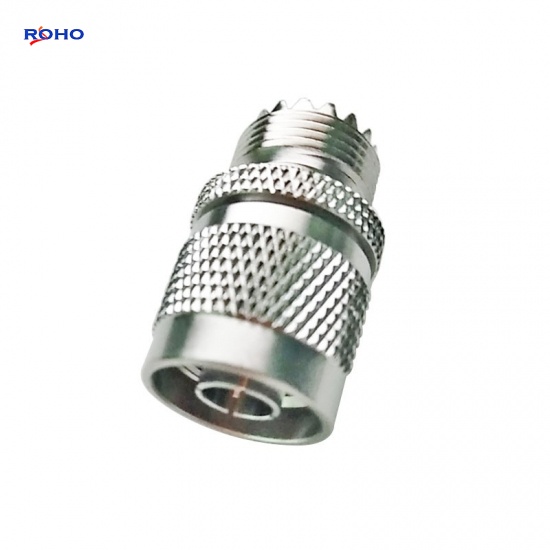

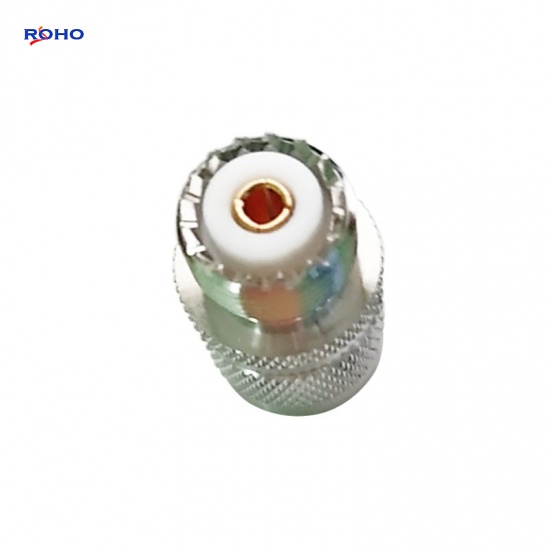

UHF Female SO239 to N Male Straight RF Connector Adapter
The UHF Adapter has different UHF to N adapter gender, that is between a series coaxial adapter, The UHF to N adapters has female to female, female to male, male to female or male to male gender. This UHF female to N male adapter has a maximum frequency of 300MHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA | |
| Adapter Side 1 Series | UHF |
| Adapter Side 1 Style | Female |
| Adapter Side 2 Series | N |
| Adapter Side 2 Style | Male |
| Frequency (Max GHz) | 300MHz |
| Impedance (Ohms) | 50 |
| Low PIM | No |
| Orientation | Straight |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| MATERIAL DATA | |
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material | PTFE |
Applications
- Civil wave band communication system
- Closed-circuit television
- Car radio device products
- General Purpose Test
