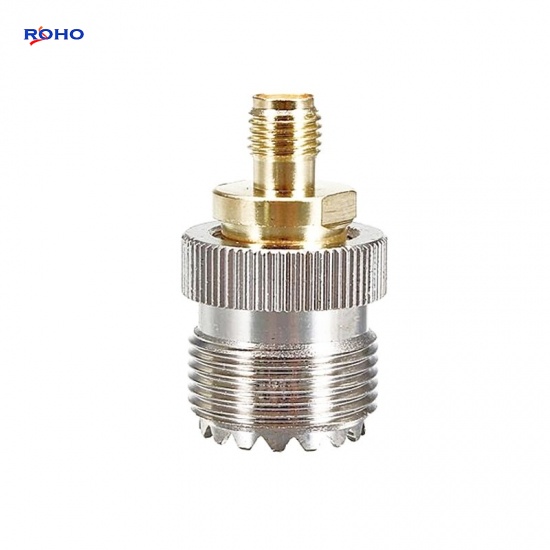

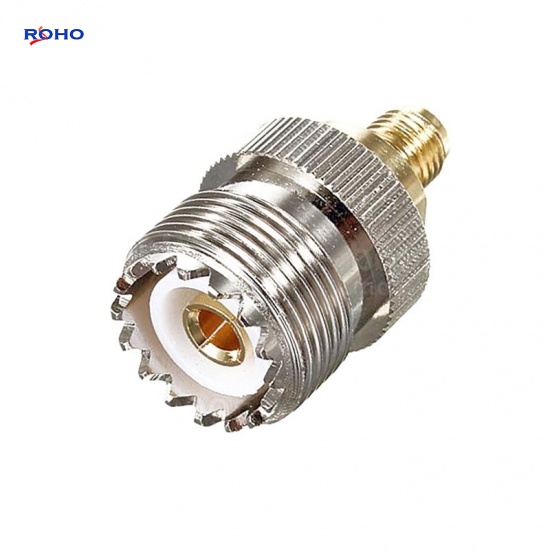

UHF Female SO239 to SMA Female Straight RF Connector Adapter
The UHF Adapter has different UHF to N adapter gender, that is between a series coaxial adapter, The UHF to SMA adapters has female to female, female to male, male to female or male to male gender. This UHF female to SMA female adapter has a maximum frequency of 300MHz, and is a straight body adapter.
Specifications
ELECTRICAL DATA | |
Adapter Side 1 Series | UHF |
Adapter Side 1 Style | Female |
Adapter Side 2 Series | SMA |
Adapter Side 2 Style | Female |
Frequency (Max GHz) | 300MHz |
Impedance (Ohms) | 50 |
Low PIM | No |
Orientation | Straight |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
MATERIAL DATA | |
Body Material |
Brass |
Body Finish |
Nickel/Ternary alloy |
Contact Material |
Phosphor Bronze/Beryllium Copper |
Contact Finish |
Gold/Silver |
Insulator Material | PTFE |
Applications
- Civil wave band communication system
- Closed-circuit television
- Car radio device products
- General Purpose Test
