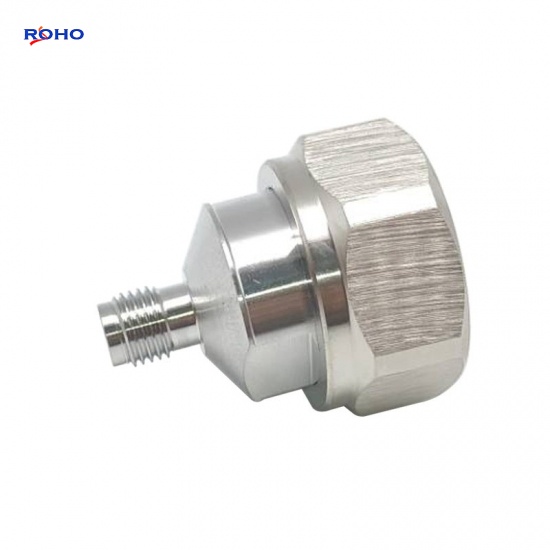

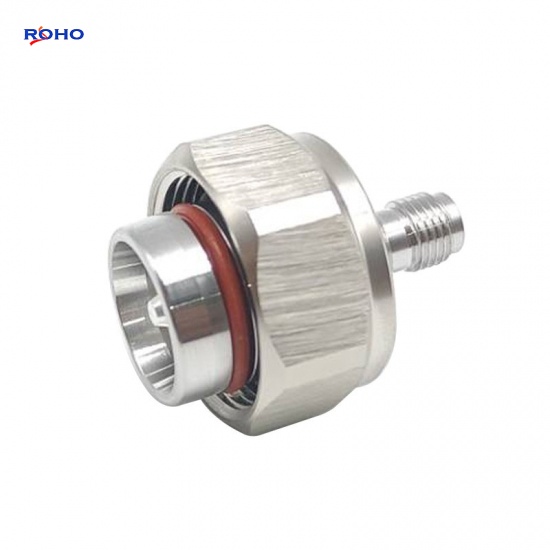

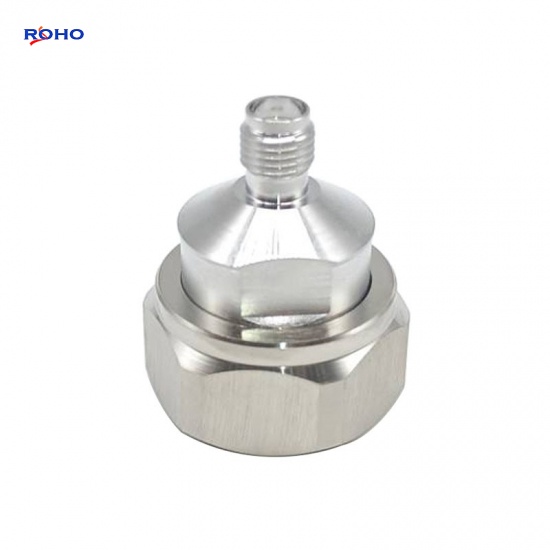

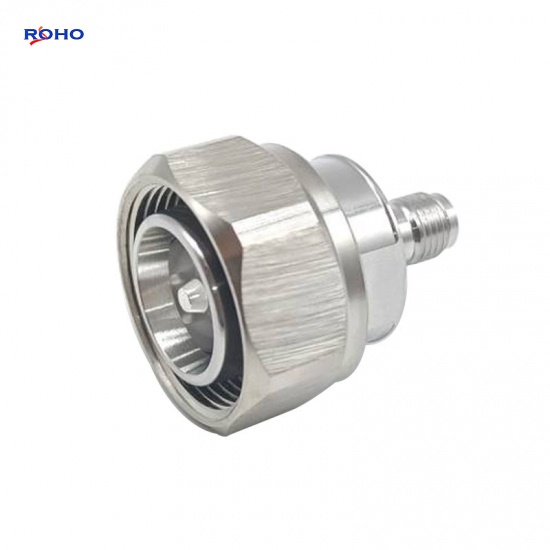

Low Pim 4.3-10 Male to SMA Female Straight RF Connector Adapter


4.3-10 Male to SMA Female RF Adapter
4.3-10 Male to SMA Female RF Adapter 4.3-10 Male to SMA Female RF Adapter 4.3-10 Male to SMA Female RF Adapter 4.3-10 Male to SMA Female RF Adapter

Low Pim 4.3-10 Male to SMA Female Straight RF Connector Adapter

4.3-10 adapters Features：

  • Allow to interface 4.3-10 connectors with N, 7/16 DIN, 4.3-10 or SMA connectors;
  • Same design as 7/16 connectors , smaller up to 40% lighter;
  • Designs IP67, and provide excellent VSWR performance up to 6GHz;
  • Very stable PIM performance, allowing for easier installation;
  • Silver plated contacts and White Bronze plated bodies offer a high-degree of conductivity, corrosion resistance, and durability;
  • Applications low passive intermodulation or PIM.

  • Brand:

    ROHO

  • Product Origin:

    China

  • Shipping Port:

    Shenzhen

  • Lead Time:

    7-17days
Inquiry Now

Low Pim 4.3-10 Male to SMA Female Straight RF Connector Adapter



The 4.3-10 Adapter has different 4.3-10 to SMA adapter gender.The 4.3-10 to SMA adapters has male to female or male to male gender.  it has straight body. ROHO offers 4.3-10 to SMA adapters in standard or low PIM designs. This 4.3-10 male to SMA female adapter has a maximum frequency of 6GHz, and is a straight body adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series 4.3-10
Adapter Side 1 Style Male
Adapter Side 2 Series SMA
Adapter Side 2 Style Female
Frequency (Max GHz) 6
Impedance (Ohms) 50
Low PIM Yes
Orientation Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
MATERIAL DATA
Body Material
 Brass
Body Finish
 Nickel/Ternary alloy
Contact Material
 Phosphor Bronze/Beryllium Copper
Contact Finish
 Gold/Silver
Insulator Material
 PTFE



Applications

  • Telecommunication installations
  • Mobile radio
  • Communication engineering
  • Radar applications
