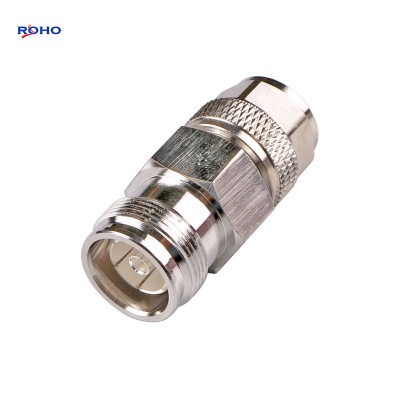

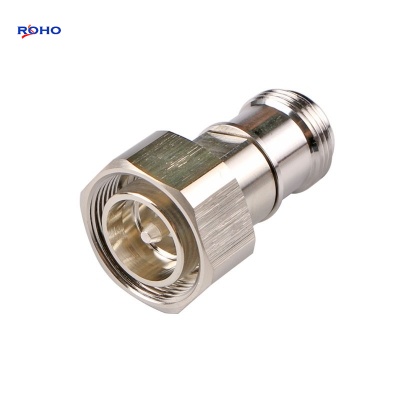

Low Pim 4.3-10 Mini Din Male to 7-16 Din Male RF Connector Adapter
The 4.3-10 Adapter has different 4.3-10 to 7-16 adapter gender.The 4.3-10 to 7-16 adapters has male to male, male to female, female to male or female to female gender. it has straight body. ROHO offers 4.3-10 to 7-16 adapters in standard or low PIM designs. This 4.3-10 male to 7-16 male adapter has a maximum frequency of 6GHz, and is a straight body adapter.
Specifications
ELECTRICAL DATA | |
Adapter Side 1 Series | 4.3-10 |
Adapter Side 1 Style | Male |
Adapter Side 2 Series | 7-16 DIN |
Adapter Side 2 Style | Male |
Frequency (Max GHz) | 6 |
Impedance (Ohms) | 50 |
Low PIM | Yes |
Orientation | Straight |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
MATERIAL DATA | |
Body Material |
Brass |
Body Finish |
Nickel/Ternary alloy |
Contact Material |
Phosphor Bronze/Beryllium Copper |
Contact Finish |
Gold/Silver |
Insulator Material |
PTFE |
Applications
- Telecommunication installations
- Mobile radio
- Communication engineering
- Radar applications
