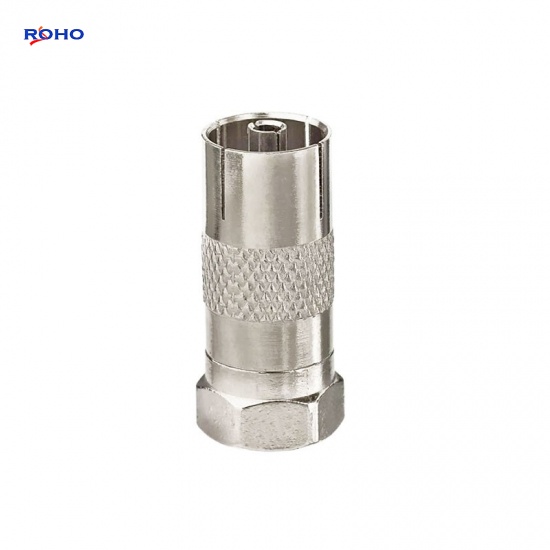

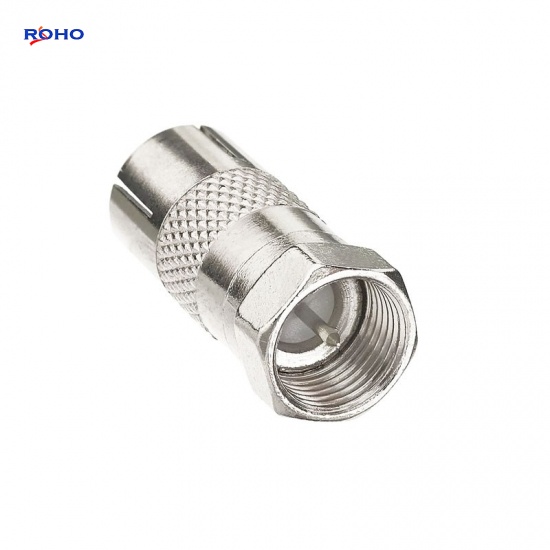

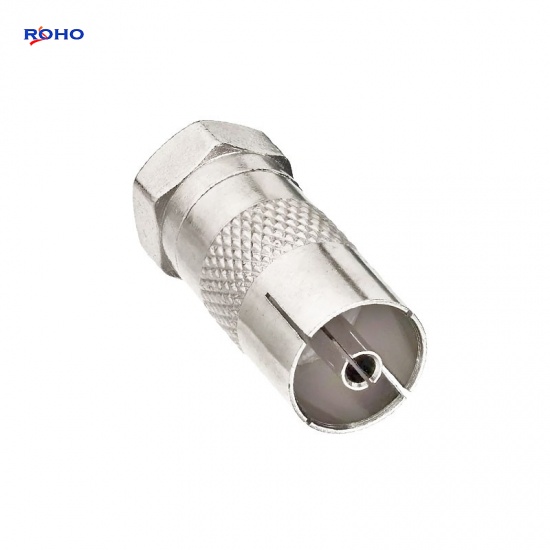

F Male to PAL Jack Female 75ohm TV Antenna Coaxial Adapter
The F Type Adapter has different F to PAL adapter gender, that is a between series coaxial adapter, The F to PAL adapters has female to jack, female to plug, male to jack or male to plug gender combinations. This F Type male to PAL jack adapter has a maximum frequency of 1GHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA | |
| Adapter Side 1 Series | F |
| Adapter Side 1 Style | Male |
| Adapter Side 2 Series | PAL |
| Adapter Side 2 Style | Jack |
| Frequency (Max GHz) | 1GHz |
| Impedance (Ohms) | 75 |
| Low PIM | No |
| Orientation | Straight |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| MATERIAL DATA | |
| Body Material |
Brass/Zinc Alloy |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Antennas DAB Aerial Adapter
- Coaxial Cables
- Radio Scanners
- Ham Radio Transceivers
- CB Radio Handheld&Amateur Radio Transceivers
- CB Radio Handheld&Amateur Radio
