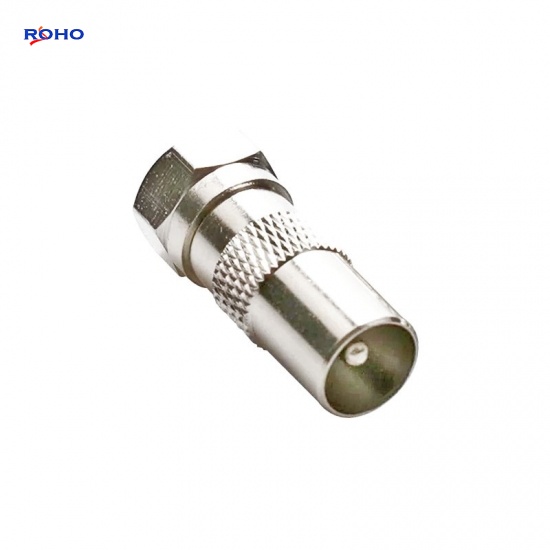

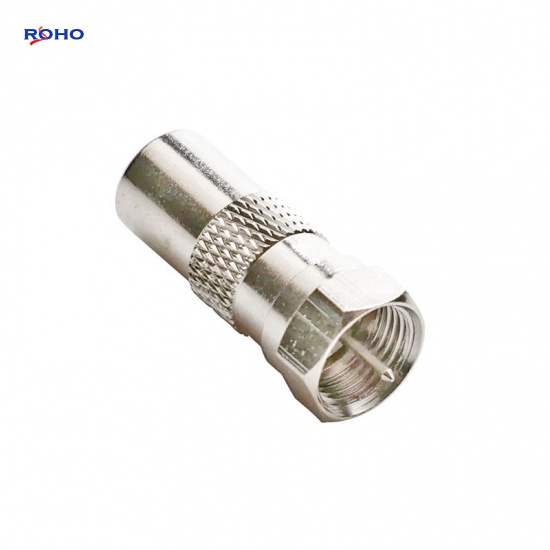

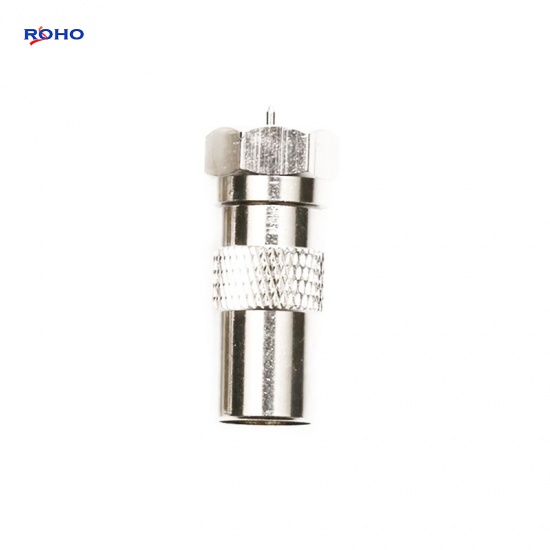

F Male to PAL Plug Male 75ohm TV Antenna Coaxial Adapter
The F Type Adapter has different F to PAL adapter gender, that is a between series coaxial adapter, The F to PAL adapters has female to jack, female to plug, male to jack or male to plug gender combinations. This F Type female to PAL plug adapter has a maximum frequency of 1GHz, and is a straight body adapter.
Specifications
ELECTRICAL DATA | |
Adapter Side 1 Series | F |
Adapter Side 1 Style | Male |
Adapter Side 2 Series | PAL |
Adapter Side 2 Style | Plug |
Frequency (Max GHz) | 1GHz |
Impedance (Ohms) | 75 |
Low PIM | No |
Orientation | Straight |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
MATERIAL DATA | |
Body Material |
Brass/Zinc Alloy |
Body Finish |
Nickel/Ternary alloy |
Contact Material |
Phosphor Bronze/Beryllium Copper |
Contact Finish |
Gold/Silver |
Insulator Material |
PTFE |
Applications
- Antennas DAB Aerial Adapter
- Coaxial Cables
- Radio Scanners
- Ham Radio Transceivers
- CB Radio Handheld&Amateur Radio Transceivers
- CB Radio Handheld&Amateur Radio
