From the application field, the largest market segment of RF connector adapters is telecommunications or data communication, consumer electronics and electronic computers and peripheral equipment.The second is automobile, industrial automation and instrumentation.connector adapters are less important in China's domestic market than globally;The third largest market is medical equipment, aerospace military, railway and traffic control, and power supply and distribution equipment.      The importance of RF coaxial connector adapters in electronic systems is often underestimated.Many designers of electronic systems have had similar experiences: using the cheapest connector, but often ending up paying more.Faulty connector selection and use can result in system failure, product recall, product liability cases, circuit board damage, rework and repair, which in turn can lead to sales and customer loss.Therefore, in the design of electronic products, please do not underestimate the importance of connector adapters, or it will only be penny wise and pound foolish.The importance of selecting a suitable connector for electronic devices can be seen.     So, how do you choose a connector adapters?Due to the impact of the economic crisis, cost will be taken into account in the design, but in addition, more attention should be paid to the high quality and stability of the product, as well as the design characteristics of the connector itself.I think the following aspects of the innovative design of ERNI connector can provide some reference for electronic designers:     First: the idea of dual-rod design.In the ERNI connector series, the dual rod design idea runs through the whole process.Figuratively speaking, the double bar design can be described as "kill two birds with one stone".Optimized terminal design ADAPTS to high speed signal transmission and provides higher directional tolerance.In comparison of inductance, capacitance, impedance, etc., the two-bar terminal structure is reduced for high-speed applications and optimized to minimize discontinuity.The dual rod design allows multiple connector adapters to be placed on a single circuit board without plug or short circuit problems, eliminating the need for a large number of signals on a single connector.The simple wiring of the two rods can save space, make the connector smaller and simplify the detection of welding pins.Like 12 on a board.It also reduces rework costs.Practical applications such as telecommunication end-user equipment.     Second: design of pin without depression in assembly process.Traditional stamping will cause bending or deformation pin due to improper handling, the bending process will cause capillary cracks, from the long-term product is not desirable, but also affect the circuit performance and cost.ERNI USES the direct stamping to the bending Angle, the stamping terminal can avoid the capillary crack caused by the ben...

    Main name:     The main nomenclature of the RF coaxial connector adopts the international common nomenclature nomenclature, and the nomenclature of the different structural forms of the specific product is specified by the detailed specification.     Structural form code:     Table 1: classification of structural forms and codes (separated by "-")     Example of model composition of RF connector:     Example 1: SMA-JW3 represents SMA connector bent radio frequency plug, the conductor of the plug is the pin contact, with syv-50-2-1, RG316/RG316D, sff-50-1.5-1 and other radio frequency cables.     Example 2: SMA - 75 JHD said SMB straight type ha ha the impedance of the condensation on the circuit board is 75 Ω radio frequency socket.     Model name and composition of adapter:     Adaptor and impedance adaptor models are derived from the plug or socket models. Generally, the main designation of the adaptor model is indicated by the connector master designation (within the series adaptor) or in the form of a score (between the series adaptor).     Case 1: SMA - JK said adapter in the SMA type 50 Ω series, end of the needle of the side hole for contact and contact.     Case 2: N/SMA - JK says end for N type needle contact element, the other end for SMA type hole contact element, the impedance of 50 Ω adapter.     Example 3: SMB said end of 50 to 50 j / 75 k Ω needle contact element, the other end of the 75 Ω hole contact type of SMB adapter.

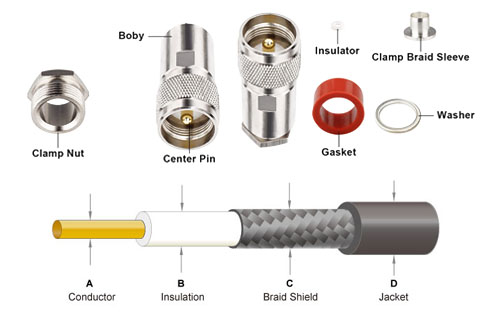

    Many customers do not know how to weld after purchasing a part of the N type rf coaxial connector. In this regard, ROHO will teach you step by step to practice the welding knowledge of N type RF coaxial connector.     Step 1: peel the cable and decompose the N connector, put on the connector, gasket and washer.     Step 2: install the gasket on the shielding first.     Step 3: peel off the insulation of the exposed wire.     Step 4: Put a pin on it, not too long or too short.     Step 5: put the main body of the connector and observe the correct position of the pin.     Step 6:Tighten with a wrench.

    The waterproof RF coaxial connector is usually working in the water.and they are waterproof. The power cable and net cable can be put in their internal.They can not only provide normal and reliable power,single transmission,but also can be waterproof ans dust-proof.     At present.The standard for waterproof is according to IP waterproof grade standard.You can see the number XX after IPXX to estimate the waterproof performance, The first number X is from zero to six.the maximum is 6,The second number is from zero to eight,so the maximum waterproofing grade is IP68.     With the development of technology,We use many application in our daily life.And the thing with electric are not very good at our safety.so It’s very important if the the application is waterproof.The waterproof connector has excellent sealing performance,reliable waterproof performance,For example,some device need to be fixed in the water or at the button of the water,Then if we use waterproof RF coaxial connectors,we don’t need to worry about the water especially the water contains many chemical substances destroy the devices.     The appearance of waterproof RF connector can be said to be a great blessing for us,It is widely used,We use waterproof RF coaxial connectors in many areas.Like in an industrial environment,LED lighting, urban outdoor lighting project, lighthouse, cruise ship, aviation, industrial equipment, cable, sprinkler and so on.which are all use waterproof connectors.Military field due to the application of strict requirements,Many waterproof connector are used, such as submarine connector, submarine-launched missile connector and so on.

    The basic properties of RF connectors can be divided into three categories: mechanical, electrical, and environmental.Another important mechanical property is the mechanical life of the connector. Mechanical Life is actually a durability indicator, they are referred to as mechanical operation in NATIONAL standard GB5095.It takes one insert and one pull out as a cycle, and judges whether the RF coaxial connector can normally complete its connecting function (such as contact resistance value) after the specified insert and pull cycle.     1.Mechanical property As far as connection function is concerned, plug and pull force is an important mechanical property.Plug and pull force is divided into insertion force and pull out force (pull out force is also called separation force), the two requirements are different.In the relevant standards, the maximum insertion force and minimum separation force are stipulated, which indicates that, from the perspective of use, the insertion force should be small (hence the structure of low insertion force LIF and no insertion force ZIF), while the separation force if too small will affect the reliability of contact.The plug and pull force and mechanical life of the connector are related to the coating quality (sliding friction coefficient) of the contact part and the dimension precision (alignment) of the contact part.      2.Electrical Properties The main electrical properties of connectors include contact resistance, insulation resistance and electrical strength.      (1) High quality electrical connectors should have low and stable contact resistance.The contact resistances of connectors vary from a few to tens of milliohms.      (2) Insulation resistance measures the insulation performance between the contacts of electrical connectors and between the contacts and the housing. Its order of magnitude varies from hundreds to thousands of megohm.      (3) The electrical strength, or voltage and dielectric resistance, is the ability to withstand the rated test voltage between the connector contacts or between the contacts and the housing.      Other electrical properties.Electromagnetic interference leakage attenuation is used to evaluate the electromagnetic interference shielding effect of the connector, which is generally tested within the range of 100MHz~10GHz frequency.For RF coaxial connectors, there are electrical indicators such as characteristic impedance, insertion loss, reflection coefficient, voltage standing wave ratio (VSWR), etc.Due to the development of digital technology, in order to connect and transmit high-speed digital pulse signals, a new type of connector, namely high-speed signal connector, has appeared. Correspondingly, in terms of electrical performance, in addition to characteristic impedance, some new electrical indicators have appeared, such as Crosstalk, transmission delay, and delay.  ...

    It is estimated that in 2010, China's MCX RF connector market has reached 25.7 billion yuan. Now the market size of mcx connectors is growing at an average annual rate of 15%. What is the size of the MCX connector?     1, the impact of product structure on the quotation MCX connector wholesale is generally the company procurement, for product understanding, slightly poor, the product structure also has an impact on product quotation. MCX connector is a push-in connection structure, small size It is a convenient and fast RF coaxial connector with characteristic impedance of 50Ω and 75Ω. However, the appearance of the structure, the difficulty for manufacturers, such as elbows, heterosexual head.    2, the performance of the wholesale quotation has a large impact on the VSWR and insertion loss, mechanical parameters and other performance, different VSWR price difference is different, relatively speaking, the communication field is higher than the performance requirements of other fields in the application.     3, the impact of environmental requirements on the quotation Corrosion resistance, temperature tolerance, etc., ROHO can accept different environmental requirements, such as the current salt-mouse experiment  on the product is 720 hours. Of course, the requirements for different environments are naturally different.     As shown in Figure 4, the difference in materials affects the price of the quotation material directly affects the wholesale price of the MCX connector. The higher the material requirements, the higher the raw material cost of the manufacturer, and the better the material performance.     The above points can be used as a reference for the wholesale purchase of MCX connectors. ROHO has been focusing on RF connection, and its products are used in communications, radio frequency identification, automotive, medical, aviation, data storage, network signal transmission, military and other fields. If you still want to know some specific information about MCX connector wholesale, you can contact us to purchase small customer service, ready to answer your questions!

    What is the difference between the use of BNC RF connectors and SMA connectors, and is it really important whether the characteristic impedance is 50 or 75? Can’t they be mixed?     SMA connector     The applicable frequency range is 0 ~ 18GHz. It is an ultra-small, suitable for semi-rigid or flexible RF coaxial cable connection. It has the characteristics of small size, superior performance, high reliability and long service life. However, the ultra-small connector is easy to be damaged in engineering, which is suitable for microwave applications that require high performance, such as the internal connection of microwave equipment.     BNC connector     The applicable frequency range is 0 ~ 4GHz, which is a low-power coaxial cable connector with a bayonet connection mechanism. This connector can be quickly connected and separated, has the characteristics of reliable connection, good vibration resistance, convenient connection and separation, etc. It is suitable for occasions of frequent connection and separation, and is widely used to connect coaxial radio frequency cables in radio equipment and test instruments.     The characteristic impedance is very important, otherwise it will cause mismatch. When the impedance is matched, the maximum output power can be obtained and the equipment has the highest utilization efficiency. When the impedance does not match, the effective output power will be reduced. When the external impedance is equal to the internal impedance of the device, it will become impedance match.     You should understand the difference between the use of BNC connectors and SMA connectors. BNC connector and SMA connector are two different products, each of which has different uses, and there are also differences in performance, and cannot be mixed.

    Commonly used rf microwave devices are generally divided into: microwave diode, RF attenuation plate, amplifier.     Microwave diode generally refers to the working in the microwave frequency band of the diode, belongs to solid state microwave devices.The microwave band usually refers to the frequency range from 300MHZ to 3000GHZ.     Main parameters of microwave diode:     1. Cut-off frequency, which determines the maximum diode use frequency.     2. Frequency conversion loss, the ability to achieve diode frequency change, and diode characteristics, mixer circuit formation and working state is closely related.     3. The noise ratio is mainly divided into shotgun noise and thermal noise.     RF Attenuator is a kind of important fiber optics passive device, which is an indispensable device in optical fiber CATV.It is well known that when two segments of optical fiber are connected, considerable alignment accuracy must be achieved in order for the optical signal to be transmitted with little loss.Conversely, if the optical fiber alignment accuracy is adjusted appropriately, the attenuation can be controlled.According to this principle, the displacement optical attenuation plate is intended to make the optical fiber in the docking, a certain dislocation.The light energy is lost to control the attenuation.     An amplifier is a device for amplifying the voltage or power of an input signal. It consists of a tube or transistor, a power transformer, and other electrical components.Application in communication, broadcasting, radar, television, automatic control and other devices.Its function is to amplify the power of the high-frequency modulated wave signal to meet the transmission power requirements, and then radiate it to the space through the antenna, so as to ensure that the receiver in a certain area can receive a satisfactory signal level and not interfere with the communication of adjacent channels.     Amplifier product performance: a certain power output, and small misalignment and drift, high input impedance and low output impedance, as well as high sensitivity, stability and reliability, small size, light weight, less power consumption.
